3 Phase kWhmeter via CT 1A or 5A 4M AGARDIO MID ECA300C

EAN-Nr.
3250612231263
Packaging
1 piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

3 Phase kWhmeter via CT 1A or 5A 4M AGARDIO MID

ECA300C

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products
Download the sheet

Complete your system

Optional accessories

  • Accessories/spare parts for bus system 6 products available

Compatible products

  • Referenced by 1 products available

Complete your system

  • Accessories/spare parts for bus system
  • HTG484H

    RJ45-RJ45 Modbus cable length 5 m
    0.00 €  / *
  • HTG482H

    RJ45-RJ45 Modbus cable length 2 m
    0.00 €  / *
  • HTG481H

    RJ45-RJ45 Modbus cable length 1 m
    0.00 €  / *
  • HTG480H

    RJ45-RJ45 Modbus cable length 20 cm
    0.00 €  / *
  • HTG474H

    RJ45-RJ45 with earth Modbus cable length 5 m
    0.00 €  / *
  • HTG472H

    RJ45-RJ45 with earth Modbus cable length 2 m
    0.00 €  / *

Referenced by

  • TXF121

    KNX interface for electrical energy meters
    0.00 €  / *

Technical characteristics

Architecture
  • Bus system
    MODBUS
  • Type of pole
    3P+N
Electric current
  • Rated current
    5 A
  • Maximum measuring circuit current
    6 A
Capacity
  • Number of modules
    4
Connectivity
  • Connectivity type
    ModBus RS-485 3 wires
Dimensions
  • Height
    90 mm
  • Width
    72 mm
  • Depth
    60 mm
Equipment
  • Type of pulse generator
    Optical
Compatibility
  • Suitable for
    Purchase/supply
Connection
  • Connector/plug type Bus system
    RJ45
Installation, mounting
  • Nominal tightening torque
    1 - 1 Nm
  • Mounting on
    DIN rail
Mechanical features
  • Nominal tightening torque digital terminal
    0.50 - 0.50 Nm
Measurement
  • Measuring system
    Measurement transformer
  • Type of measuring instrument
    Electronic
  • Current measurement range
    0.01 - 6.0 A
  • Measurement range voltage Ph-N
    92 - 276 V
  • Measurement range voltage Ph-Ph
    160 - 480 V
  • Frequency measuring range
    45 - 65 Hz
Power supply
  • Number of phases for power supply
    4
Functions
  • Accuracy class
    B
  • Tariff type
    T1...T2 (230V AC)/T1...T8 Modbus
  • Is calibrated
    Yes
Safety
  • Ingress Protection (IP) class
    IP20
Use conditions
  • Operating temperature
    -25 - 55 °C
  • Storage/transport temperature
    -25 - 70 °C
Power
  • Power consumption VA
    2 VA
  • Total power loss under IN
    0.60 W
Frequency
  • Frequency
    50 - 50 Hz

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

Hager REACH declaration ECA300C
PDF
Hager RoHS report ECA300C
PDF

Downloads

  • Image ECA300C | Hager

    Product Image ECA300C

  • Product datasheet

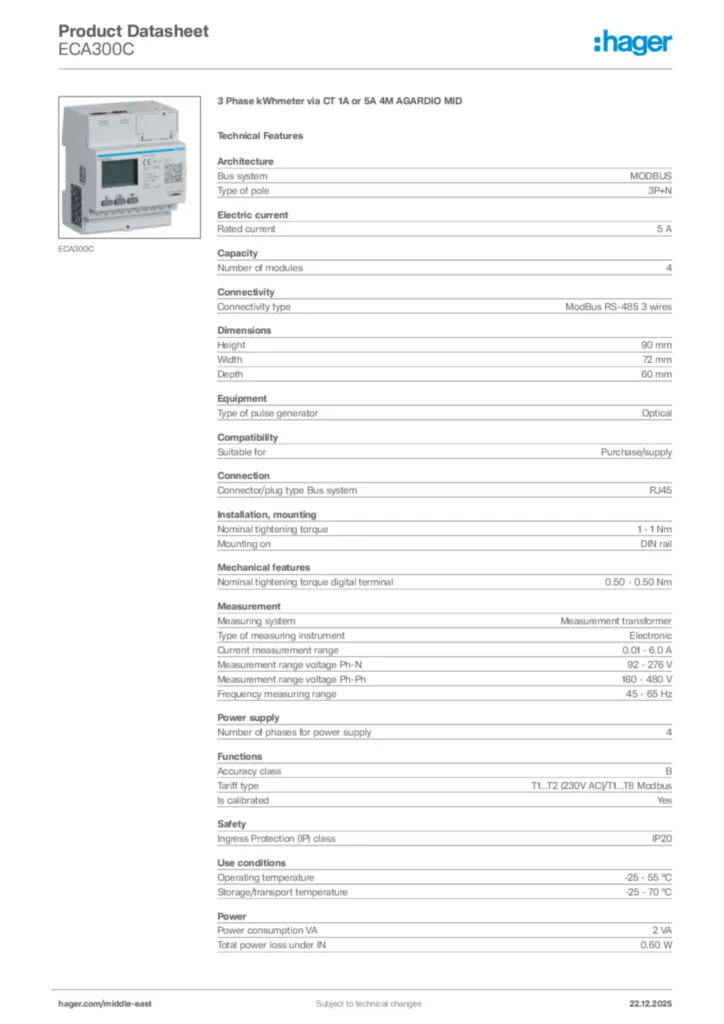

    Image Hager Product data sheet ECA300C | Hager

    Hager Product data sheet ECA300C

    3 Phase kWhmeter via CT 1A or 5A 4M AGARDIO MID

    PDF

  • Product attachment

    Image Modbus table Summary V1 14 | Hager

    Modbus table Summary V1 14

    Product attachment International 2022-10-04

    PDF
    836,11 kB
    Image Product attachment International 2024-04-22 | Hager

    Product attachment International 2024-04-22

    XLS
    177,00 kB

  • Manual

    Image Installer leaflet ECA300C | Hager

    Installer leaflet ECA300C

    Manual de-DE, en-GB 2024-01-29

    PDF
    3,08 MB
    Image Installer leaflet ECA300C | Hager

    Installer leaflet ECA300C

    Manual pl-PL, ar 2024-01-31

    PDF
    3,19 MB

  • Declaration of conformity

    Image EU Declaration of Conformity | Hager

    EU Declaration of Conformity

    Declaration of conformity en-GB 2024-04-15

    PDF
    465,71 kB
