    EAN-Nr.
    3250612231294
    Packaging
    1 piece
    • Energy meters

    1 Phase kWhmeter direct 40A 1M MBUS MID ECM140D

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    1 Phase kWhmeter direct 40A 1M MBUS MID

    ECM140D

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Optional accessories

    • Energy manager 1 products available

    Complete your system

    • Energy manager
    • TXF121

      KNX interface for electrical energy meters
      0.00 €  / *

    Technical characteristics

    Architecture
    • Bus system
      M-BUS
    • Type of pole
      1P+N
    Electric current
    • Rated current
      40 A
    • Maximum measuring circuit current
      40 A
    Capacity
    • Number of modules
      1
    Connectivity
    • Type of connection
      Direct connection
    Dimensions
    • Height
      92 mm
    • Width
      18 mm
    • Depth
      60 mm
    Equipment
    • Type of pulse generator
      Optical
    Compatibility
    • Suitable for
      Purchase/supply
    Connection
    • Cross-section of metering input
      16 - 16 mm²
    • Cross-section of metering output
      16 - 16 mm²
    • Connector/plug type Bus system
      Bus connection terminal
    Installation, mounting
    • Nominal tightening torque
      1 - 1 Nm
    • Mounting on
      DIN rail
    Mechanical features
    • Nominal tightening torque digital terminal
      0.50 - 0.50 Nm
    Measurement
    • Measuring system
      Direct measurement
    • Type of measuring instrument
      Electronic
    • Current measurement range
      0.25 - 40.0 A
    • Measurement range voltage Ph-N
      92 - 276 V
    • Frequency measuring range
      45 - 65 Hz
    Power supply
    • Number of phases for power supply
      1
    Functions
    • Accuracy class
      B
    • Tariff type
      - /T1...T2 M-BUS
    • Is calibrated
      Yes
    Safety
    • Ingress Protection (IP) class
      IP20
    Use conditions
    • Operating temperature
      -25 - 55 °C
    • Storage/transport temperature
      -25 - 70 °C
    Power
    • Power consumption VA
      2 VA
    • Total power loss under IN
      1 W
    Frequency
    • Frequency
      50 - 50 Hz

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    Hager REACH declaration ECM140D
    PDF
    Hager RoHS report ECM140D
    PDF

    Downloads

    • Image ECM140D | Hager

      Product Image ECM140D

    • Product datasheet

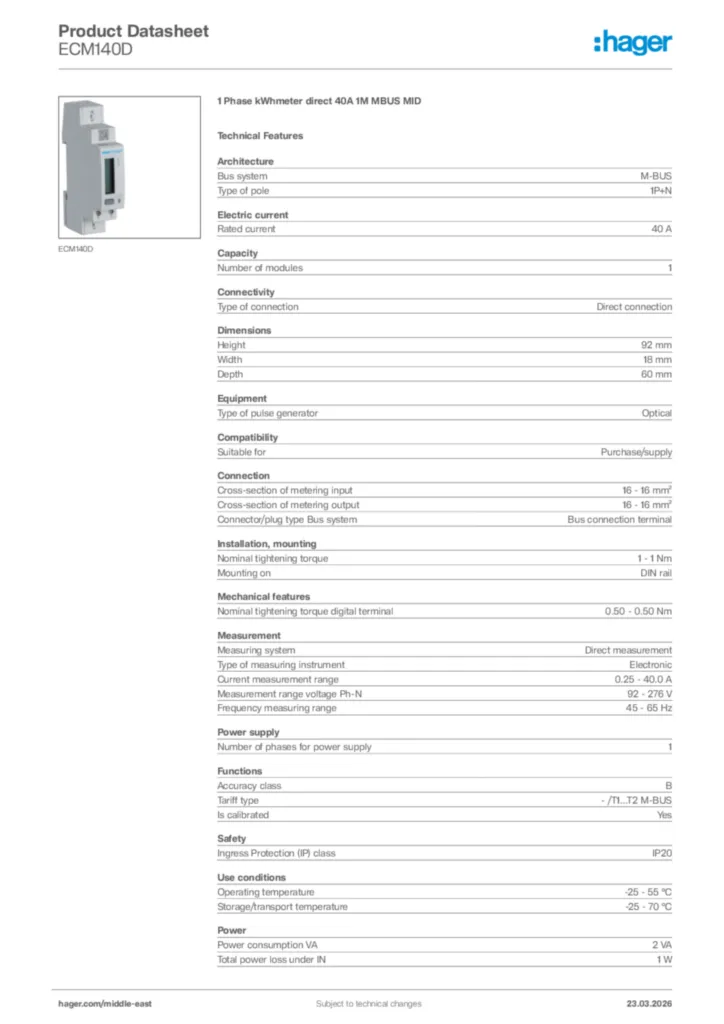

      Image Hager Product data sheet ECM140D | Hager

      Hager Product data sheet ECM140D

      1 Phase kWhmeter direct 40A 1M MBUS MID

      PDF

    • Product attachment

      Image Product attachment International 2020-01-01 | Hager

      Product attachment International 2020-01-01

      XLS
      187,00 kB

    • Manual

      Image Installer Leaflet ECM140D | Hager

      Installer Leaflet ECM140D

      Manual de-DE, en-GB 2024-01-11

      PDF
      2,06 MB
      Image Installer Leaflet ECM140D | Hager

      Installer Leaflet ECM140D

      Manual pl-PL, ar 2024-01-17

      PDF
      2,17 MB

    • Declaration of conformity

      Image EU Declaration of Conformity | Hager

      EU Declaration of Conformity

      Declaration of conformity en-GB 2024-04-15

      PDF
      451,44 kB
