SCHUKO sock. outl., enh. cont. prot., screw term, Int. module inserts, grey matt 941952506
EAN-Nr.
4011334240600
Packaging
10 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See all (11)
Optional accessories
-
Accessories/spare parts for domestic switching devices 1 products available
Compatible products
-
Referenced by 3 products available
Mandatory accessories
-
9191501Contact protection box 2gang, Integro module inserts, grey
-
9191502Contact protection box 2gang, Integro module inserts, grey
-
91820Contact protection box Ø 45 mm, Integro module inserts, grey
-
91933Contact protection box 3gang, Integro module inserts, grey
-
918282599Integro Flow-Frame 1-Gang with Hinged Cover, Imprint IP44, Polar White Glossy
-
918282597Integro Flow-Frame 1-Gang with Hinged Cover, Imprint IP44, Grey Glossy
-
918282595Integro Flow-Frame 1-Gang with Hinged Cover, Imprint IP44, Anthracite Matt
-
918282591Integro Flow-Frame 1-Gang with Hinged Cover, Imprint IP44, Brown Matt
-
918282568Integro Flow-Frame 1-Gang with Hinged Cover, Imprint IP44, Chrome Matt Lacquered
-
91887Contact protection box Ø 49 mm, Integro module inserts, grey
-
91883Contact protection box Ø 49 mm, deep, Integro module inserts, grey
Technical characteristics
Electric current
-
Rated current16 A
Voltage
-
Rated voltage250 V
-
Nominal voltage250 - 250 V
Frequency
-
Frequency50 - 50 Hz
Materials
-
ColourGrey
-
RAL code7038
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentUntreated
Dimensions
-
Height55.50 mm
-
Width55.50 mm
-
Number of units1
-
Built-in depth flush-mounted boxes32 mm
Installation, mounting
-
Mounting onFlush mounting
Connectivity
-
Type of connectionScrew terminal
-
Mounting typeBuilt in installation, Screw mounting
Equipment
-
Connector/plug type socket outletSCHUKO
-
Rotated central insertNo
-
With hinged lidNo
-
With round protective earth pinNo
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldNo
Capacity
-
Number of modules1
Safety
-
With enhanced contact protectionYes
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP20
Functions
-
With orientation lightingNo
-
With function lightingNo
-
Related Systemsintegro
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

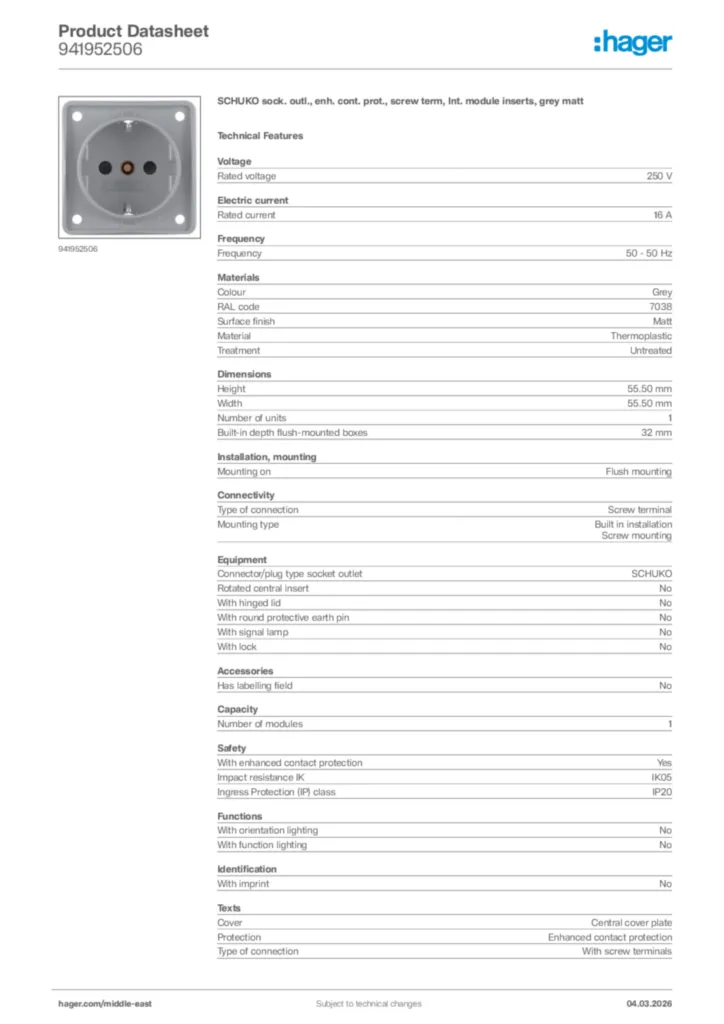

Product datasheet
Hager Product data sheet 941952506
SCHUKO sock. outl., enh. cont. prot., screw term, Int. module inserts, grey matt
PDF -
Declaration of conformity
UKCA-Declaration of conformity
76_02_12_2021
PDF226,58 kB
More documentation
