Universal Push button Dimmer 1gang (R,L, C, LED) 85421100
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See all (113)
Compatible products
-
Referenced by 608 products available
Mandatory accessories
-
85342229IR motion det. comf 2.2 m, Q.x, p. white velvety
-
85141177Button 1gang, K.5, al., matt, lacq.
-
85141175Button 1gang, K.1, ant. matt, lacq.
-
85141179Button 1gang, K.1, p. white glossy
-
85141124Button 1gang, Q.x, alu velvet, lacquered
-
85141126Button 1gang, Q.x, ant. velvety, lacq.
-
85141129Button 1gang, Q.x, p. white velvety
-
85141189Button 1gang, S.1/B.3/B.7, p. white glossy
-
85141182Button 1gang, S.1, white glossy
-
85342273IR motion detector comfort 2.2 m, K.5, stainless steel matt, lacquered
-
85342277IR motion det. comf 2.2 m, K.5, al., matt, lacq.
-
85342275IR motion detector comfort 2.2 m, K.1, anthracite matt, lacquered
-
85342279IR motion detector comfort 2.2 m, K.1, polar white glossy
-
85342224IR motion detector comfort 2.2 m, Q.x alu velvety, lacquered
-
85342226IR motion det. comf 2.2 m, Q.x, ant. velvety, lacq.
-
85342139Motion det. 2.2 m, R.1/R.3/1930/R.cl., p. white glossy
-
85648131KNX radio button 4gang quicklink, R.1/R.3/1930/R.cl., black glossy
-
85648139KNX radio button 4gang quicklink, R.1/R.3/1930/R.cl., p. white glossy
-
85342131Motion det. 2.2 m, R.1/R.3/1930/R.cl., black glossy
-
85141188Button 1gang, S.1/B.3/B.7, p. white, matt, plastic
Referenced by
-
10239959Frame 3gang hor., lab. field, S.1, al. matt
-
10119959Frame 1gang, lab. field, S.1, al. matt
-
10119969Frame 1gang, lab. field, S.1, ant., matt
-
10128912Frame 2gang vert., lab. field, S.1, white glossy
-
10128919Frame 2gang vert., lab. field, S.1, p. white glossy
-
10129919Frame 2gang vert., lab. field, S.1, p. white, matt, plastic
-
10129959Frame 2gang vert., lab. field, S.1, al. matt
-
10129969Frame 2gang vert., lab. field, S.1, ant., matt
-
10138912Frame 3gang vert., lab. field, S.1, white glossy
-
10138919Frame 3gang vert., lab. field, S.1, p. white glossy
-
10139919Frame 3gang vert., lab. field, S.1, p. white, matt, plastic
-
10228912Frame 2gang hor., lab. field, S.1, white glossy
-
10228919Frame 2gang hor., lab. field, S.1, p. white glossy
-
10229919Frame 2gang hor., lab. field, S.1, p. white, matt, plastic
-
10229959Frame 2gang hor., lab. field, S.1, al. matt
-
10229969Frame 2gang hor., lab. field, S.1, ant., matt
-
10238912Frame 3gang hor., lab. field, S.1, white glossy
-
10238919Frame 3gang hor., lab. field, S.1, p. white glossy
-
10239919Frame 3gang hor., lab. field, S.1, p. white, matt, plastic
-
10239969Frame 3gang hor., lab. field, S.1, ant., matt
Technical characteristics
Voltage
-
Operating voltage230 - 230 V
Frequency
-
Frequency50 - 60 Hz
Materials
-
MaterialMetal, Plastic
Dimensions
-
Built-in depth32 mm
-
Height71 mm
-
Width71 mm
-
Depth33.20 mm
Architecture
-
Control/operation elementSingle push button
Power
-
Power consumption standby0.30 W
Lighting
-
Dimmable 230 V LED lamp3 - 120 W
-
LED lamp power250 W
Use conditions
-
Operating temperature-5 - 45 °C
Capacity
-
Number of modules0
Texts
-
Dimming principleAutomatic setting of load-dependent switching principle (autodetect process)
-
FuseShort-circuit and overload-proof (electronic fuse)
-
Installation modeWith spreader claws
-
Type of connectionWith screw terminals
-
Extension unit inputWithout 230 V extension unit inputs
-
Operation and controlNo Bluetooth interface
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

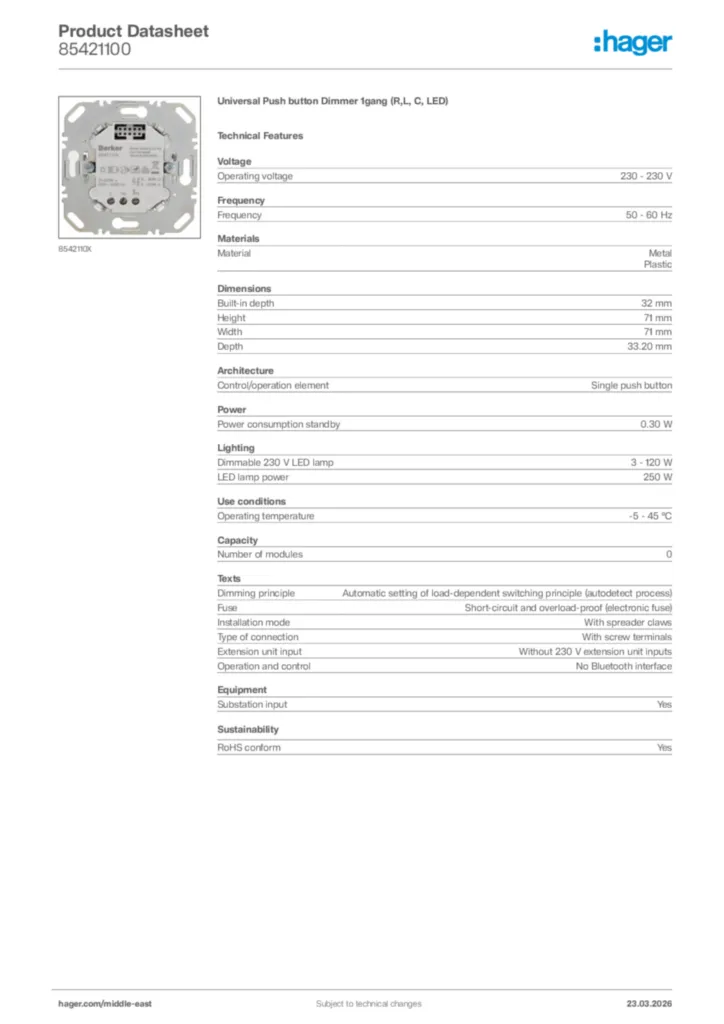

Product datasheet
Hager Product data sheet 85421100
Universal Push button Dimmer 1gang (R,L, C, LED)
PDF -
Installation manual
Manual for 854211XX-854212XX-854221XX - Universal push-button dimmer 1-/2gang (EN-NL, 2021-07)
Installation manual en-GB, nl-NL 2021-04-20
PDF1,91 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-12-16
PDF168,45 kB
Declaration of Conformity
Declaration of conformity International 2021-09-17
PDF296,97 kB
Declaration of Conformity
Declaration of conformity International 2021-09-17
PDF292,67 kB
Declaration of conformity en-GB, de-DE 2021-11-18
PDF272,57 kB
