IR motion detector comfort 1.1 m, S.1, white glossy 85341282
EAN-Nr.
4011334373636
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See all (6)
Compatible products
-
Referenced by 179 products available
Mandatory accessories
-
85320100Extension unit for motion det., electronics
-
85121200Relay insert, electronics
-
85421700DALI/DSI control insert, electronics
-
85421100Universal Push button Dimmer 1gang (R, L, C, LED)
-
85421200Universal Push button Dimmer Comfort 1gang (R, L, C, LED)
-
85121100Universal - Switch Insert 1gang
Referenced by
-
10123004Frame 2gang, B.3, al./ant. matt, al. anodised
-
10133016Frame 3gang, B.3, al. gold/ant. matt, al. anodised
-
10133005Frame 3gang, B.3, al. black/ant. matt, al. anodised
-
10133004Frame 3gang, B.3, al./ant. matt, al. anodised
-
10133001Frame 3gang, B.3, al. brown/ant. matt, al. anodised
-
10123904Frame 2gang, B.3, al./p. white matt, al. anodised
-
10123046Frame 2gang, B.3, al. gold/p. white matt, al. anodised
-
10123025Frame 2gang, B.3, al. black/p. white matt, al. anodised
-
10123021Frame 2gang, B.3, al. brown/p. white matt, al. anodised
-
10123016Frame 2gang, B.3, al. gold/ant. matt, al. anodised
-
10123005Frame 2gang, B.3, al. black/ant. matt, al. anodised
-
10113016Frame 1gang, B.3, al. gold/ant. matt, al. anodised
-
10159939Frame 5gang, S.1, al. matt
-
10159949Frame 5gang, S.1, ant., matt
-
10113001Frame 1gang, B.3, al. brown/ant. matt, al. anodised
-
10113004Frame 1gang, B.3, al./ant. matt, al. anodised
-
10113005Frame 1gang, B.3, al. black/ant. matt, al. anodised
-
10113046Frame 1gang, B.3, al. gold/p. white matt, al. anodised
-
10123001Frame 2gang, B.3, al. brown/ant. matt, al. anodised
-
10113904Frame 1gang, B.3, al./p. white matt, al. anodised
Technical characteristics
Dimensions
-
Installation height1.10 - 1.10 m
-
Assembling height34 mm
Detection
-
Type of sensorMovement detector
-
Detection diameter on floor0 - 0 m
-
Detection angle adjustable45 - 90 °
Materials
-
ColourWhite
-
Surface finishGlossy
-
TreatmentUntreated
-
MaterialThermoplastic
Reach distance
-
Max. transmission range frontally12 m
-
Max. transmission range sideways8 m
Lighting
-
Response brightness adjustable5 - 1,000 lx
Settings
-
Response brightness adjustableYes
Use conditions
-
Operating temperature-5 - 45 °C
Safety
-
Ingress Protection (IP) classIP20
Texts
-
FunctionWith memory function for presence simulation, Teach function for response brightness via button, With keylock, Party function for switching on for 2 hours
-
ProtectionWith dismantling protection
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

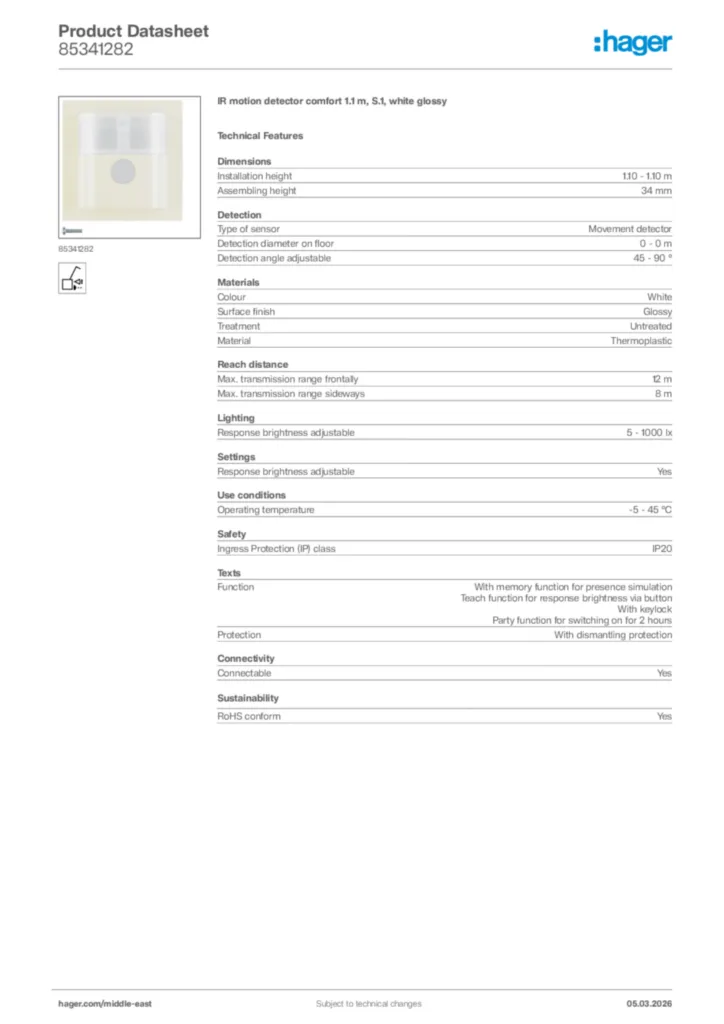

Product datasheet
Hager Product data sheet 85341282
IR motion detector comfort 1.1 m, S.1, white glossy
PDF -
Installation manual
Manual for 8534xx - IR motion detector comfort (EN, 2022-04)
Installation manual en-GB 2022-04-28
PDF1,89 MB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-02-15
PDF1,01 MB
Declaration of Conformity
Declaration of conformity International 2021-02-15
PDF1,01 MB
