Motion det. 1.1 m, Q.x, p. white velvety 85341129
EAN-Nr.
4011334373841
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See all (6)
Compatible products
-
Referenced by 148 products available
Mandatory accessories
-
85320100Extension unit for motion det., electronics
-
85121200Relay insert, electronics
-
85421700DALI/DSI control insert, electronics
-
85421100Universal Push button Dimmer 1gang (R, L, C, LED)
-
85421200Universal Push button Dimmer Comfort 1gang (R, L, C, LED)
-
85121100Universal - Switch Insert 1gang
Referenced by
-
10116014Frame 1gang with labelling field Q.1 alu velvety, lacquered
-
10156076Frame 5gang, glass black
-
10146076Frame 4gang, glass black
-
10136076Frame 3gang, glass black
-
10156079Frame 5gang, glass polarwhite
-
10146079Frame 4gang, glass polarwhite
-
10136079Frame 3gang R.7 glass, polar white
-
10156094Frame 5gang Q.3 alu velvety, lacquered
-
10156096Frame 5gang, Q.3, ant. velvety, lacq.
-
10156099Frame 5gang, Q.3, p. white velvety
-
10256014Frame 5gang with labelling field horizontal Q.1 alu velvety, lacquered
-
10246014Frame 4gang with labelling field horizontal Q.1 alu velvety, lacquered
-
10236014Frame 3gang with labelling field horizontal Q.1 alu velvety, lacquered
-
10226014Frame 2gang with labelling field horizontal Q.1 alu velvety, lacquered
-
10156014Frame 5gang with labelling field vertical Q.1 alu velvety, lacquered
-
10146014Frame 4gang with labelling field vertical Q.1 alu velvety, lacquered
-
10136014Frame 3gang with labelling field vertical Q.1 alu velvety, lacquered
-
10126014Frame 2gang with labelling field vertical Q.1 alu velvety, lacquered
-
10146019Frame 4gang vert., lab. field, Q.1, p. white velvety
-
10126019Frame 2gang vert., lab. field, Q.1, p. white velvety
Technical characteristics
Dimensions
-
Installation height1.10 - 1.10 m
-
Assembling height34 mm
Detection
-
Type of sensorMovement detector
-
Detection diameter on floor0 - 0 m
-
Detection angle adjustable45 - 90 °
Materials
-
ColourPolar white
-
Surface finishVelvety
-
TreatmentUntreated
-
MaterialThermoplastic
Reach distance
-
Max. transmission range frontally12 m
-
Max. transmission range sideways8 m
Lighting
-
Response brightness adjustable5 - 1,000 lx
Settings
-
Response brightness adjustableYes
Use conditions
-
Operating temperature-5 - 45 °C
Safety
-
Ingress Protection (IP) classIP20
Texts
-
FunctionWith memory function for presence simulation, Teach function for response brightness via button, With keylock, Party function for switching on for 2 hours
-
ProtectionWith dismantling protection
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

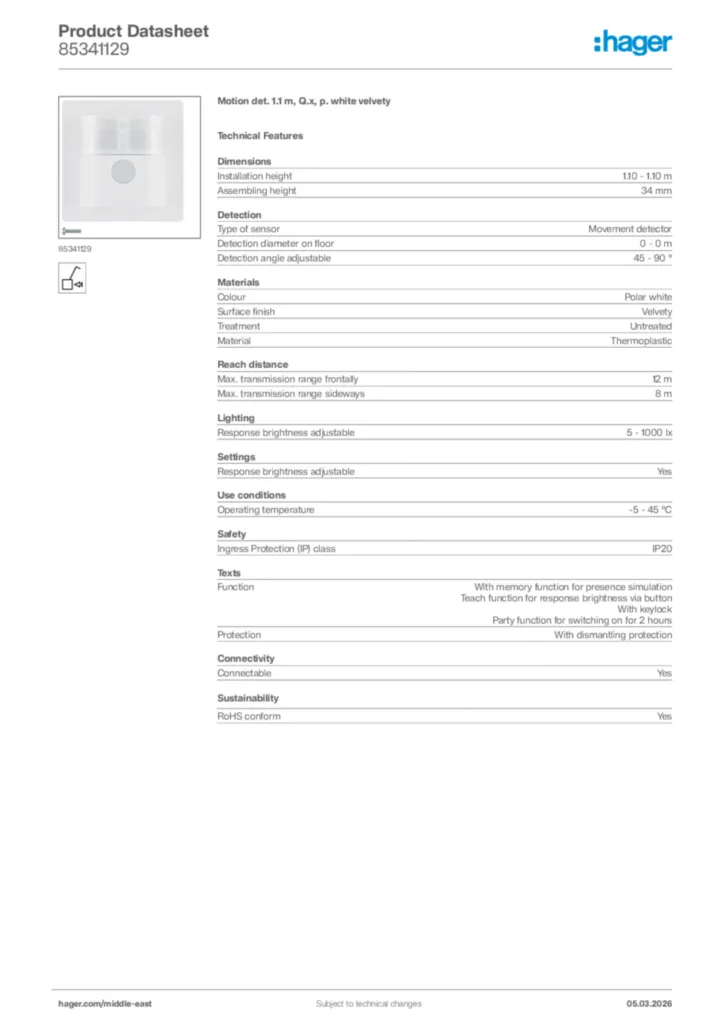

Product datasheet
Hager Product data sheet 85341129
Motion det. 1.1 m, Q.x, p. white velvety
PDF -
Installation manual
Manual for 8534xx - Motion detector (EN, 2022-04)
Installation manual en-GB 2022-04-28
PDF751,25 kB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-02-15
PDF1,01 MB
Declaration of Conformity
Declaration of conformity International 2021-02-15
PDF1,01 MB
More documentation
