Push-button 4g, lab. field,RGB LED, int. temp.sensor, KNX-S.1/B.3/B.7,f.wh.p.wh. 80164780
EAN-Nr.
3250617153720
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See all (12)
Compatible products
-
Referenced by 11 products available
Mandatory accessories
-
13099909Frame l. cut-out, S.1, p. white, matt, plastic
-
13098989Frame l. cut-out, S.1, p. white glossy
-
13098982Frame l. cut-out, S.1, white glossy
-
13096919Frame l. cut-out, B.7, p. white matt, lacq.
-
13096914Frame l. cut-out, B.7, al./p. white matt, al. anodised
-
13096909Glass frame l. cut-out, B.7, p. white/p. white matt
-
13093609Frame l. cut-out, B.7, stainless steel/p. white matt, metal brushed
-
13093046Frame l. cut-out, B.3, al. gold/p. white matt, al. anodised
-
13093025Frame l. cut-out, B.3, al. black/p. white matt, al. anodised
-
13093904Frame l. cut-out, B.3, al./p. white matt, al. anodised
-
80040011Bus coupling unit flush-mtd, ext. temp. sensor, KNX
-
80040001Bus coupling unit flush-mtd, ext. temp. sensor, KNX
Referenced by
-
13099909
Frame l. cut-out, S.1, p. white, matt, plastic
-
13098989
Frame l. cut-out, S.1, p. white glossy
-
13098982
Frame l. cut-out, S.1, white glossy
-
13096919
Frame l. cut-out, B.7, p. white matt, lacq.
-
13096914
Frame l. cut-out, B.7, al./p. white matt, al. anodised
-
13096909
Glass frame l. cut-out, B.7, p. white/p. white matt
-
13093609
Frame l. cut-out, B.7, stainless steel/p. white matt, metal brushed
-
13093046
Frame l. cut-out, B.3, al. gold/p. white matt, al. anodised
-
13093025
Frame l. cut-out, B.3, al. black/p. white matt, al. anodised
-
13093904
Frame l. cut-out, B.3, al./p. white matt, al. anodised
-
80040001
Bus coupling unit flush-mtd, ext. temp. sensor, KNX
Technical characteristics
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-5 - 45 °C
Electric current
-
Bus current consumption data transfer20 mA
Functions
-
With room temperature controllerNo
Dimensions
-
Height55.30 mm
-
Width55.80 mm
-
Depth13.85 mm
Equipment
-
Number of actuation points8
Controls and indicators
-
With LED indicationYes
Materials
-
ColourWhite
-
RAL code1013
-
MaterialThermoplastic
-
Surface finishGlossy
Accessories
-
Has labelling fieldYes
Screen
-
With displayNo
Texts
-
FunctionFunction for manual interruption of automatic functions already triggered
-
ProtectionWith dismantling protection
-
TemperatureIntegrated temperature sensor with output of the measured values via object
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

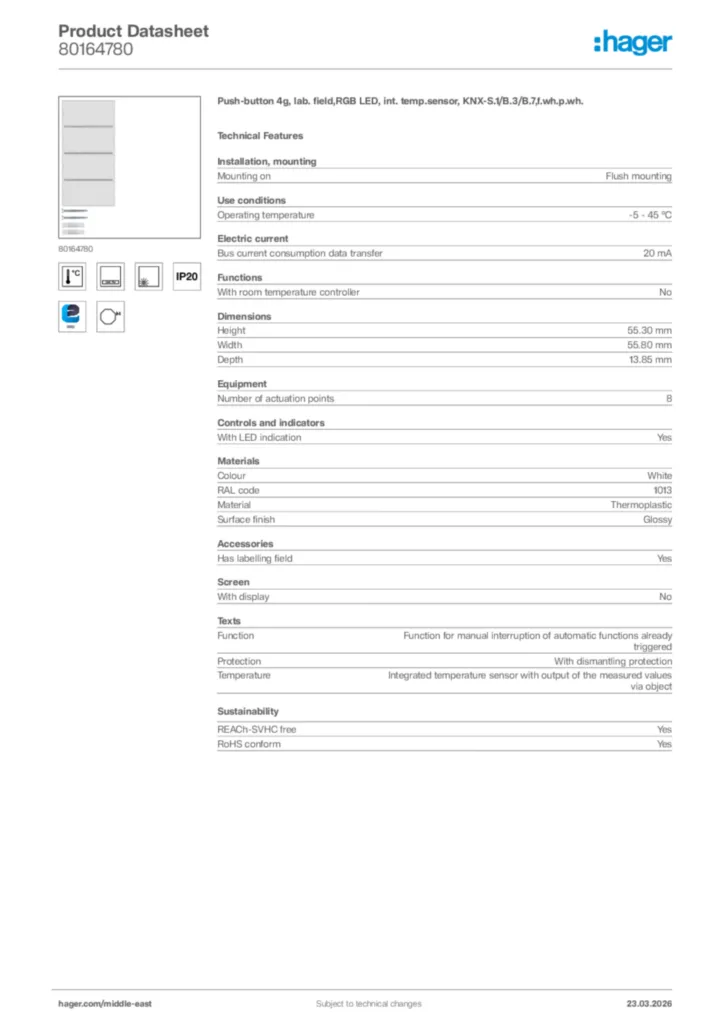

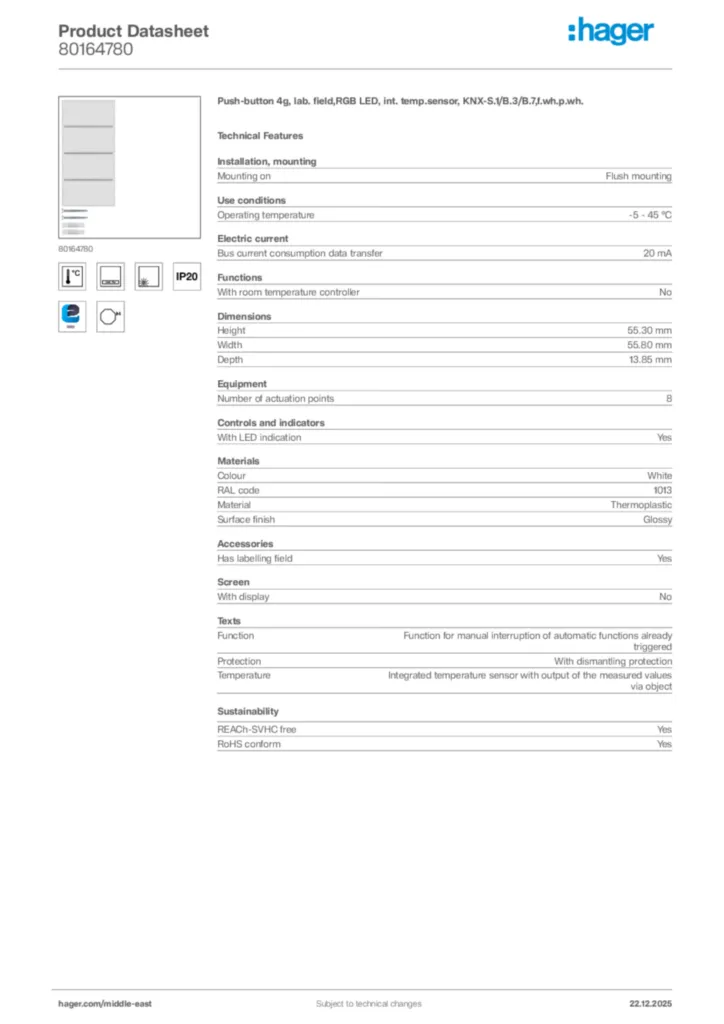

Product datasheet
Hager Product data sheet 80164780
Push-button 4g, lab. field,RGB LED, int. temp.sensor, KNX-S.1/B.3/B.7,f.wh.p.wh.
PDF -
Installation manual
Installation manual en-GB, tr-TR 2022-11-25
PDF1,44 MB -
KNX product database
ETS4-ETS5 - KNX Database for KNX Push Button xgang
KNX product database International 2020-01-01
KNXPROD1,08 MB -
Application Guide
Application description EASY for 8014X3XX, 8016X7XX, 8016X8XX - KNX Push button xgang (EN, 2022-01), easy link
Application Guide en-GB 2022-01-17
PDF3,00 MB
Application description EASY for 8014X3XX, 8016X7XX, 8016X8XX - KNX Push button xgang (EN, 2022-01), easy link
Application Guide en-GB 2022-01-17
PDF3,00 MB
Application description ETS for 8014X3XX-8016X7XX-8016X8XX - KNX Push Button (EN, 2021-10)
Application Guide en-GB 2021-10-12
PDF3,20 MB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF307,84 kB
