Push-button 3gang, + RGB LED, internal temp. sensor, KNX - Q.1/Q.3, ant. 80143326
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
Compatible products
-
Referenced by 131 products available
Referenced by
-
10136014Frame 3gang with labelling field vertical Q.1 alu velvety, lacquered
-
10156076Frame 5gang, glass black
-
10146076Frame 4gang, glass black
-
10136076Frame 3gang, glass black
-
10156079Frame 5gang, glass polarwhite
-
10146079Frame 4gang, glass polarwhite
-
10136079Frame 3gang R.7 glass, polar white
-
10156094Frame 5gang Q.3 alu velvety, lacquered
-
10156096Frame 5gang, Q.3, ant. velvety, lacq.
-
10156099Frame 5gang, Q.3, p. white velvety
-
10256014Frame 5gang with labelling field horizontal Q.1 alu velvety, lacquered
-
10246014Frame 4gang with labelling field horizontal Q.1 alu velvety, lacquered
-
10236014Frame 3gang with labelling field horizontal Q.1 alu velvety, lacquered
-
10226014Frame 2gang with labelling field horizontal Q.1 alu velvety, lacquered
-
10156014Frame 5gang with labelling field vertical Q.1 alu velvety, lacquered
-
10146014Frame 4gang with labelling field vertical Q.1 alu velvety, lacquered
-
10226016Frame 2gang hor., lab. field, Q.1, ant. velvety, lacq.
-
10116016Frame 1gang, lab. field, Q.1, ant. velvety, lacq.
-
10156019Frame 5gang vert., lab. field, Q.1, p. white velvety
-
10236016Frame 3gang hor., lab. field, Q.1, ant. velvety, lacq.
Technical characteristics
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-5 - 45 °C
Electric current
-
Bus current consumption data transfer20 mA
Functions
-
With room temperature controllerYes
Dimensions
-
Height58.70 mm
-
Width58.70 mm
-
Depth33.70 mm
Equipment
-
Number of actuation points6
Controls and indicators
-
With LED indicationYes
Materials
-
ColourAnthracite
-
RAL code7021
-
MaterialThermoplastic
-
Surface finishVelvety
Accessories
-
Has labelling fieldYes
Screen
-
With displayNo
Texts
-
FunctionFunction for manual interruption of automatic functions already triggered
-
ProtectionWith dismantling protection
-
TemperatureIntegrated temperature sensor with output of the measured values via object
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

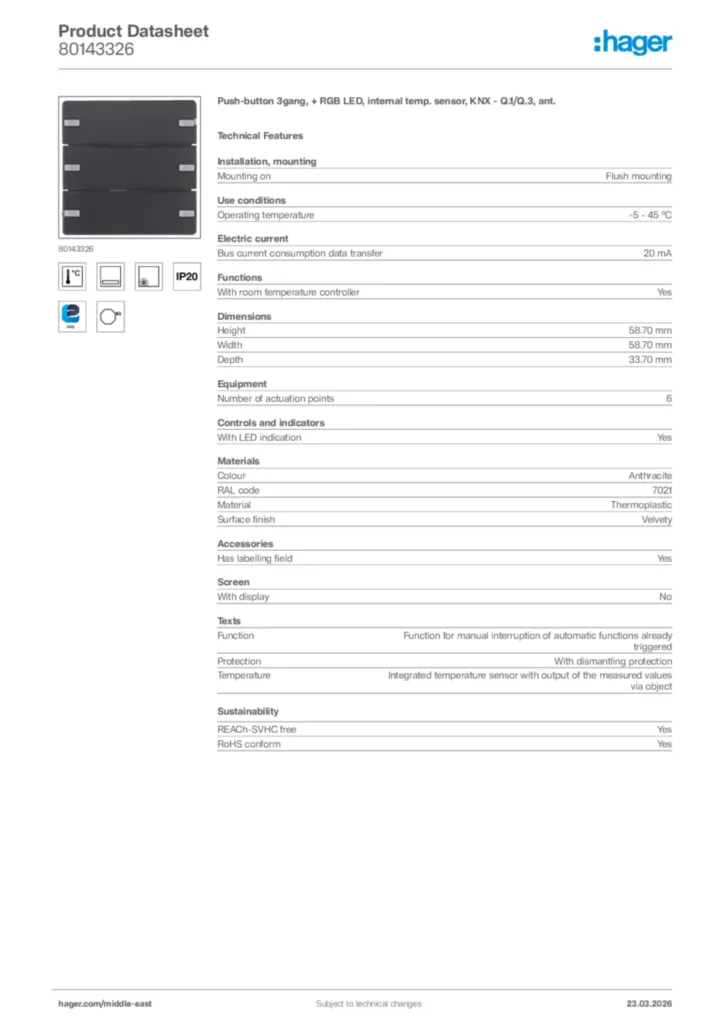

Hager Product data sheet 80143326
Push-button 3gang, + RGB LED, internal temp. sensor, KNX - Q.1/Q.3, ant.
PDF -
KNX product database
ETS4-ETS5 - KNX Database for KNX Push Button xgang
KNX product database International 2020-01-01
KNXPROD1,08 MB -
Application Guide
Application description EASY for 8014X3XX, 8016X7XX, 8016X8XX - KNX Push button xgang (EN, 2022-01), easy link
Application Guide en-GB 2022-01-17
PDF3,00 MB
Application description EASY for 8014X3XX, 8016X7XX, 8016X8XX - KNX Push button xgang (EN, 2022-01), easy link
Application Guide en-GB 2022-01-17
PDF3,00 MB
Application description ETS for 8014X3XX-8016X7XX-8016X8XX - KNX Push Button (EN, 2021-10)
Application Guide en-GB 2021-10-12
PDF3,20 MB -
Declaration of conformity
Declaration of conformity International 2022-11-22
PDF323,59 kB
Declaration of conformity International 2023-02-22
PDF318,66 kB
Declaration of conformity International 2023-02-22
PDF245,83 kB
EU Declaration of Conformity
Declaration of conformity en-US 2026-01-28
PDF432,75 kB
More documentation
