Push-button 2gang, + RGB LED, internal temp. sensor, KNX - K.1, p. white 80162770
EAN-Nr.
3250617153546
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
Compatible products
-
Referenced by 18 products available
Referenced by
-
13737006Frame 3gang hor., K.1, ant. matt, lacq.
-
13137009Frame 1gang, K.1, p. white glossy
-
13637009Frame 2gang hor., K.1, p. white glossy
-
80040001Bus coupling unit flush-mtd, ext. temp. sensor, KNX
-
13537006Frame 5gang vert., K.1, ant. matt, lacq.
-
13437006Frame 4gang vert., K.1, ant. matt, lacq.
-
13337006Frame 3gang vert., K.1, ant. matt, lacq.
-
13937006Frame 5gang hor., K.1, ant. matt, lacq.
-
13837006Frame 4gang hor., K.1, ant. matt, lacq.
-
13237009Frame 2gang vert., K.1, p. white glossy
-
13637006Frame 2gang hor., K.1, ant. matt, lacq.
-
13537009Frame 5gang vert., K.1, p. white glossy
-
13437009Frame 4gang vert., K.1, p. white glossy
-
13337009Frame 3gang vert., K.1, p. white glossy
-
13937009Frame 5gang hor., K.1, p. white glossy
-
13837009Frame 4gang hor., K.1, p. white glossy
-
13737009Frame 3gang hor., K.1, p. white glossy
-
13237006Frame 2gang vert., K.1, ant. matt, lacq.
Technical characteristics
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-5 - 45 °C
Electric current
-
Bus current consumption data transfer20 mA
Functions
-
With room temperature controllerYes
Dimensions
-
Height25 mm
-
Width66.80 mm
-
Depth14.35 mm
Equipment
-
Number of actuation points4
Controls and indicators
-
With LED indicationYes
Materials
-
ColourPolar white
-
RAL code9010
-
MaterialThermoplastic
-
Surface finishGlossy
Accessories
-
Has labelling fieldYes
Screen
-
With displayNo
Texts
-
FunctionFunction for manual interruption of automatic functions already triggered
-
ProtectionWith dismantling protection
-
TemperatureIntegrated temperature sensor with output of the measured values via object
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

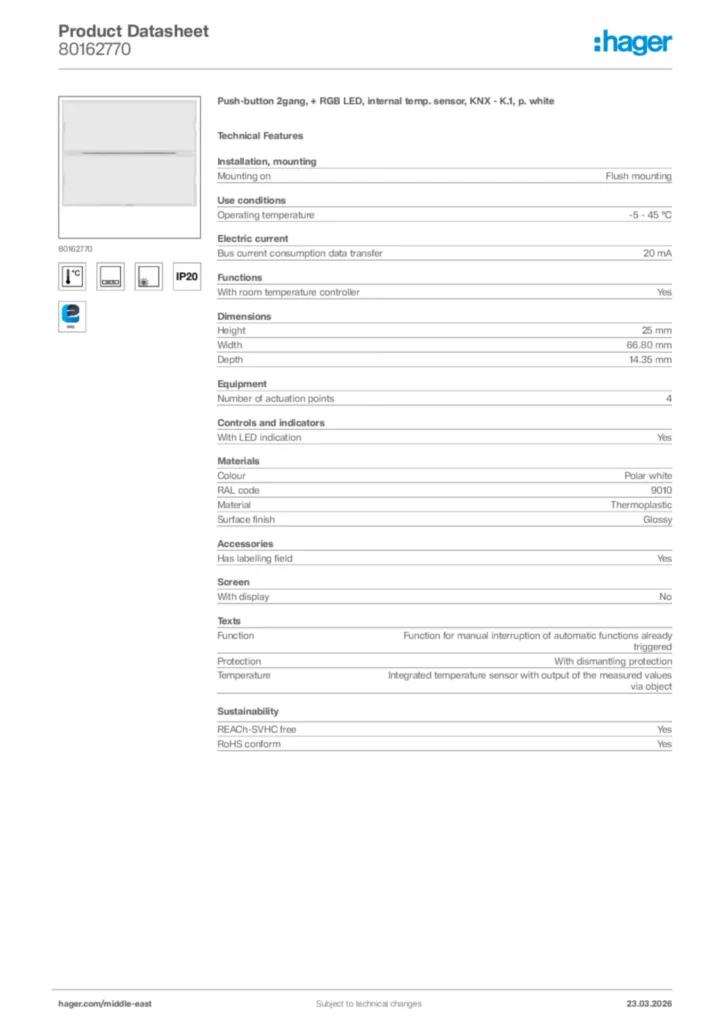

Product datasheet
Hager Product data sheet 80162770
Push-button 2gang, + RGB LED, internal temp. sensor, KNX - K.1, p. white
PDF -
KNX product database
ETS4-ETS5 - KNX Database for KNX Push Button xgang
KNX product database International 2020-01-01
KNXPROD1,08 MB -
Application Guide
Application description EASY for 8014X3XX, 8016X7XX, 8016X8XX - KNX Push button xgang (EN, 2022-01), easy link
Application Guide en-GB 2022-01-17
PDF3,00 MB
Application description EASY for 8014X3XX, 8016X7XX, 8016X8XX - KNX Push button xgang (EN, 2022-01), easy link
Application Guide en-GB 2022-01-17
PDF3,00 MB
Application description ETS for 8014X3XX-8016X7XX-8016X8XX - KNX Push Button (EN, 2021-10)
Application Guide en-GB 2021-10-12
PDF3,20 MB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF307,84 kB
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF283,25 kB
