Push-button 1gang, RGB LED, int. temp. sensor, KNX-S.1/B.3/B.7, f. ant. + al. 80161785
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
Compatible products
-
Referenced by 153 products available
Referenced by
-
10153004Frame 5gang, B.3, al./ant. matt, al. anodised
-
10123025Frame 2gang, B.3, al. black/p. white matt, al. anodised
-
10123046Frame 2gang, B.3, al. gold/p. white matt, al. anodised
-
10123904Frame 2gang, B.3, al./p. white matt, al. anodised
-
10133001Frame 3gang, B.3, al. brown/ant. matt, al. anodised
-
10133004Frame 3gang, B.3, al./ant. matt, al. anodised
-
10133005Frame 3gang, B.3, al. black/ant. matt, al. anodised
-
10133016Frame 3gang, B.3, al. gold/ant. matt, al. anodised
-
10133025Frame 3gang, B.3, al. black/p. white matt, al. anodised
-
10133046Frame 3gang, B.3, al. gold/p. white matt, al. anodised
-
10133904Frame 3gang, B.3, al./p. white matt, al. anodised
-
10143001Frame 4gang, B.3, al. brown/ant. matt, al. anodised
-
10143004Frame 4gang, B.3, al./ant. matt, al. anodised
-
10143005Frame 4gang, B.3, al. black/ant. matt, al. anodised
-
10143016Frame 4gang, B.3, al. gold/ant. matt, al. anodised
-
10143025Frame 4gang, B.3, al. black/p. white matt, al. anodised
-
10143046Frame 4gang, B.3, al. gold/p. white matt, al. anodised
-
10143904Frame 4gang, B.3, al./p. white matt, al. anodised
-
10153001Frame 5gang, B.3, al. brown/ant. matt, al. anodised
-
10116914Frame 1gang, B.7, al./p. white matt, al. anodised
Technical characteristics
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-5 - 45 °C
Electric current
-
Bus current consumption data transfer20 mA
Functions
-
With room temperature controllerNo
Dimensions
-
Height55.30 mm
-
Width55.80 mm
-
Depth13.85 mm
Equipment
-
Number of actuation points2
Controls and indicators
-
With LED indicationYes
Materials
-
ColourAnthracite
-
RAL code7016, 7021
-
MaterialThermoplastic
-
Surface finishGlossy
Accessories
-
Has labelling fieldYes
Screen
-
With displayNo
Texts
-
FunctionFunction for manual interruption of automatic functions already triggered
-
ProtectionWith dismantling protection
-
TemperatureIntegrated temperature sensor with output of the measured values via object
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

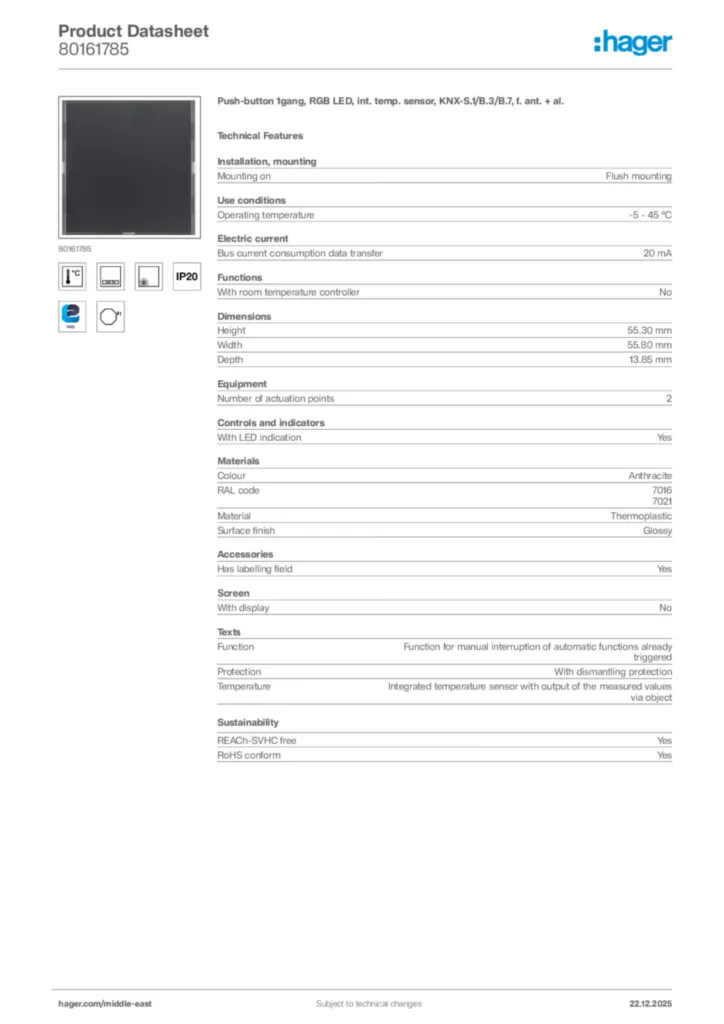

Hager Product data sheet 80161785
Push-button 1gang, RGB LED, int. temp. sensor, KNX-S.1/B.3/B.7, f. ant. + al.
PDF -
KNX product database
ETS4-ETS5 - KNX Database for KNX Push Button xgang
KNX product database International 2020-01-01
KNXPROD1,08 MB -
Application Guide
Application description EASY for 8014X3XX, 8016X7XX, 8016X8XX - KNX Push button xgang (EN, 2022-01), easy link
Application Guide en-GB 2022-01-17
PDF3,00 MB
Application description EASY for 8014X3XX, 8016X7XX, 8016X8XX - KNX Push button xgang (EN, 2022-01), easy link
Application Guide en-GB 2022-01-17
PDF3,00 MB
Application description ETS for 8014X3XX-8016X7XX-8016X8XX - KNX Push Button (EN, 2021-10)
Application Guide en-GB 2021-10-12
PDF3,20 MB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF307,84 kB
EU Declaration of Conformity
Declaration of conformity en-US 2026-01-28
PDF432,75 kB
