S.1/B.3/B.7 Push Button 3-gang, Thermostat/Label, Anthracite/Aluminium 75663785
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See all (11)
Compatible products
-
Referenced by 10 products available
Mandatory accessories
-
75040001Bus coupling unit flush-mtd, KNX
-
13099949Frame l. cut-out, S.1, ant., matt
-
13099939Frame l. cut-out, S.1, al. matt
-
13096904Frame l. cut-out, B.7, al./ant. matt, al. anodised
-
13096626Frame l. cut-out, B.7, ant. matt, lacq.
-
13096616Glass frame l. cut-out, B.7, black/ant. matt
-
13096424Frame l. cut-out, B.7, al., matt, lacq.
-
13093606Frame l. cut-out, B.7, stainless steel/ant. matt, metal brushed
-
13093016Frame l. cut-out, B.3, al. gold/ant. matt, al. anodised
-
13093005Frame l. cut-out, B.3, al. black/ant. matt, al. anodised
-
13093004Frame l. cut-out, B.3, al./ant. matt, al. anodised
Referenced by
-
13099949
Frame l. cut-out, S.1, ant., matt
-
13099939
Frame l. cut-out, S.1, al. matt
-
13096904
Frame l. cut-out, B.7, al./ant. matt, al. anodised
-
13096626
Frame l. cut-out, B.7, ant. matt, lacq.
-
13096616
Glass frame l. cut-out, B.7, black/ant. matt
-
13096424
Frame l. cut-out, B.7, al., matt, lacq.
-
13093606
Frame l. cut-out, B.7, stainless steel/ant. matt, metal brushed
-
13093016
Frame l. cut-out, B.3, al. gold/ant. matt, al. anodised
-
13093005
Frame l. cut-out, B.3, al. black/ant. matt, al. anodised
-
13093004
Frame l. cut-out, B.3, al./ant. matt, al. anodised
Technical characteristics
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-5 - 45 °C
Functions
-
With room temperature controllerYes
Dimensions
-
Height110.80 mm
-
Width55.80 mm
-
Depth13.85 mm
Equipment
-
Number of actuation points8
Controls and indicators
-
With LED indicationYes
Materials
-
ColourAnthracite
-
RAL code7021
-
MaterialThermoplastic
-
Surface finishGlossy
Accessories
-
Has labelling fieldYes
Screen
-
With displayYes
Texts
-
FunctionFor switch, push-button, dimmer, blind and thermostat functions, With valve protection function
-
Operating modeController operating modes: comfort, standby, night and frost/heat protection mode
-
ProtectionWith dismantling protection
-
TemperatureTemperature measurement via internal and/or external sensor with mean value formation
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

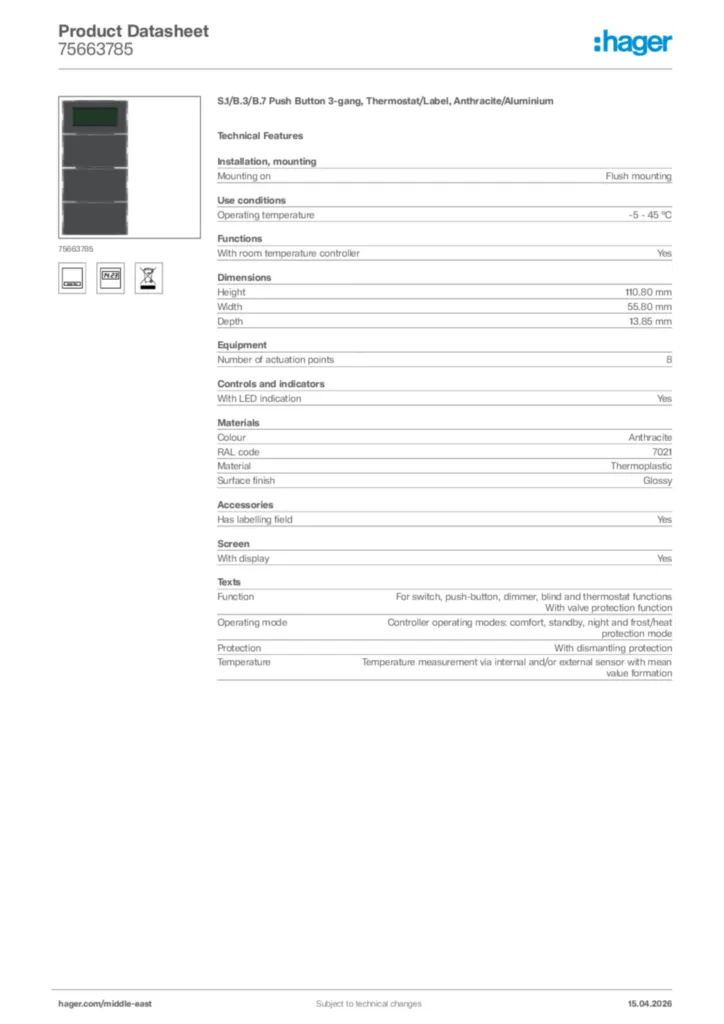

Product datasheet
Hager Product data sheet 75663785
S.1/B.3/B.7 Push Button 3-gang, Thermostat/Label, Anthracite/Aluminium
PDF -
Installation manual
Manual for 756627xx-756637xx-756657xx - Push-button 2gang with thermostat (EN, 2021-12)
Installation manual en-GB 2022-09-12
PDF1,35 MB -
Tool
Label templates (DesignPro 2000) for S.x/B.x touch sensors - 7516xx-7566xx, as from: 2013-01
Tool de-DE 2023-10-30
ZIP68,54 kB -
KNX product database
KNX plugin for 7566xx - Push-button with thermostat (V104)
KNX product database International 2023-08-25
EXE7,93 MB -
Application Guide
Application description ETS for 756627xx-756637xx-756657xx - Push-button with thermostat (EN, 2006-07)
Application Guide en-GB, pl-PL 2020-01-01
PDF2,04 MB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-03-05
PDF261,26 kB
Declaration of Conformity
Declaration of conformity International 2021-03-05
PDF262,21 kB
