KNX object thermostat, intg bus coupling unit, KNX - S.1, white glossy 75441252
EAN-Nr.
4011334289241
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for room thermostat/clock thermostat 1 products available
Technical characteristics
Electric current
-
Bus current consumption data transfer7.50 mA
Functions
-
Parallel service possibleNo
-
With local operationNo
Materials
-
ColourWhite
-
RAL code1013
Dimensions
-
Built-in depth22.70 mm
-
Built-in depth flush-mounted boxes26 mm
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-5 - 45 °C
-
Energy efficiency classIV (2%)
Voltage
-
Operating voltage over bus21 - 32 V
Texts
-
Installation modeWithout spreader claws
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

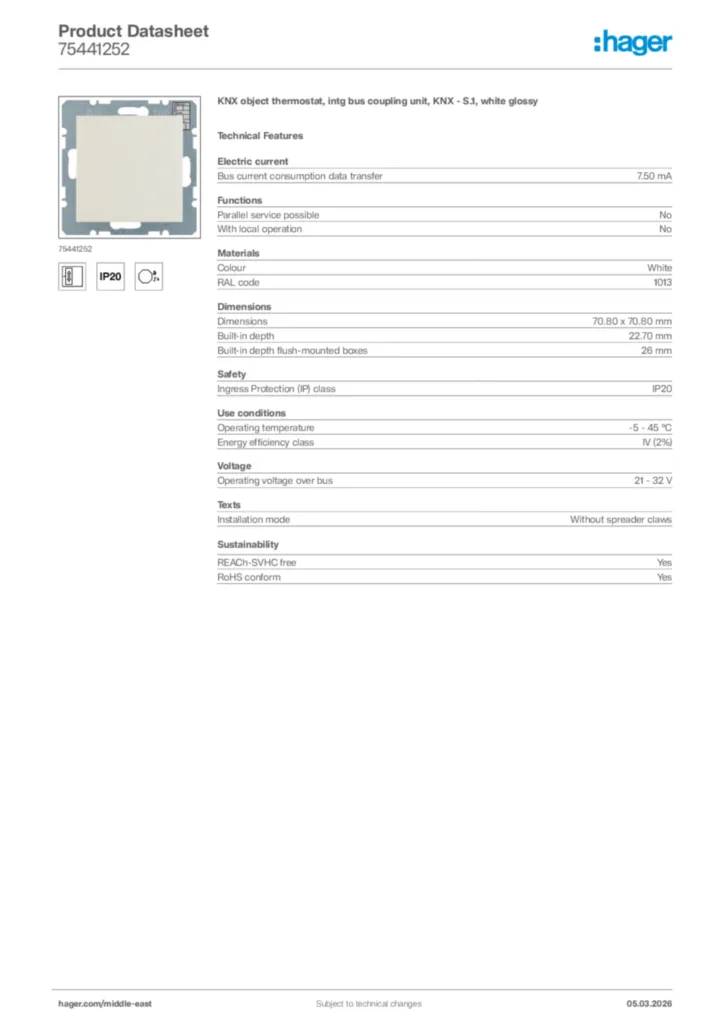

Product datasheet
Hager Product data sheet 75441252
KNX object thermostat, intg bus coupling unit, KNX - S.1, white glossy
PDF -
Installation manual
Manual for 754412xx - KNX thermostat for objects (EN, 2010-07)
Installation manual en-GB, pl-PL 2020-01-01
PDF292,10 kB -
KNX product database
KNX Database (from ETS2) for 754411xx-754412xx - KNX thermostat (2009-07)
KNX product database International 2023-08-25
VD2301,97 kB
KNX Database (from ETS2) for 754412XX - KNX object thermostat (2012-11)
KNX product database International 2023-08-25
VD2181,44 kB
KNX Database (from ETS3) for 754411xx-754412xx - KNX thermostat (2009-07)
KNX product database International 2023-08-25
VD4304,03 kB
KNX Database (from ETS3) for 754412xx - KNX object thermostat (2012-11)
KNX product database International 2023-08-25
VD4142,98 kB -
Application Guide
Application description ETS for 754412xx - KNX object thermostat (EN, 2007-07)
Application Guide en-GB, pl-PL 2020-01-01
PDF827,56 kB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-09-23
PDF293,22 kB
Declaration of Conformity
Declaration of conformity International 2021-09-23
PDF287,34 kB
