KNX Movement detector module comfort 1,10m (integrated bus coupling unit) 75242060

Name: 75242060
Brand: Hager
SKU: 75242060

EAN-Nr.

3250617151887

Packaging

1 piece

Phase out product: please contact your electrical wholesaler for availability

Accessories
Technical characteristics
Environmental value
Documentations

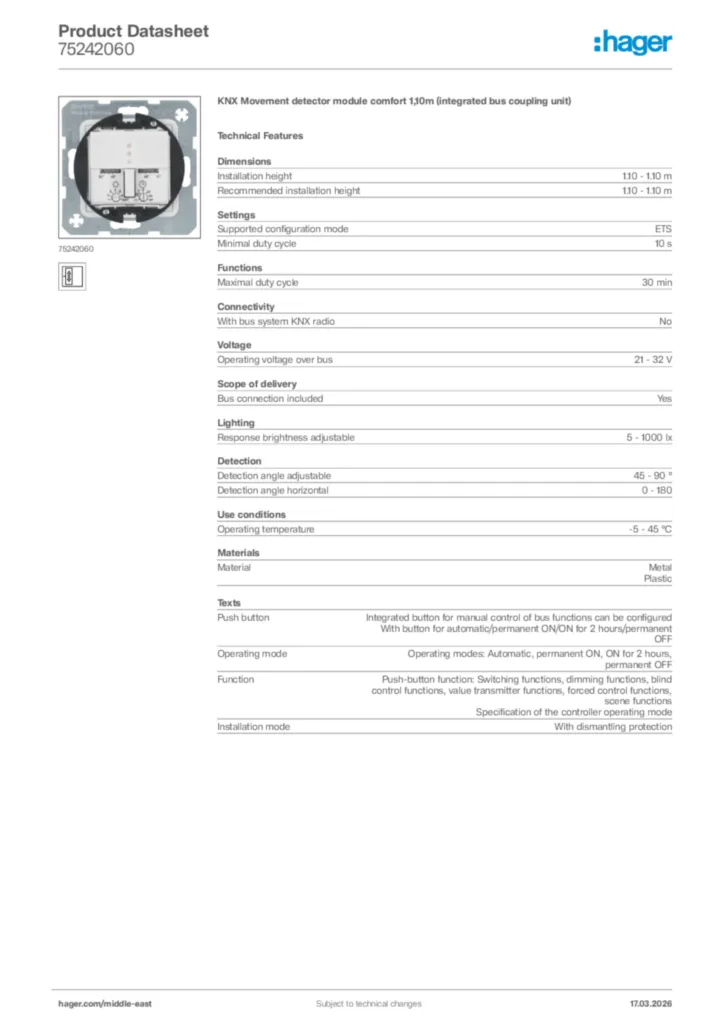

Download the sheet

Complete your system

75962869

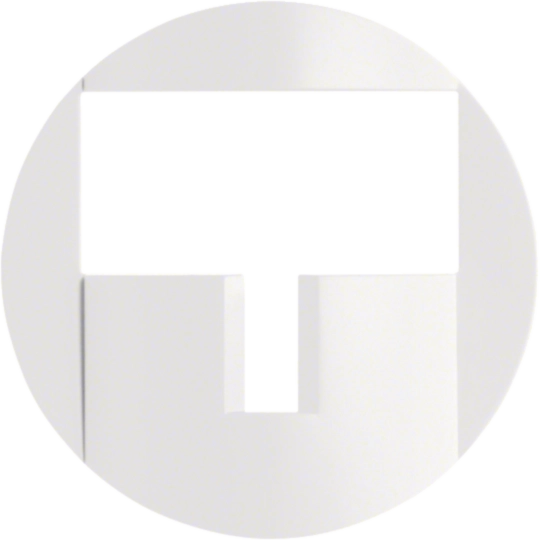

Cover for KNX movement detector module (polar white)

Technical characteristics

Installation height

1.10 - 1.10 m
Recommended installation height

1.10 - 1.10 m

Supported configuration mode

ETS
Minimal duty cycle

10 s

Maximal duty cycle

30 min

With bus system KNX radio

No

Operating voltage over bus

21 - 32 V

Bus connection included

Yes

Response brightness adjustable

5 - 1,000 lx

Detection angle adjustable

45 - 90 °
Detection angle horizontal

0 - 180

Operating temperature

-5 - 45 °C

Material

Metal, Plastic

Push button

Integrated button for manual control of bus functions can be configured, With button for automatic/permanent ON/ON for 2 hours/permanent OFF
Operating mode

Operating modes: Automatic, permanent ON, ON for 2 hours, permanent OFF
Function

Push-button function: Switching functions, dimming functions, blind control functions, value transmitter functions, forced control functions, scene functions, Specification of the controller operating mode
Installation mode

With dismantling protection
