    • 75164599
    EAN-Nr.
    4011334256502
    Packaging
    1 piece
    • Push button sensors B.IQ

    B.IQ push-button 4gang comf, KNX - B.IQ, p. white, matt, plastic 75164599

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    B.IQ push-button 4gang comf, KNX - B.IQ, p. white, matt, plastic

    75164599

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Must-have accessories

    Previous
    Previous
    75040001
    75040001
    Bus coupling unit flush-mtd, KNX
    Add to a list
    Add to a list

    Optional accessories

    • Labelling material for domestic switching devices 1 products available

    Complete your system

    • Labelling material for domestic switching devices
    • 75900081

      B.IQlab. field for push-buttons 4gang, B.IQ, clear, trans.
      0.00 €  / *

    Technical characteristics

    Installation, mounting
    • Mounting on
      Flush mounting
    Use conditions
    • Operating temperature
      -5 - 45 °C
    Functions
    • With room temperature controller
      No
    Dimensions
    • Height
      118.10 mm
    • Width
      88.50 mm
    • Depth
      15 mm
    Equipment
    • Number of actuation points
      8
    Controls and indicators
    • With LED indication
      Yes
    Materials
    • Colour
      Polar white
    • RAL code
      9010
    • Material
      Thermoplastic
    • Surface finish
      Matt
    Accessories
    • Has labelling field
      No
    Screen
    • With display
      No
    Texts
    • Function
      For switch, push-button, dimmer and shutter functions
    • Protection
      With dismantling protection

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    Hager REACH declaration 75164599
    PDF
    Hager RoHS report 75164599
    PDF

    Downloads

    • Image 75164599 | Hager

      Product Image 75164599

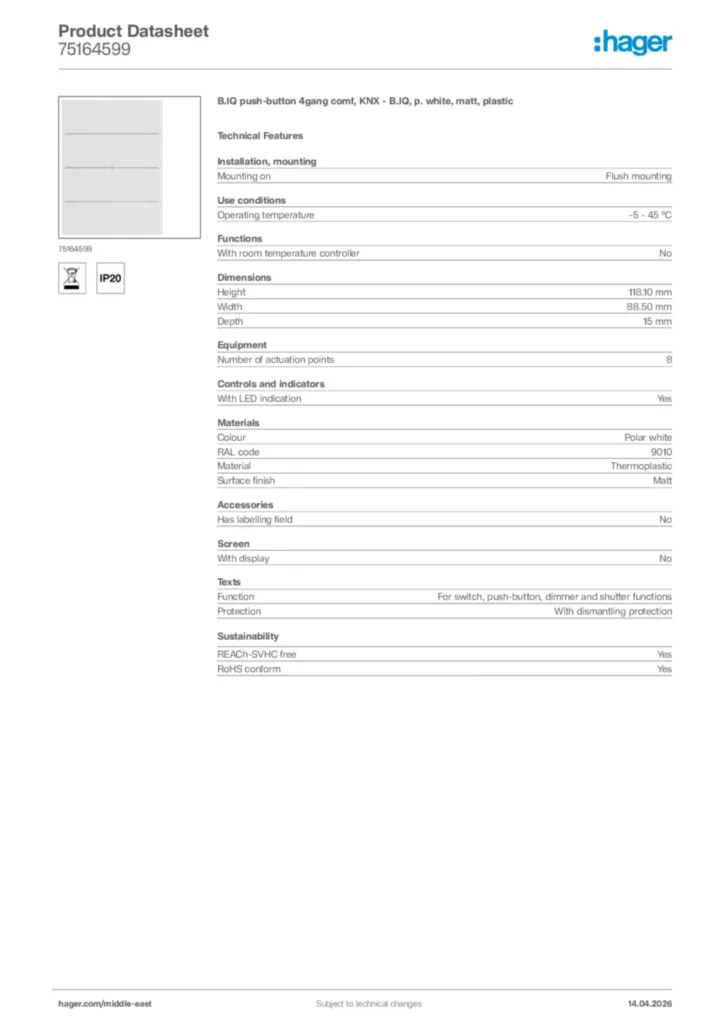

    • Product datasheet

      Image Hager Product data sheet 75164599 | Hager

      Hager Product data sheet 75164599

      B.IQ push-button 4gang comf, KNX - B.IQ, p. white, matt, plastic

      PDF

    • Installation manual

      Image Manual for 751615xx-751625xx-751635xx-751645xx - B.IQ push-button 1gang comfort (DE-EN-NL-NO-ES, 2021-12) | Hager

      Manual for 751615xx-751625xx-751635xx-751645xx - B.IQ push-button 1gang comfort (DE-EN-NL-NO-ES, 2021-12)

      Installation manual International 2004-04-20

      PDF
      400,23 kB

    • Tool

      Image Label templates (DesignPro 2000) for B.IQ touch sensors - 7516xx-7566xx, as from: 2014-01 | Hager

      Label templates (DesignPro 2000) for B.IQ touch sensors - 7516xx-7566xx, as from: 2014-01

      Tool de-DE 2023-10-30

      ZIP
      72,77 kB

    • KNX product database

      Image KNX Database (from ETS2) for 751645xx - B.IQ push-button 4gang comfort (2012-10) | Hager

      KNX Database (from ETS2) for 751645xx - B.IQ push-button 4gang comfort (2012-10)

      KNX product database International 2023-08-25

      VD1
      101,37 kB
      Image KNX Database (from ETS2) for 7516459xx - B.IQ push-button 4gang comfort (2012-10) | Hager

      KNX Database (from ETS2) for 7516459xx - B.IQ push-button 4gang comfort (2012-10)

      KNX product database International 2023-08-25

      VD1
      194,08 kB

    • Application Guide

      Image Application description ETS for 7516159xx-7516259xx-7516359xx-7516459xx - B.IQ push-button comfort (EN, 2004-08) | Hager

      Application description ETS for 7516159xx-7516259xx-7516359xx-7516459xx - B.IQ push-button comfort (EN, 2004-08)

      Application Guide en-GB 2020-01-01

      PDF
      195,58 kB

    • Declaration of conformity

      Image Declaration of Conformity | Hager

      Declaration of Conformity

      Declaration of conformity International 2021-03-05

      PDF
      258,49 kB
      Image Declaration of Conformity | Hager

      Declaration of Conformity

      Declaration of conformity International 2021-03-05

      PDF
      258,73 kB
