Soc.out. earth.pin+LED,enhncd contact prot.,screw-in lift term.,R.1.3,green 6765092003
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Cover frame for domestic switching devices 10 product.page.accessories.products-available
product.page.accessories.compatible.title
-
product.page.accessories.referenced_by.title 142 product.page.accessories.products-available
product.page.accessories.title-modal
-
10112189Frame 1gang, R.1, p. white glossy
-
10122189Frame 2gang, R.1, p. white glossy
-
10132189Frame 3gang, R.1, p. white glossy
-
10142189Frame 4gang, R.1, p. white glossy
-
10112289Frame 1gang, R.3, p. white glossy
-
10122289Frame 2gang, R.3, p. white glossy
-
10132289Frame 3gang, R.3, p. white glossy
-
10142289Frame 4gang, R.3, p. white glossy
-
10152189
Frame 5gang, R.1, p. white glossy
-
10152289Frame 5gang, R.3, p. white glossy
product.page.accessories.referenced_by.title
-
10142114Frame 4gang, R.1, stainless steel/p. white
-
10112216Frame 1gang, R.3, glass black
-
10142209Frame 4gang, R.3, glass p. white
-
10132209Frame 3gang, R.3, glass p. white
-
10122209Frame 2gang, R.3, glass p. white
-
10112209Frame 1gang, R.3, glass p. white
-
10142245Frame 4gang, R.3, black glossy
-
10132245Frame 3gang, R.3, black glossy
-
10122245Frame 2gang, R.3, black glossy
-
10112245Frame 1gang, R.3, black glossy
-
10142289
Frame 4gang, R.3, p. white glossy
-
10132289
Frame 3gang, R.3, p. white glossy
-
10122289
Frame 2gang, R.3, p. white glossy
-
10112289
Frame 1gang, R.3, p. white glossy
-
10142104Frame 4gang, R.1, stainless steel/black
-
10132104Frame 3gang, R.1, stainless steel/black
-
10122104Frame 2gang, R.1, stainless steel/black
-
10112104Frame 1gang, R.1, stainless steel/black
-
10112174Frame 1gang, R.1, al./p. white
-
10132116Frame 3gang, R.1, glass black
Technical characteristics
Voltage
-
Rated voltage250 V
Electric current
-
Rated current IN16 A
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourGreen
-
RAL codeSimilar to RAL 6029
-
Surface finishGlossy
-
MaterialThermoplastic
-
TreatmentUntreated
Dimensions
-
Height71 mm
-
Width71 mm
-
Number of units1
-
Built-in depth32 mm
Installation, mounting
-
Mounting onFlush mounting
Connectivity
-
Type of connectionScrew terminal
-
Mounting typeScrew mounting, Claw mounting
Equipment
-
Connector/plug type socket outletEarthing pin
-
Rotated central insertNo
-
With hinged lidNo
-
With round protective earth pinYes
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldNo
Capacity
-
Number of modules1
Controls and indicators
-
Type of lighting for the installation devicesIntegrated operating control light
Safety
-
With enhanced contact protectionYes
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP20
Functions
-
With orientation lightingNo
-
With function lightingYes
Identification
-
With imprintNo
-
Related SystemsR.x
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

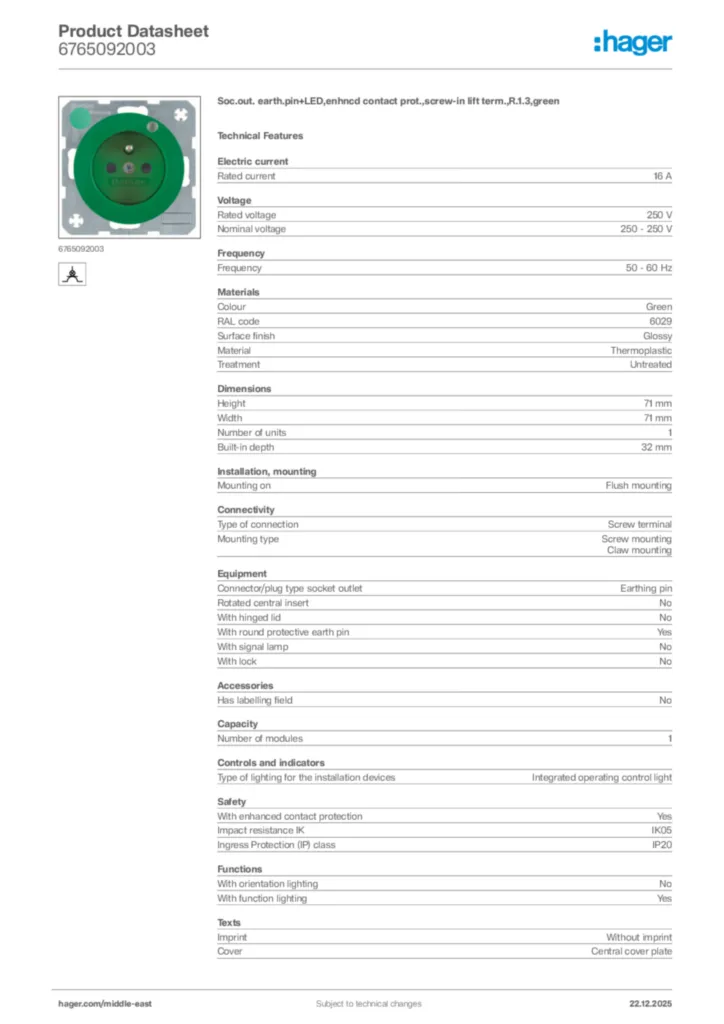

Hager Product data sheet 6765092003
