SCHUKO soc.out. LED+"SV" impr.,enhncd contact prot.,screw-in lift ,R.1.3,green 41102003
EAN-Nr.
4011334385103
Packaging
10 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Cover frame for domestic switching devices 10 products available
Compatible products
-
Referenced by 132 products available
Complete your system
-
10112189
Frame 1gang, R.1, p. white glossy
-
10122189Frame 2gang, R.1, p. white glossy
-
10132189Frame 3gang, R.1, p. white glossy
-
10142189Frame 4gang, R.1, p. white glossy
-
10112289Frame 1gang, R.3, p. white glossy
-
10122289Frame 2gang, R.3, p. white glossy
-
10132289Frame 3gang, R.3, p. white glossy
-
10142289Frame 4gang, R.3, p. white glossy
-
10152189Frame 5gang, R.1, p. white glossy
-
10152289Frame 5gang, R.3, p. white glossy
Referenced by
-
10132104Frame 3gang, R.1, stainless steel/black
-
10132216Frame 3gang, R.3, glass black
-
10122216Frame 2gang, R.3, glass black
-
10112216Frame 1gang, R.3, glass black
-
10142209Frame 4gang, R.3, glass p. white
-
10132209Frame 3gang, R.3, glass p. white
-
10122209Frame 2gang, R.3, glass p. white
-
10112209Frame 1gang, R.3, glass p. white
-
10142245Frame 4gang, R.3, black glossy
-
10132245Frame 3gang, R.3, black glossy
-
10122245Frame 2gang, R.3, black glossy
-
10112245Frame 1gang, R.3, black glossy
-
10142289
Frame 4gang, R.3, p. white glossy
-
10132289
Frame 3gang, R.3, p. white glossy
-
10122289
Frame 2gang, R.3, p. white glossy
-
10112289
Frame 1gang, R.3, p. white glossy
-
10142104Frame 4gang, R.1, stainless steel/black
-
10112184Frame 1gang, R.1, al./black
-
10142174Frame 4gang, R.1, al./p. white
-
10132174Frame 3gang, R.1, al./p. white

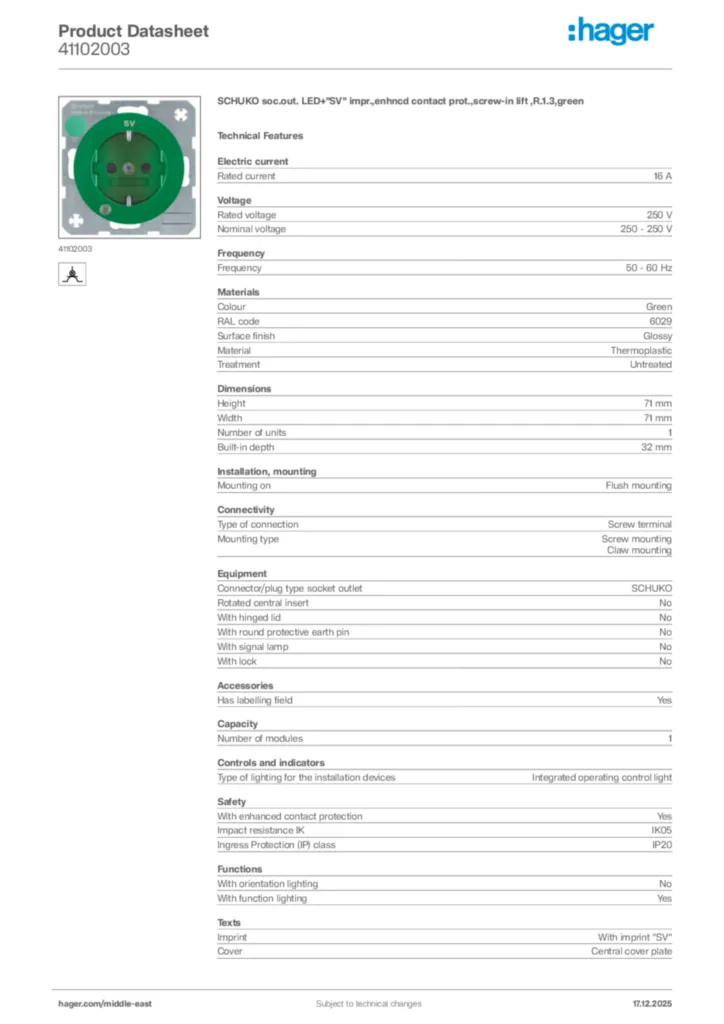

Technical characteristics
Electric current
-
Rated current16 A
Voltage
-
Rated voltage250 V
-
Nominal voltage250 - 250 V
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourGreen
-
RAL code6029
-
Surface finishGlossy
-
MaterialThermoplastic
-
TreatmentUntreated
Dimensions
-
Height71 mm
-
Width71 mm
-
Number of units1
-
Built-in depth32 mm
Installation, mounting
-
Mounting onFlush mounting
Connectivity
-
Type of connectionScrew terminal
-
Mounting typeScrew mounting, Claw mounting
Equipment
-
Connector/plug type socket outletSCHUKO
-
Rotated central insertNo
-
With hinged lidNo
-
With round protective earth pinNo
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldYes
Capacity
-
Number of modules1
Controls and indicators
-
Type of lighting for the installation devicesIntegrated operating control light
Safety
-
With enhanced contact protectionYes
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP20
Functions
-
With orientation lightingNo
-
With function lightingYes
-
Related SystemsR.x
