SCHUKO soc. out. "EDV" imprint, R.1/R.3, red glossy 47432022
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 142 products available
Referenced by
-
10142114Frame 4gang, R.1, stainless steel/p. white
-
10112216Frame 1gang, R.3, glass black
-
10142209Frame 4gang, R.3, glass p. white
-
10132209Frame 3gang, R.3, glass p. white
-
10122209Frame 2gang, R.3, glass p. white
-
10112209Frame 1gang, R.3, glass p. white
-
10142245Frame 4gang, R.3, black glossy
-
10132245Frame 3gang, R.3, black glossy
-
10122245Frame 2gang, R.3, black glossy
-
10112245Frame 1gang, R.3, black glossy
-
10142289Frame 4gang, R.3, p. white glossy
-
10132289Frame 3gang, R.3, p. white glossy
-
10122289Frame 2gang, R.3, p. white glossy
-
10112289Frame 1gang, R.3, p. white glossy
-
10142104Frame 4gang, R.1, stainless steel/black
-
10132104Frame 3gang, R.1, stainless steel/black
-
10122104Frame 2gang, R.1, stainless steel/black
-
10112104Frame 1gang, R.1, stainless steel/black
-
10112174Frame 1gang, R.1, al./p. white
-
10132116Frame 3gang, R.1, glass black
Technical characteristics
Voltage
-
Rated voltage250 V
Electric current
-
Rated current16 A
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourRed
-
RAL code3003
-
Surface finishGlossy
-
MaterialThermoplastic
-
TreatmentUntreated
Dimensions
-
Height71 mm
-
Width71 mm
-
Number of units1
-
Built-in depth flush-mounted boxes31 mm
-
Built-in depth32 mm
Connection
-
Connector/plug typePlug-in terminal
Installation, mounting
-
Mounting onFlush mounting
Connectivity
-
Type of connectionPlug-in connection
-
Mounting typeScrew mounting, Claw mounting
Equipment
-
Connector/plug type socket outletSCHUKO
-
Rotated central insertNo
-
With hinged lidNo
-
With round protective earth pinNo
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldNo
Capacity
-
Number of modules1
Safety
-
With enhanced contact protectionNo
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP20
Functions
-
With orientation lightingNo
-
With function lightingNo
-
Related SystemsR.x
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet
Hager Product data sheet 47432022
SCHUKO soc. out. "EDV" imprint, R.1/R.3, red glossy
PDF -
Declaration of performance

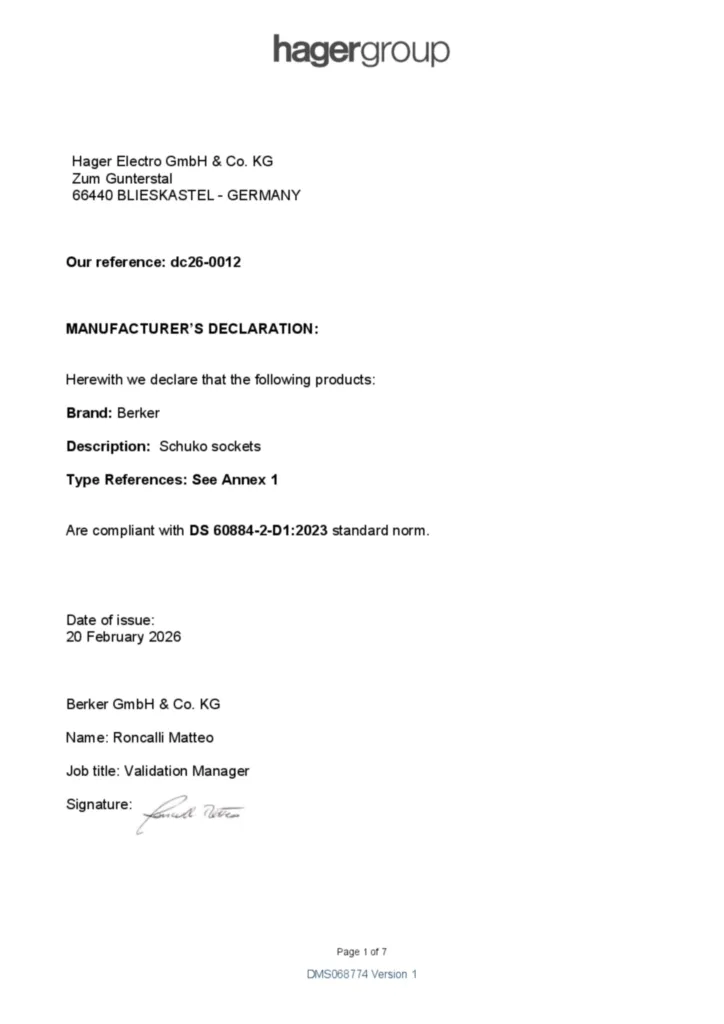

Declaration of performance en-GB 2026-02-20
PDF630,03 kB -
Declaration of conformity
Declaration of conformity International 2023-05-02
PDF451,70 kB
