Push-button insert,change-over contact rocker surf.-/flush-mtd,W.1,p.wh.m.plas. 50463512

EAN-Nr.

4011334390343

Packaging

1 piece

Accessories
Technical characteristics
Documentations

Download the sheet

Complete your system

Surface-mounted lower casing 2gang horizontal, w. frame and cable entries W.1 pw

Frame 1gang for flush-mounted installation, with sealing, W.1, polar white

Frame 3g horizontal for flush-mounted installation, with sealing W.1p-w

Frame 2gang horizontal for flush-mounted installation, with sealing, W.1, p-w

Frame 2gang vertical for flush-mounted installation, with sealing, W.1, p-w

Technical characteristics

Momentary contact current

10 A

Rated voltage

250 V

Control/operation element

Rocker

Colour

Polar white
Surface finish

Matt
Material

Thermoplastic
Treatment

Untreated
Transparent

No

Height

71 mm
Width

71 mm
Depth

43 mm
Built-in depth flush-mounted boxes

0

Mounting on

Flush mounting, Surface mounting

Number of buttons

1
Type of push button

Single push button
With feedback signal contact

No

Ingress Protection (IP) class

IP55
Impact resistance IK

IK05

Has labelling field

No

Downloads

Product Image 50463512

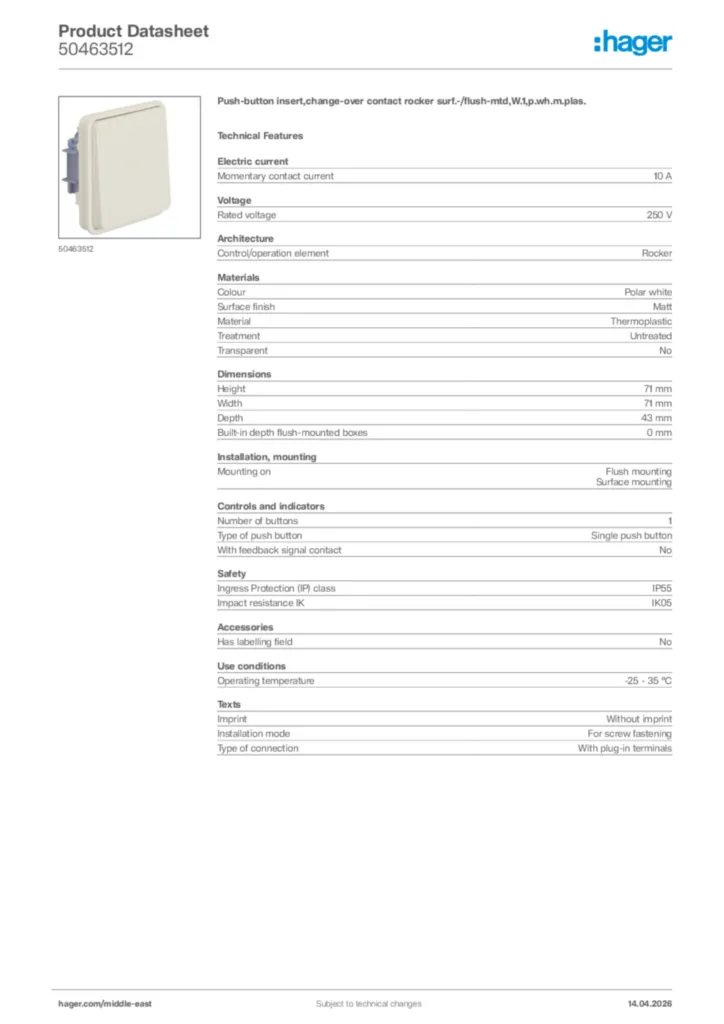

Product datasheet

Hager Product data sheet 50463512

Push-button insert,change-over contact rocker surf.-/flush-mtd,W.1,p.wh.m.plas.

PDF
Technical appendix (single product)

Splash-protected range W.1 - Chemical resistance (EN, 07-2021)

Technical appendix (single product) en-GB 2015-07-13

PDF

518,42 kB
Declaration of conformity

Declaration of conformity International 2021-11-03

PDF

82,41 kB

Declaration of conformity International 2022-04-26

PDF

164,12 kB
