SCHUKO soc.out. hinged cover+"EDV" impr. in red,enhncd contact prot.,Q.x, pw 47526059
EAN-Nr.
4011334329343
Packaging
10 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for domestic switching devices 1 products available
Compatible products
-
Referenced by 107 products available
Referenced by
-
10116176Frame 1gang, Q.7, glass black for illumination
-
10156079Frame 5gang, glass polarwhite
-
10146079Frame 4gang, glass polarwhite
-
10136079Frame 3gang R.7 glass, polar white
-
10156094Frame 5gang Q.3 alu velvety, lacquered
-
10156096Frame 5gang, Q.3, ant. velvety, lacq.
-
10156099Frame 5gang, Q.3, p. white velvety
-
10116104Frame 1gang, Q.7, alu velvety lacquered for illumination
-
10116106Frame 1gang, Q.7, anthracite velvety, lacquered for illumination
-
10116109Frame 1gang, Q.7 , polarwhite velvety for illumination
-
10116130Frame 1gang, Q.7, anthracite natural slate for illumination
-
10116183Frame 1gang, Q.7, stainless steel brushed for illumination
-
10116174Frame 1gang, Q.7, Aluminium, aluminium blasted for illumnation
-
10126189Frame 2gang, Q.7 , polarwhite velvety
-
10156189Frame 5gang, Q.7 , polarwhite velvety
-
10146189Frame 4gang, Q.7 , polarwhite velvety
-
10136189Frame 3gang, Q.7 , polarwhite velvety
-
10116186Frame 1gang, Q.7 , anthracite velvety, lacquered
-
10116189Frame 1gang, Q.7 , polarwhite velvety
-
10136030Frame 3gang, Slate
Technical characteristics
Electric current
-
Rated current16 A
Voltage
-
Rated voltage250 V
-
Nominal voltage250 - 250 V
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourPolar white
-
RAL code9010
-
Surface finishVelvety
-
MaterialThermoplastic
-
TreatmentUntreated
Dimensions
-
Height71 mm
-
Width71 mm
-
Built-in depth flush-mounted boxes35 mm
-
Built-in depth32 mm
Connection
-
Connector/plug typePlug clamp
Installation, mounting
-
Mounting onFlush mounting
Connectivity
-
Type of connectionPlug-in connection
-
Mounting typeScrew mounting, Claw mounting
Equipment
-
Connector/plug type socket outletSCHUKO
-
Rotated central insertNo
-
With hinged lidYes
-
With round protective earth pinNo
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldYes
Cover, door
-
Type of lidSelf-closing hinged cover
Capacity
-
Number of modules1
Safety
-
With enhanced contact protectionYes
-
Impact resistance IKIK02
-
Ingress Protection (IP) classIP44
Functions
-
With orientation lightingNo
-
With function lightingNo
-
Related SystemsQ.x
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

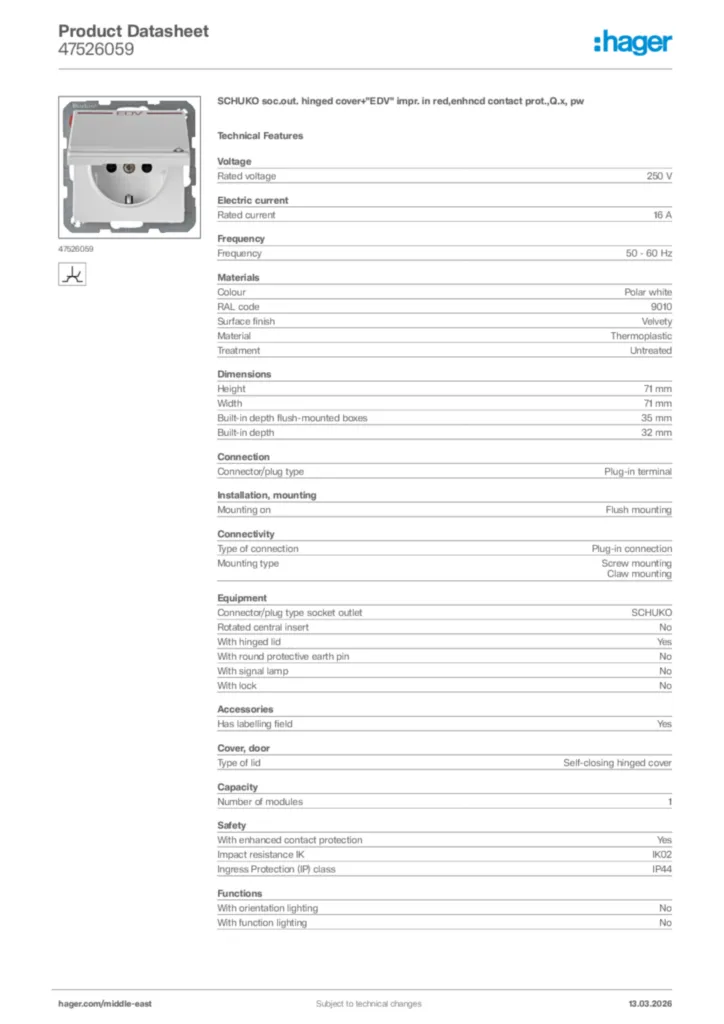

Hager Product data sheet 47526059
SCHUKO soc.out. hinged cover+"EDV" impr. in red,enhncd contact prot.,Q.x, pw
PDF -
Declaration of conformity
Declaration of conformity International 2023-05-02
PDF451,70 kB
