SCHUKO soc.out. hinged cover,enhncd contact prot.,var. in 45°step,S1/B3/7 47441909
Login to create a product list
You need to be logged into your myHager account to create product lists
Also available in
Surface finish
Complete your system
Optional accessories
-
Accessories/spare parts for domestic switching devices 1 products available
Compatible products
-
Referenced by 175 products available
Referenced by
-
10123021Frame 2gang, B.3, al. brown/p. white matt, al. anodised
-
10133904Frame 3gang, B.3, al./p. white matt, al. anodised
-
10133046Frame 3gang, B.3, al. gold/p. white matt, al. anodised
-
10133025Frame 3gang, B.3, al. black/p. white matt, al. anodised
-
10133016Frame 3gang, B.3, al. gold/ant. matt, al. anodised
-
10133005Frame 3gang, B.3, al. black/ant. matt, al. anodised
-
10133004Frame 3gang, B.3, al./ant. matt, al. anodised
-
10133001Frame 3gang, B.3, al. brown/ant. matt, al. anodised
-
10123904Frame 2gang, B.3, al./p. white matt, al. anodised
-
10123046Frame 2gang, B.3, al. gold/p. white matt, al. anodised
-
10123025Frame 2gang, B.3, al. black/p. white matt, al. anodised
-
10113904Frame 1gang, B.3, al./p. white matt, al. anodised
-
10113004Frame 1gang, B.3, al./ant. matt, al. anodised
-
10113005Frame 1gang, B.3, al. black/ant. matt, al. anodised
-
10113016Frame 1gang, B.3, al. gold/ant. matt, al. anodised
-
10113025Frame 1gang, B.3, al. black/p. white matt, al. anodised
-
10113046Frame 1gang, B.3, al. gold/p. white matt, al. anodised
-
10123004Frame 2gang, B.3, al./ant. matt, al. anodised
-
10123016Frame 2gang, B.3, al. gold/ant. matt, al. anodised
-
10123005Frame 2gang, B.3, al. black/ant. matt, al. anodised
Technical characteristics
Voltage
-
Rated voltage250 V
Electric current
-
Rated current16 A
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourPolar white
-
RAL code9010
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentUntreated
Dimensions
-
Height71 mm
-
Width71 mm
-
Number of units1
-
Built-in depth flush-mounted boxes35 mm
-
Built-in depth32 mm
Connection
-
Connector/plug typePlug-in terminal
Installation, mounting
-
Mounting onFlush mounting
Connectivity
-
Type of connectionPlug-in connection
-
Mounting typeScrew mounting, Claw mounting
Equipment
-
Connector/plug type socket outletSCHUKO
-
Rotated central insertNo
-
With hinged lidYes
-
With round protective earth pinNo
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldNo
Cover, door
-
Type of lidSelf-closing hinged cover
Capacity
-
Number of modules1
Safety
-
With enhanced contact protectionYes
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP20
Functions
-
With orientation lightingNo
-
With function lightingNo
-
Related SystemsS.x/B.x
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

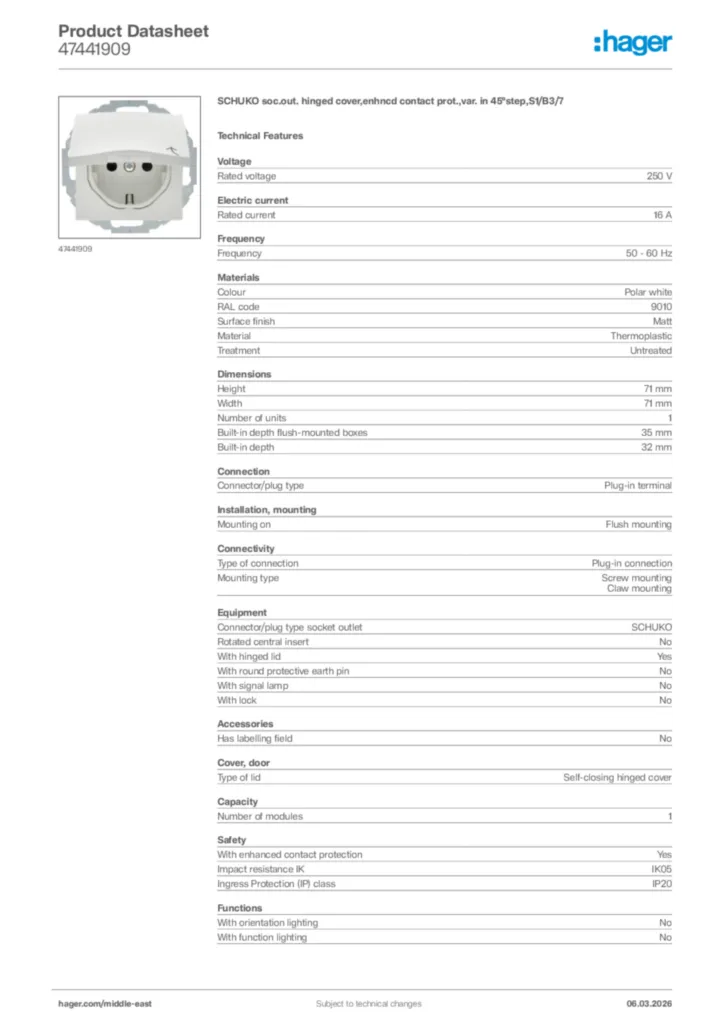

Hager Product data sheet 47441909
SCHUKO soc.out. hinged cover,enhncd contact prot.,var. in 45°step,S1/B3/7
PDF -
Declaration of performance
Declaration of performance en-GB 2026-02-20
PDF630,03 kB -
Declaration of conformity
Declaration of conformity International 2023-05-02
PDF451,70 kB
