    High definition soc.out. 90° plug connection, S.1/B.3/B.7, p.white matt, plastic 3315431909

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    High definition soc.out. 90° plug connection, S.1/B.3/B.7, p.white matt, plastic

    3315431909

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Cover frame for domestic switching devices 5 products available

    Compatible products

    • Referenced by 174 products available

    Complete your system

    • Cover frame for domestic switching devices
    • 10149909

      Frame 4gang, S.1, p. white, matt, plastic

      €0.00  / *
    • 10159909

      Frame 5gang, S.1, p. white, matt, plastic

      €0.00  / *
    • 10129909

      Frame 2gang, S.1, p. white, matt, plastic

      €0.00  / *
    • 10119909

      Frame 1gang, S.1, p. white, matt, plastic

      €0.00  / *
    • 10139909

      Frame 3gang, S.1, p. white, matt, plastic

      €0.00  / *

    Referenced by

    • 10123025

      Frame 2gang, B.3, al. black/p. white matt, al. anodised

      €0.00  / *
    • 10143001

      Frame 4gang, B.3, al. brown/ant. matt, al. anodised

      €0.00  / *
    • 10133904

      Frame 3gang, B.3, al./p. white matt, al. anodised

      €0.00  / *
    • 10133046

      Frame 3gang, B.3, al. gold/p. white matt, al. anodised

      €0.00  / *
    • 10133025

      Frame 3gang, B.3, al. black/p. white matt, al. anodised

      €0.00  / *
    • 10133016

      Frame 3gang, B.3, al. gold/ant. matt, al. anodised

      €0.00  / *
    • 10133005

      Frame 3gang, B.3, al. black/ant. matt, al. anodised

      €0.00  / *
    • 10133004

      Frame 3gang, B.3, al./ant. matt, al. anodised

      €0.00  / *
    • 10133001

      Frame 3gang, B.3, al. brown/ant. matt, al. anodised

      €0.00  / *
    • 10123904

      Frame 2gang, B.3, al./p. white matt, al. anodised

      €0.00  / *
    • 10123046

      Frame 2gang, B.3, al. gold/p. white matt, al. anodised

      €0.00  / *
    • 10123001

      Frame 2gang, B.3, al. brown/ant. matt, al. anodised

      €0.00  / *
    • 10113005

      Frame 1gang, B.3, al. black/ant. matt, al. anodised

      €0.00  / *
    • 10113016

      Frame 1gang, B.3, al. gold/ant. matt, al. anodised

      €0.00  / *
    • 10113025

      Frame 1gang, B.3, al. black/p. white matt, al. anodised

      €0.00  / *
    • 10113046

      Frame 1gang, B.3, al. gold/p. white matt, al. anodised

      €0.00  / *
    • 10113904

      Frame 1gang, B.3, al./p. white matt, al. anodised

      €0.00  / *
    • 10123005

      Frame 2gang, B.3, al. black/ant. matt, al. anodised

      €0.00  / *
    • 10123021

      Frame 2gang, B.3, al. brown/p. white matt, al. anodised

      €0.00  / *
    • 10123016

      Frame 2gang, B.3, al. gold/ant. matt, al. anodised

      €0.00  / *

    Technical properties

    Connection
    • Connector/plug type
      HDMI
    • Number of connections
      1
    Dimensions
    • Built-in depth flush-mounted boxes
      18 mm
    • Depth
      28.30 mm
    • Height
      71 mm
    • Width
      71 mm
    • Built-in depth
      41 mm
    Equipment
    • With dust cover
      No
    • With hinged lid
      No
    • Shielded
      Yes
    Materials
    • Material
      Metal, Plastic
    • Colour
      Polar white
    • RAL code
      Similar to RAL 9010
    • Treatment
      Untreated
    • Surface finish
      Matt
    Frequency
    • Frequency
      50 - 85 Hz
    Safety
    • Impact resistance IK
      IK05
    • Ingress Protection (IP) class
      IP20
    Texts
    • Installation mode
      For screw fastening, Without spreader claws

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    REACH declaration 3315431909
    PDF
    Hager RoHS report 3315431909
    PDF

    Downloads

    • Image 3315431909  | Hager

      Product Image 3315431909

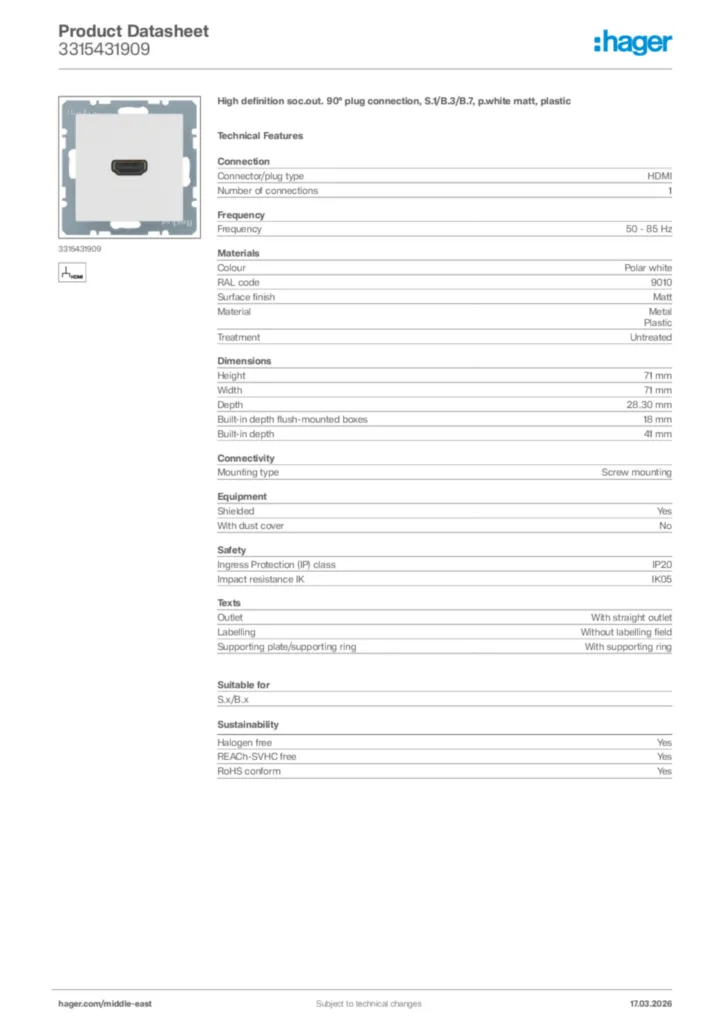

    • Product datasheet

      Image Hager Product data sheet 3315431909  | Hager

      Hager Product data sheet 3315431909

      High definition soc.out. 90° plug connection, S.1/B.3/B.7, p.white matt, plastic

      PDF
    • Installation manual

      Image Manual for 33153xx-33154xx - Multimedia sockets (DE-EN, 2020-12)  | Hager

      Manual for 33153xx-33154xx - Multimedia sockets (DE-EN, 2020-12)

      Installation manual en-GB, de-DE 2023-01-06

      PDF
      3,31 MB
      Image Manual for 33153xx-33154xx - Multimedia sockets (DE-EN, 2023-03)  | Hager

      Manual for 33153xx-33154xx - Multimedia sockets (DE-EN, 2023-03)

      Installation manual en-GB, de-DE 2023-04-13

      PDF
      3,31 MB
    • Declaration of conformity

      Image EU Declaration of Conformity  | Hager

      EU Declaration of Conformity

      dc26-1192

      PDF
      381,85 kB
