Blind switch insert 1p rocker 2g+impr.ed symb.arrow surf.-/flushmtd,W.1,p.wh. LT 30653512
EAN-Nr.
4011334390305
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See all (5)
Compatible products
-
Referenced by 9 products available
Mandatory accessories
-
6719323502Surface-mounted lower casing 2gang horizontal, w. frame and cable entries W.1 pw
-
13283502Frame 1gang for flush-mounted installation, with sealing, W.1, polar white
-
13303502Frame 3g horizontal for flush-mounted installation, with sealing W.1p-w
-
13293502Frame 2gang horizontal for flush-mounted installation, with sealing, W.1, p-w
-
13293512Frame 2gang vertical for flush-mounted installation, with sealing, W.1, p-w
Referenced by
-
13383513Frame 1gang, can be illuminated 230 V, for housing surface-mtd, W.1, blue
-
13283502
Frame 1gang for flush-mounted installation, with sealing, W.1, polar white
-
13303502
Frame 3g horizontal for flush-mounted installation, with sealing W.1p-w
-
13293502
Frame 2gang horizontal for flush-mounted installation, with sealing, W.1, p-w
-
13293512
Frame 2gang vertical for flush-mounted installation, with sealing, W.1, p-w
-
13303505Frame 3g horizontal for flush-mounted installation, with sealing W.1light grey
-
13293515Frame 2gang vertical for flush-mounted installation, with sealing W.1 light grey
-
13293505Frame 2gang hor. for flush-mtd inst., sealing, W.1 ECO, light grey matt
-
13283505Frame 1gang for flush-mtd inst., sealing, W.1 ECO, light grey matt
Technical characteristics
Materials
-
ColourPolar white
-
RAL code9010
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentUntreated
Controls and indicators
-
Venetian blind switch type1-pole switch
Voltage
-
Rated voltage250 V
Electric current
-
Switching current10 A
Safety
-
Ingress Protection (IP) classIP55
Use conditions
-
Operating temperature-25 - 35 °C
Texts
-
Switch modeWith mechanical and electrical interlock to prevent mutual switch-on
-
Type of connectionWith plug-in terminals
-
Installation modeFor screw fastening
-
Related SeriesW.1
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

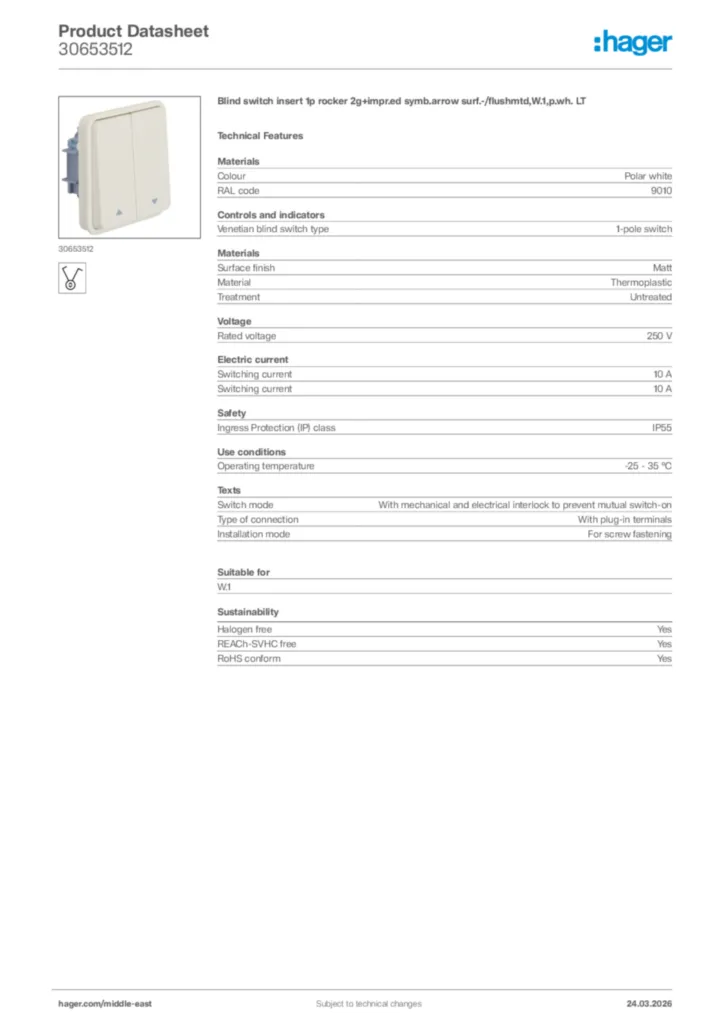

Product datasheet
Hager Product data sheet 30653512
Blind switch insert 1p rocker 2g+impr.ed symb.arrow surf.-/flushmtd,W.1,p.wh. LT
PDF -
Technical appendix (single product)
Splash-protected range W.1 - Chemical resistance (EN, 07-2021)
Technical appendix (single product) en-GB 2015-07-13
PDF518,42 kB -
Declaration of conformity
Declaration of conformity International 2021-11-03
PDF82,41 kB
Declaration of conformity International 2022-04-26
PDF164,12 kB
More documentation
