On/off switch insert 2p rocker+impr. "0" + "1" surf.-/flush-mtd,W.1,p.wh.m.plas. 30423512

EAN-Nr.

4011334390268

Packaging

1 piece

Accessories
Technical characteristics
Documentations

Download the sheet

Complete your system

Surface-mounted lower casing 2gang horizontal, w. frame and cable entries W.1 pw

Frame 1gang for flush-mounted installation, with sealing, W.1, polar white

Frame 3g horizontal for flush-mounted installation, with sealing W.1p-w

Frame 2gang horizontal for flush-mounted installation, with sealing, W.1, p-w

Frame 2gang vertical for flush-mounted installation, with sealing, W.1, p-w

Technical characteristics

Switching current

10 A
Rated current

10 A

Mounting on

Flush mounting, Surface mounting

Rated voltage

250 V

Colour

Polar white
RAL code

9010
Surface finish

Matt
Material

Thermoplastic
Treatment

Untreated

Assembly arrangement

Control element

Mounting type

Screw mounting

Number of buttons

1

Built-in depth

12 mm
Built-in depth flush-mounted boxes

0

Ingress Protection (IP) class

IP55

Control/operation element

Single rocker

Installation mode

For screw fastening
Type of connection

With N-terminal, With plug-in terminals
Switch mode

2x 1- -pole off

Downloads

Product Image 30423512

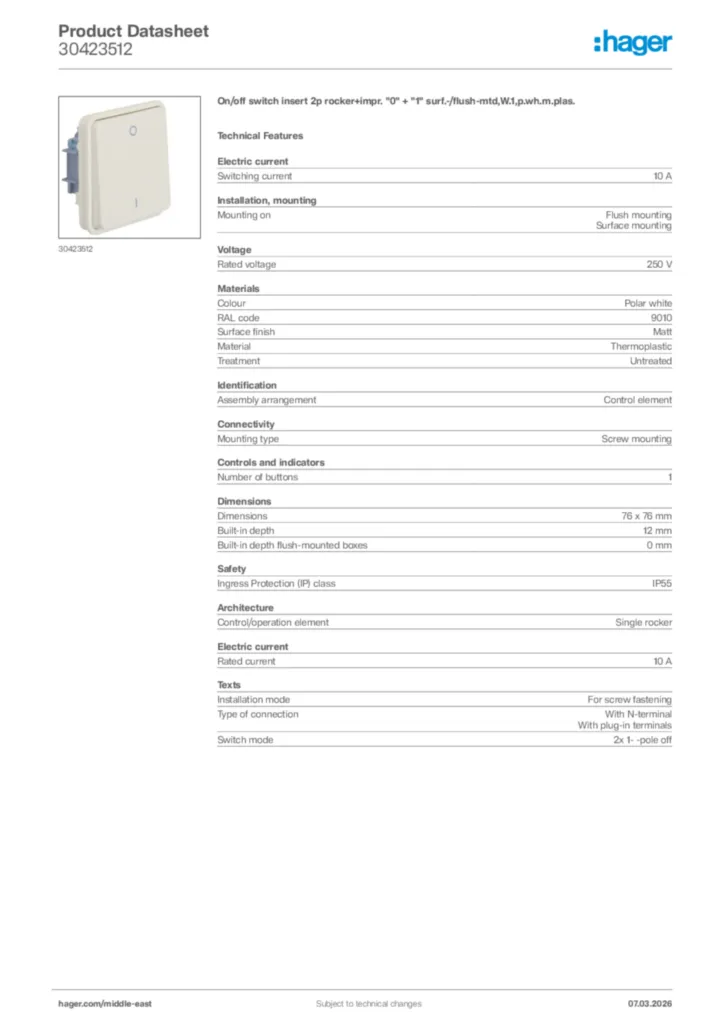

Product datasheet

Hager Product data sheet 30423512

On/off switch insert 2p rocker+impr. "0" + "1" surf.-/flush-mtd,W.1,p.wh.m.plas.

PDF
Technical appendix (single product)

Splash-protected range W.1 - Chemical resistance (EN, 07-2021)

Technical appendix (single product) en-GB 2015-07-13

PDF

518,42 kB
Declaration of conformity

Declaration of conformity International 2021-11-03

PDF

82,41 kB

Declaration of conformity International 2022-04-26

PDF

164,12 kB
