Rotary potentiometer DALI with power supply, TW, soft-lock, light control 2998
EAN-Nr.
4011334510093
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See all (19)
Compatible products
-
Referenced by 507 products available
Mandatory accessories
-
11371404Centre plate f. rot. dimmer/potentiometer, setting knob, B.7, al. matt lacq.
-
11372045Centre plate f. rot. dimmer/rot. potentiometer, setting knob, R.1/R.3, black gl.
-
11372089Centre plate f. rot. dimmer/rot. potentiometer, setting knob, R.1/R.3, p.wh.gl.
-
11357004Centre plate f.rot. dimmer/potentiometer, setting knob, K.5, steel matt finish
-
11357003Centre plate f. rot. dimmer/rot. potentiometer, setting knob, K.5, al. anodised
-
11357006Centre plate f. rot. dimmer/potentiometer, setting knob, K.1, ant. matt, lacq.
-
11357009Centre plate f. rot. dimmer/rot. potentiometer, setting knob, K.1, p.white gl.
-
11376084 -
11376086Centre plate f.rot. dimmer/potentiometer, setting knob, Q.x, ant.velv.lacq.
-
11376089Centre plate f. rot. dimmer/potentiometer, setting knob, Q.x, p.white velv.
-
11371909Cen. plate f.rot. dimmer/ potentiometer, setting knob, S.1/B.3/B.7, p.wh.m.plas.
-
11308982Cover plate for rot. dimmer/rot. potentiometer, setting knob, S.1, white glossy
-
11308989Cover plate f. rot. dimmer/rot. potentiometer, setting knob, S.1, p.white glossy
-
11309909Cover plate f.rot. dimmer/potentiometer, setting knob, S.1, p.white matt plastic
-
11309939Cover plate f. rot. dimmer/rot. potentiometer, setting knob, S.1, al. matt lacq.
-
11309949Cover plate for rot. dimmer/rot. potentiometer, setting knob, S.1, ant., matt
-
11378982Centre plate for rot. dimmer/rot. potentiometer, setting knob, S.1, white glossy
-
11378989Centre plate f.rot. dimmer/potentiometer, setting knob, S.1/B.3/B.7, p.white gl.
-
11371606Centre plate f. rot. dimmer/rot. potentiometer, setting knob, B.3/B.7, ant. matt
Referenced by
-
10239959Frame 3gang hor., lab. field, S.1, al. matt
-
10119959Frame 1gang, lab. field, S.1, al. matt
-
10119969Frame 1gang, lab. field, S.1, ant., matt
-
10128912Frame 2gang vert., lab. field, S.1, white glossy
-
10128919Frame 2gang vert., lab. field, S.1, p. white glossy
-
10129919Frame 2gang vert., lab. field, S.1, p. white, matt, plastic
-
10129959Frame 2gang vert., lab. field, S.1, al. matt
-
10129969Frame 2gang vert., lab. field, S.1, ant., matt
-
10138912Frame 3gang vert., lab. field, S.1, white glossy
-
10138919Frame 3gang vert., lab. field, S.1, p. white glossy
-
10139919Frame 3gang vert., lab. field, S.1, p. white, matt, plastic
-
10228912Frame 2gang hor., lab. field, S.1, white glossy
-
10228919Frame 2gang hor., lab. field, S.1, p. white glossy
-
10229919Frame 2gang hor., lab. field, S.1, p. white, matt, plastic
-
10229959Frame 2gang hor., lab. field, S.1, al. matt
-
10229969Frame 2gang hor., lab. field, S.1, ant., matt
-
10238912Frame 3gang hor., lab. field, S.1, white glossy
-
10238919Frame 3gang hor., lab. field, S.1, p. white glossy
-
10239919Frame 3gang hor., lab. field, S.1, p. white, matt, plastic
-
10239969Frame 3gang hor., lab. field, S.1, ant., matt
Technical characteristics
Frequency
-
Frequency50 - 60 Hz
Lighting
-
Colour temperature2,000 - 10,000 K
Connectivity
-
Dimming DALIYes
Dimensions
-
Diameter axis4 mm
-
Built-in depth31 mm
-
Height71 mm
-
Width71 mm
-
Depth50 mm
Electric current
-
Control current52 - 52 mA
Texts
-
LightingE.g. fluorescent lamps, NV-halogen lamps and LED
-
Type of connectionWith screw terminals
-
FuseShort-circuit and overload-proof (electronic fuse)
-
Related SystemsK.x, Q.x, R.x, S.x/B.x
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

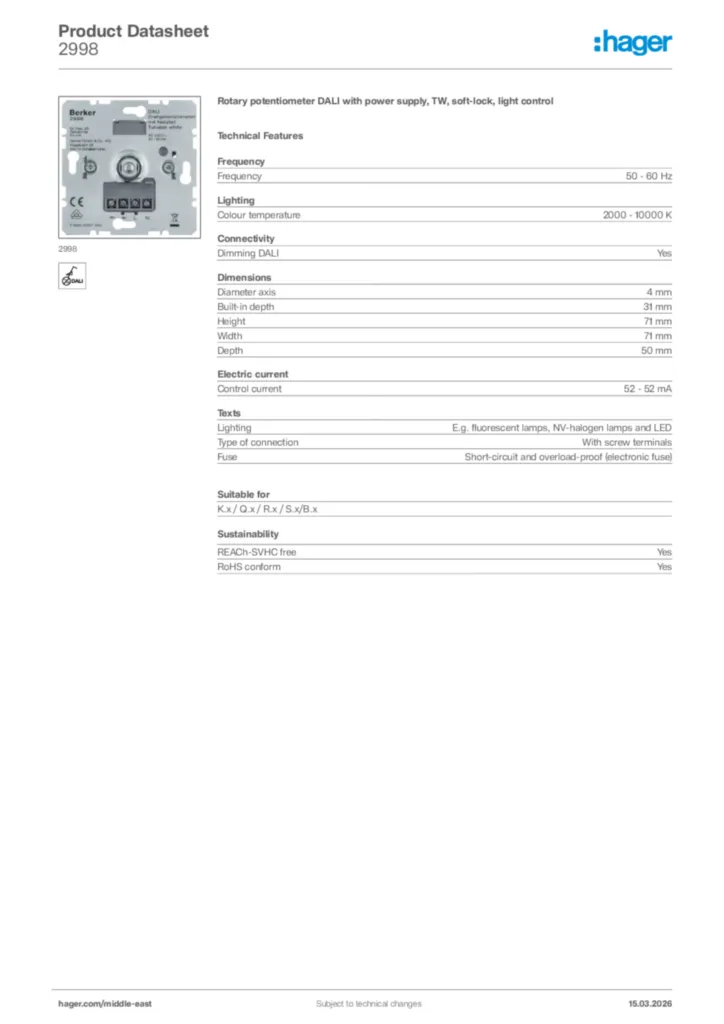

Hager Product data sheet 2998
Rotary potentiometer DALI with power supply, TW, soft-lock, light control
PDF -
Installation manual
Manual for 2997-2998 - Rotary potentiometer DALI, Tunable white (EN, 2019-04)
Installation manual en-GB 2020-01-01
PDF337,82 kB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-03-05
PDF898,01 kB
Declaration of Conformity
Declaration of conformity International 2021-03-05
PDF208,78 kB
