Thermostat,NO contact,Cen. plate,f. heat.,rocker switch,ext.temp.sen.,R.1.3,bl. 20342045
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 142 products available
Referenced by
-
10142114Frame 4gang, R.1, stainless steel/p. white
-
10112216Frame 1gang, R.3, glass black
-
10142209Frame 4gang, R.3, glass p. white
-
10132209Frame 3gang, R.3, glass p. white
-
10122209Frame 2gang, R.3, glass p. white
-
10112209Frame 1gang, R.3, glass p. white
-
10142245Frame 4gang, R.3, black glossy
-
10132245Frame 3gang, R.3, black glossy
-
10122245Frame 2gang, R.3, black glossy
-
10112245Frame 1gang, R.3, black glossy
-
10142289Frame 4gang, R.3, p. white glossy
-
10132289Frame 3gang, R.3, p. white glossy
-
10122289Frame 2gang, R.3, p. white glossy
-
10112289Frame 1gang, R.3, p. white glossy
-
10142104Frame 4gang, R.1, stainless steel/black
-
10132104Frame 3gang, R.1, stainless steel/black
-
10122104Frame 2gang, R.1, stainless steel/black
-
10112104Frame 1gang, R.1, stainless steel/black
-
10112174Frame 1gang, R.1, al./p. white
-
10132116Frame 3gang, R.1, glass black
Technical characteristics
Architecture
-
Control/operation elementRotative
Electric current
-
Rated current16 A
-
Max. switching current16 A
Voltage
-
Nominal voltage230 - 230 V
Power supply
-
Supply voltage230 V AC
Frequency
-
Frequency50 - 50 Hz
Settings
-
Comfort temperature setpoint10 - 50 °C
Materials
-
ColourBlack
-
RAL code9005
-
Surface finishGlossy
-
MaterialMetal, Plastic
-
TreatmentUntreated
Dimensions
-
Height71 mm
-
Width71 mm
-
Depth50.20 mm
Screen
-
With displayNo
Equipment
-
Switching temperature difference1 K
-
Type of thermostatRegulator of heating floor
-
Type of probeFloor heating probe
Connection
-
Type of contacts1NO
Safety
-
Ingress Protection (IP) classIP20
Compatibility
-
Type of HVAC controlHeating
Use conditions
-
Energy efficiency classI (1%)
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

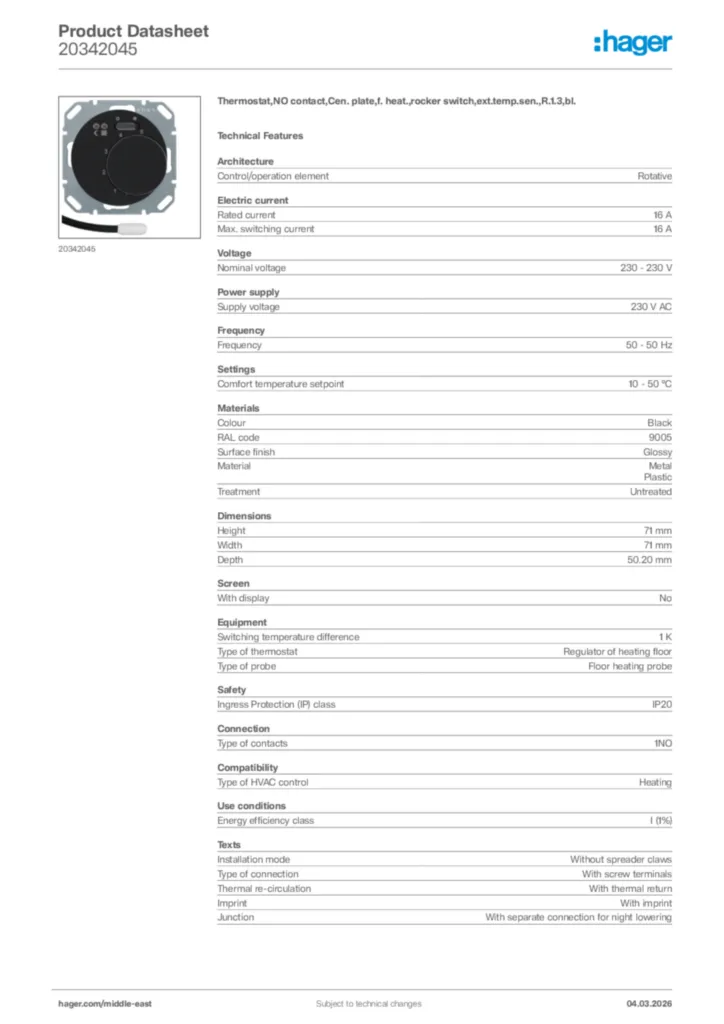

Hager Product data sheet 20342045
Thermostat,NO contact,Cen. plate,f. heat.,rocker switch,ext.temp.sen.,R.1.3,bl.
PDF -
Installation manual
Manual for 203420xx - Thermostat, NO contact, with centre plate, for underfloor heating (DE-EN, 2012-11)
Installation manual en-GB, de-DE 2012-10-31
PDF2,60 MB
Manual for 203420xx - Thermostat, NO contact, with centre plate, for underfloor heating (DE-EN, 2020-11)
Installation manual en-GB, de-DE 2021-02-25
PDF1,34 MB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-09-13
PDF265,57 kB
Declaration of Conformity
Declaration of conformity International 2021-09-13
PDF265,49 kB
