Thermostat, NC contact, centre plate, rocker switch, R.1/R.3, p. white glossy 20302089
EAN-Nr.
4011334377269
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 152 products available
Referenced by
-
10142184Frame 4gang, R.1, al./black
-
10122209Frame 2gang, R.3, glass p. white
-
10112209Frame 1gang, R.3, glass p. white
-
10142245Frame 4gang, R.3, black glossy
-
10132245Frame 3gang, R.3, black glossy
-
10122245Frame 2gang, R.3, black glossy
-
10112245Frame 1gang, R.3, black glossy
-
10142289Frame 4gang, R.3, p. white glossy
-
10132289Frame 3gang, R.3, p. white glossy
-
10122289Frame 2gang, R.3, p. white glossy
-
10112289Frame 1gang, R.3, p. white glossy
-
10142104Frame 4gang, R.1, stainless steel/black
-
10132104Frame 3gang, R.1, stainless steel/black
-
10122104Frame 2gang, R.1, stainless steel/black
-
10112104Frame 1gang, R.1, stainless steel/black
-
10142114Frame 4gang, R.1, stainless steel/p. white
-
10132114Frame 3gang, R.1, stainless steel/p. white
-
10122114Frame 2gang, R.1, stainless steel/p. white
-
10112114Frame 1gang, R.1, stainless steel/p. white
-
10112116Frame 1gang, R.1, glass black
Technical characteristics
Architecture
-
Control/operation elementRotative
Electric current
-
Rated current4 A
-
Max. switching current10 A
Voltage
-
Nominal voltage230-230 V
Power supply
-
Supply voltage230 V AC
Frequency
-
Frequency50 - 60 Hz
Settings
-
Comfort temperature setpoint5 - 30 °C
Materials
-
ColourPolar white
-
RAL code9010
-
Surface finishGlossy
-
MaterialMetal, Plastic
-
TreatmentUntreated
Dimensions
-
Height71 mm
-
Width71 mm
-
Depth47.20 mm
Screen
-
With displayNo
Equipment
-
Switching temperature difference0.50 K
-
Type of thermostatRoom thermostat
-
Type of probeBimetal
-
With heaterYes
Connection
-
Type of contacts1NC
Safety
-
Ingress Protection (IP) classIP20
Compatibility
-
Type of HVAC controlHeating
Use conditions
-
Energy efficiency classI (1%)
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

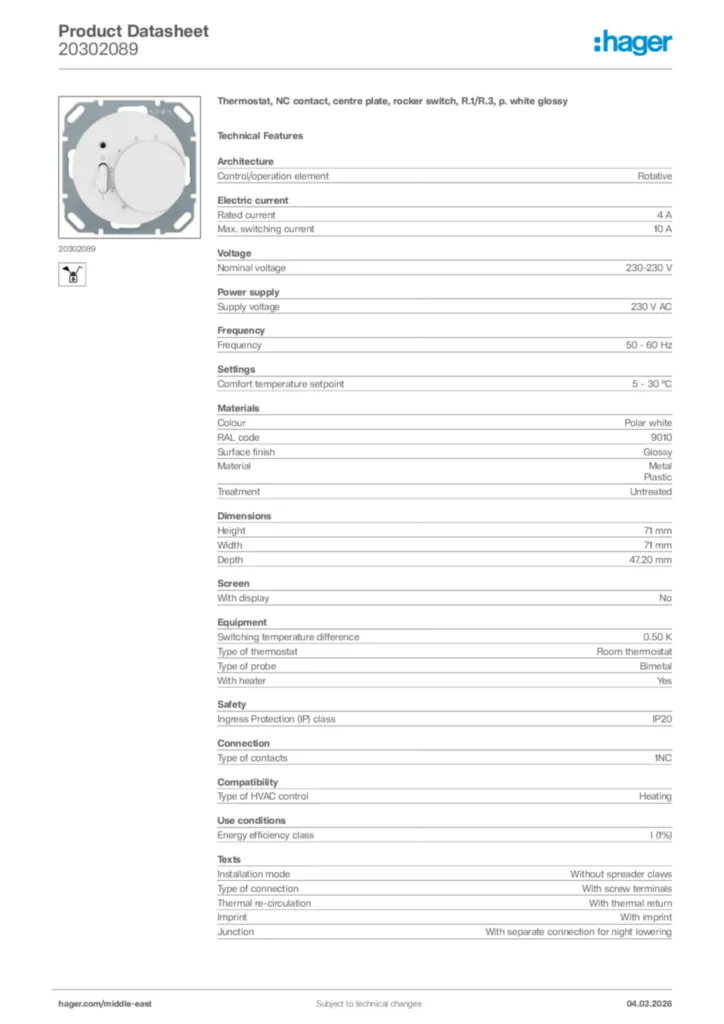

Product datasheet
Hager Product data sheet 20302089
Thermostat, NC contact, centre plate, rocker switch, R.1/R.3, p. white glossy
PDF -
Installation manual
Manual for 202620xx-203020xx - Thermostat, with centre plate, change-over contact/NC contact (DE-EN, 2012-11)
Installation manual en-GB, de-DE 2012-10-25
PDF2,65 MB
Manual for 202620xx-203020xx - Thermostat, with centre plate, change-over contact/NC contact (DE-EN, 2020-11)
Installation manual en-GB, de-DE 2021-02-25
PDF1,37 MB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-09-13
PDF268,89 kB
Declaration of Conformity
Declaration of conformity International 2021-09-13
PDF270,55 kB
