Rocker imprinted symbol for bell, l.lab. field, lens, Q.1/Q.3, p. white velvety 16966079
EAN-Nr.
4011334317531
Packaging
10 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See all (9)
Optional accessories
-
Accessories/spare parts for domestic switching devices 1 products available
Compatible products
-
Referenced by 115 products available
Mandatory accessories
-
503101Push-button NO contact with two signal contacts
-
503203Push-button NC contact and NO contact with isolated input terminals
-
303650Change-over switch for inst. in hollow walls, light control
-
503150Push-button, NO contact for installation in hollow walls, Module inserts
-
3037Intermediate switch, light control
-
5031Rocker push-button NO contact Module insert
-
5036Push-button change-over contact illuminated
-
3036Change-over switch 10AX 250V~, Light control
-
3031Rocker switch off, Module inserts
Referenced by
-
10116109Frame 1gang, Q.7 , polarwhite velvety for illumination
-
10136089Frame 3gang, Q.1, p. white velvety
-
503203
Push-button NC contact and NO contact with isolated input terminals
-
10156076Frame 5gang, glass black
-
10146076Frame 4gang, glass black
-
10136076Frame 3gang, glass black
-
10156079Frame 5gang, glass polarwhite
-
10146079Frame 4gang, glass polarwhite
-
10136079Frame 3gang R.7 glass, polar white
-
10156094Frame 5gang Q.3 alu velvety, lacquered
-
10156096Frame 5gang, Q.3, ant. velvety, lacq.
-
10156099Frame 5gang, Q.3, p. white velvety
-
10116104Frame 1gang, Q.7, alu velvety lacquered for illumination
-
10116106Frame 1gang, Q.7, anthracite velvety, lacquered for illumination
-
10156189Frame 5gang, Q.7 , polarwhite velvety
-
10136186Frame 3gang, Q.7 , anthracite velvety, lacquered
-
10126186Frame 2gang, Q.7 , anthracite velvety, lacquered
-
10116186Frame 1gang, Q.7 , anthracite velvety, lacquered
-
10146186Frame 4gang, Q.7 , anthracite velvety, lacquered
-
10146189Frame 4gang, Q.7 , polarwhite velvety

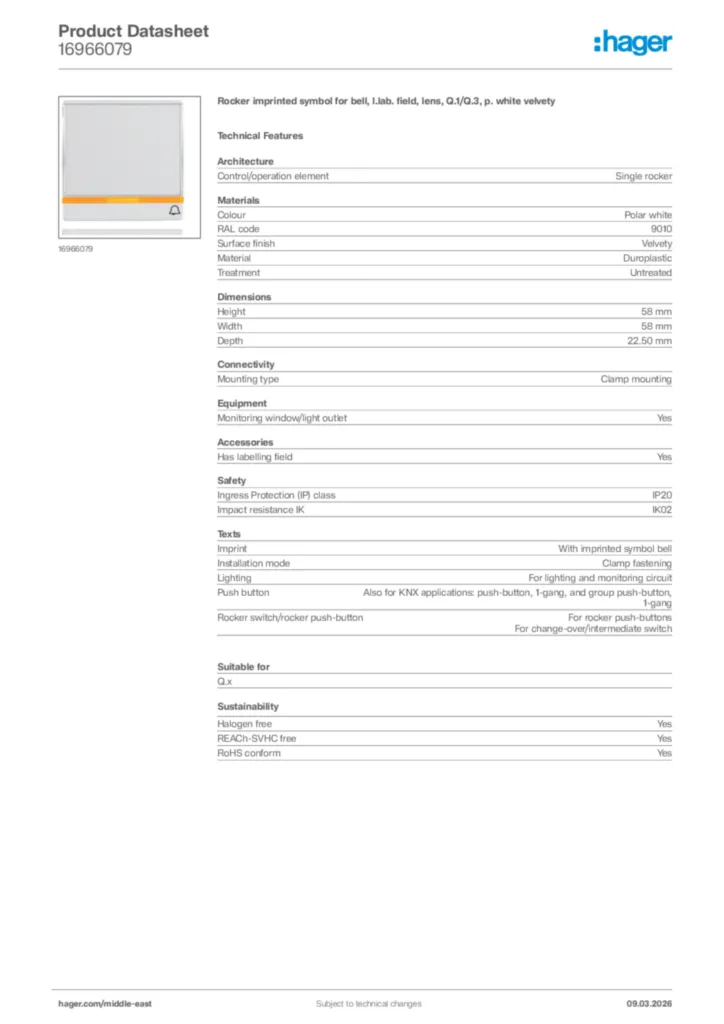

Technical characteristics
Architecture
-
Control/operation elementSingle rocker
Materials
-
ColourPolar white
-
RAL code9010
-
Surface finishVelvety
-
MaterialDuroplastic
-
TreatmentUntreated
Dimensions
-
Height58 mm
-
Width58 mm
-
Depth22.50 mm
Connectivity
-
Mounting typeClamp mounting
Equipment
-
Monitoring window/light outletYes
Accessories
-
Has labelling fieldYes
Safety
-
Ingress Protection (IP) classIP20
-
Impact resistance IKIK02
-
Related SystemsQ.x
