Change-over switch for inst. in hollow walls, light control 303650
EAN-Nr.
4011334238850
Packaging
10 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See all (106)
Optional accessories
-
Illumination insert for domestic switching devices 9 products available -
Accessories/spare parts for domestic switching devices 1 products available
Compatible products
-
Referenced by 597 products available
Mandatory accessories
-
16961606Rocker , l.lab. field, lens, B.3/B.7, ant., matt
-
16218989Rocker, lens, S.1/B.3/B.7, p. white glossy
-
16261404Rocker, lab. field, B.7, al., matt, lacq.
-
16261606Rocker, lab. field, B.3/B.7, ant., matt
-
16261909Rocker, lab. field, S.1/B.3/B.7, p. white, matt, plastic
-
16268989Rocker, lab. field, S.1/B.3/B.7, p. white glossy
-
16216074Rocker w. 2 lenses attached and imprinted light symbol, Q.x, alu velvety, lacq.
-
16216076Rocker imprinted symbol for light, lens, Q.1/Q.3, ant. velvety, lacq.
-
16216079Rocker imprinted symbol for light, lens, Q.1/Q.3, p. white velvety
-
16288982Rocker, lab. field, lens, S.1, white glossy
-
16961404Rocker , l.lab. field, lens, B.7, al., matt, lacq.
-
16206084Rocker, Q.x, aluminium velvet, lacquered
-
16961909Rocker , l.lab. field, lens, S.1/B.3/B.7, p. white, matt, plastic
-
16968989Rocker , l.lab. field, lens, S.1/B.3/B.7, p. white glossy
-
16216084Rocker with 2 lenses attached, Q.x, aluminium velvety, lacquered
-
16216086Rocker, lens, Q.x, ant. velvety, lacq.
-
16216089Rocker, lens, Q.x, p. white velvety
-
16281404Rocker, lab. field, lens, B.7, al., matt, lacq.
-
16281606Rocker, lab. field, lens, B.3/B.7, ant., matt
-
16281909Rocker, lab. field, lens, S.1/B.3/B.7, p. white, matt, plastic
Complete your system
-
1675
Neon lamp unit N terminal, light control, grey
-
167504Neon lamp unit N terminal, light control, orange
-
1686LED unit 230 V, for switches/push-buttons, light control, white
-
168601LED unit 230 V, for switches/push-buttons, light control, black
-
1687LED unit for switches/push-buttons, light control, blue
-
1676Glow lamp unit N-terminal, light control, brown
-
167602Glow lamp unit N-terminal, light control, yellow
-
167601Glow lamp unit N-terminal, light control, green
-
167603Glow lamp unit N-terminal, light control, red
Referenced by
-
10239959Frame 3gang hor., lab. field, S.1, al. matt
-
10119959Frame 1gang, lab. field, S.1, al. matt
-
10119969Frame 1gang, lab. field, S.1, ant., matt
-
10128912Frame 2gang vert., lab. field, S.1, white glossy
-
10128919Frame 2gang vert., lab. field, S.1, p. white glossy
-
10129919Frame 2gang vert., lab. field, S.1, p. white, matt, plastic
-
10129959Frame 2gang vert., lab. field, S.1, al. matt
-
10129969Frame 2gang vert., lab. field, S.1, ant., matt
-
10138912Frame 3gang vert., lab. field, S.1, white glossy
-
10138919Frame 3gang vert., lab. field, S.1, p. white glossy
-
10139919Frame 3gang vert., lab. field, S.1, p. white, matt, plastic
-
10228912Frame 2gang hor., lab. field, S.1, white glossy
-
10228919Frame 2gang hor., lab. field, S.1, p. white glossy
-
10229919Frame 2gang hor., lab. field, S.1, p. white, matt, plastic
-
10229959Frame 2gang hor., lab. field, S.1, al. matt
-
10229969Frame 2gang hor., lab. field, S.1, ant., matt
-
10238912Frame 3gang hor., lab. field, S.1, white glossy
-
10238919Frame 3gang hor., lab. field, S.1, p. white glossy
-
10239919Frame 3gang hor., lab. field, S.1, p. white, matt, plastic
-
10239969Frame 3gang hor., lab. field, S.1, ant., matt
Technical characteristics
Electric current
-
Switching current10 AX (100W LED (SBL))
-
Rated current10 A
Installation, mounting
-
Mounting onFlush mounting
Voltage
-
Rated voltage250 V
Materials
-
Surface finishMatt
-
MaterialMetal, Plastic
Identification
-
Assembly arrangementBasic element
Connectivity
-
Mounting typeScrew mounting
Controls and indicators
-
Number of buttons2
Dimensions
-
Built-in depth19.50 mm
-
Built-in depth flush-mounted boxes35 mm
Safety
-
Ingress Protection (IP) classIP20
Architecture
-
Control/operation elementSingle rocker
Texts
-
Installation modeLow installation depth, For screw fastening, Without spreader claws
-
Type of connectionWith plug-in terminals
-
LightingFor lighting and monitoring circuit
-
Switch modeOff/change-over
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

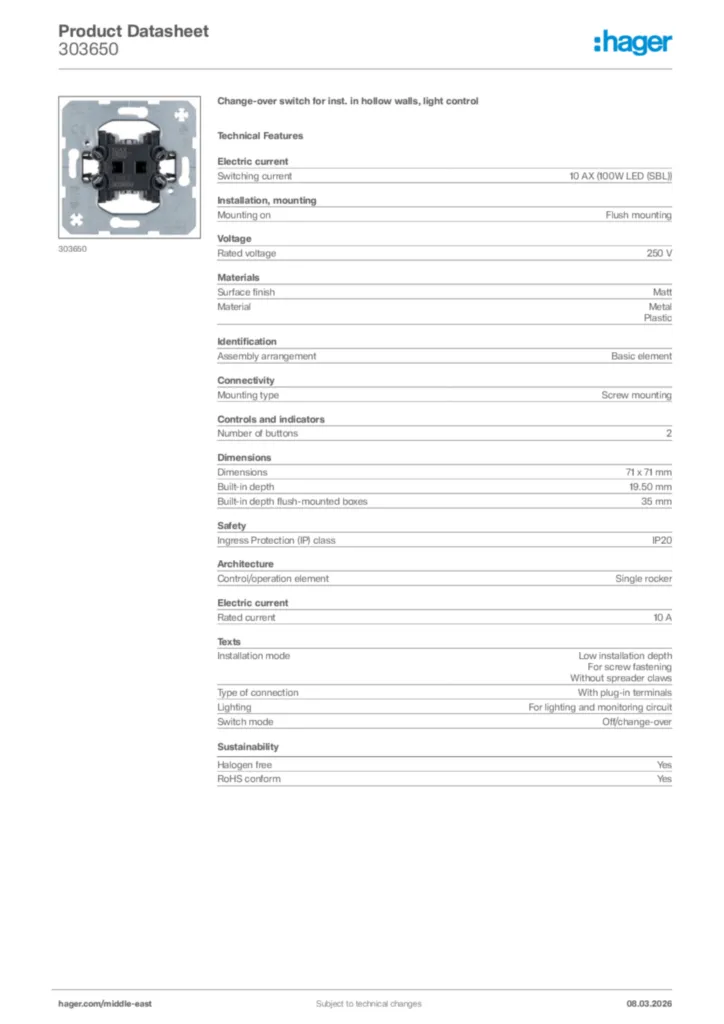

Product datasheet
Hager Product data sheet 303650
Change-over switch for inst. in hollow walls, light control
PDF -
Declaration of conformity
EU Declaration of Conformity
dc24-1015
PDF334,72 kB
