Rocker , l.lab. field, lens, K.1, p. white glossy 14967009
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See all (9)
Optional accessories
-
Accessories/spare parts for domestic switching devices 1 products available
Compatible products
-
Referenced by 43 products available
Mandatory accessories
-
503101Push-button NO contact with two signal contacts
-
503203Push-button NC contact and NO contact with isolated input terminals
-
303650Change-over switch for inst. in hollow walls, light control
-
503150Push-button, NO contact for installation in hollow walls, Module inserts
-
3037Intermediate switch, light control
-
5031Rocker push-button NO contact Module insert
-
5036Push-button change-over contact illuminated
-
3036Change-over switch 10AX 250V~, Light control
-
3031Rocker switch off, Module inserts
Referenced by
-
13337004Frame 3gang vert., K.5, stainless steel, metal matt finish
-
303650
Change-over switch for inst. in hollow walls, light control
-
13537004Frame 5gang vert., K.5, stainless steel, metal matt finish
-
503150
Push-button, NO contact for installation in hollow walls, Module inserts
-
3037
Intermediate switch, light control
-
5031
Rocker push-button NO contact Module insert
-
5036
Push-button change-over contact illuminated
-
3036
Change-over switch 10AX 250V~, Light control
-
3031
Rocker switch off, Module inserts
-
13137009Frame 1gang, K.1, p. white glossy
-
13437004Frame 4gang vert., K.5, stainless steel, metal matt finish
-
13937004Frame 5gang hor., K.5, stainless steel, metal matt finish
-
13837004Frame 4gang hor., K.5, stainless steel, metal matt finish
-
13737004Frame 3gang hor., K.5, stainless steel, metal matt finish
-
13637004Frame 2gang hor., K.5, stainless steel, metal matt finish
-
13937003Frame 5gang hor., K.5, al., al. anodised
-
13837003Frame 4gang hor., K.5, al., al. anodised
-
13637003Frame 2gang hor., K.5, al., al. anodised
-
13537006Frame 5gang vert., K.1, ant. matt, lacq.
-
13437006Frame 4gang vert., K.1, ant. matt, lacq.

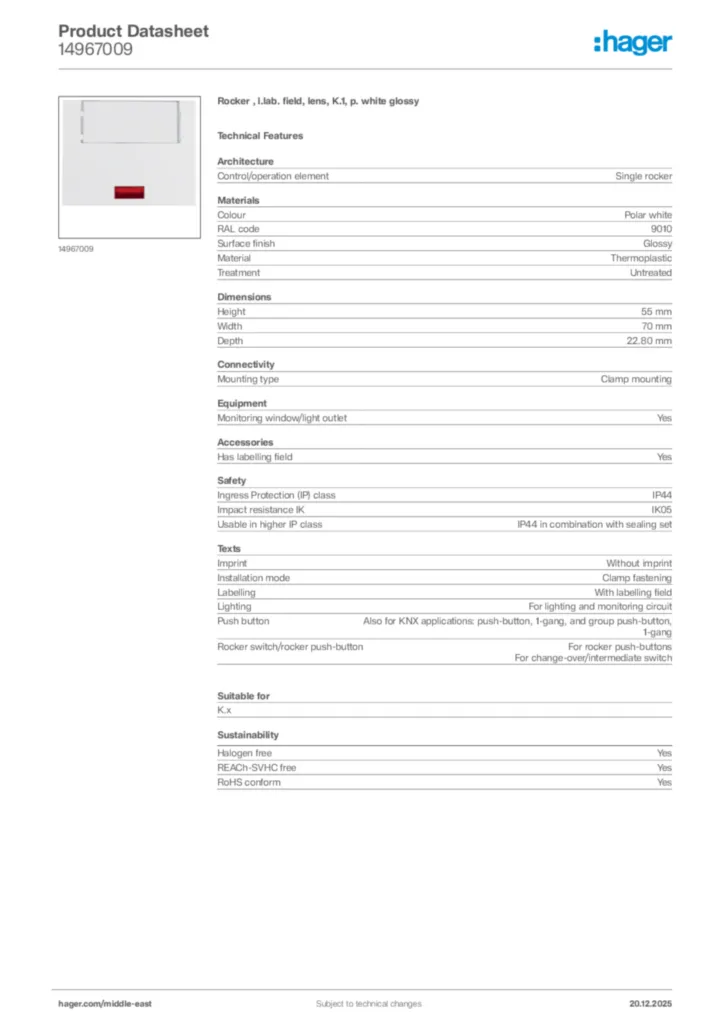

Technical characteristics
Architecture
-
Control/operation elementSingle rocker
Materials
-
ColourPolar white
-
RAL code9010
-
Surface finishGlossy
-
MaterialThermoplastic
-
TreatmentUntreated
Dimensions
-
Height55 mm
-
Width70 mm
-
Depth22.80 mm
Connectivity
-
Mounting typeClamp mounting
Equipment
-
Monitoring window/light outletYes
Accessories
-
Has labelling fieldYes
Safety
-
Ingress Protection (IP) classIP44
-
Impact resistance IKIK05
-
Usable in higher IP classIP44 in combination with sealing set
-
Related SystemsK.x
