Loudspeaker connection boxes-insert hinged cover surf.-/flushmtd,labfield,W.1,wh 11963522
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See all (5)
Compatible products
-
Referenced by 9 products available
Mandatory accessories
-
6719323502Surface-mounted lower casing 2gang horizontal, w. frame and cable entries W.1 pw
-
13283502Frame 1gang for flush-mounted installation, with sealing, W.1, polar white
-
13303502Frame 3g horizontal for flush-mounted installation, with sealing W.1p-w
-
13293502Frame 2gang horizontal for flush-mounted installation, with sealing, W.1, p-w
-
13293512Frame 2gang vertical for flush-mounted installation, with sealing, W.1, p-w
Referenced by
-
13383513Frame 1gang, can be illuminated 230 V, for housing surface-mtd, W.1, blue
-
13283502
Frame 1gang for flush-mounted installation, with sealing, W.1, polar white
-
13303502
Frame 3g horizontal for flush-mounted installation, with sealing W.1p-w
-
13293502
Frame 2gang horizontal for flush-mounted installation, with sealing, W.1, p-w
-
13293512
Frame 2gang vertical for flush-mounted installation, with sealing, W.1, p-w
-
13303505Frame 3g horizontal for flush-mounted installation, with sealing W.1light grey
-
13293515Frame 2gang vertical for flush-mounted installation, with sealing W.1 light grey
-
13293505Frame 2gang hor. for flush-mtd inst., sealing, W.1 ECO, light grey matt
-
13283505Frame 1gang for flush-mtd inst., sealing, W.1 ECO, light grey matt
Technical characteristics
Connection
-
Connector/plug typeLoudspeaker socket
-
Conductor cross-section2.50 - 2.50 mm²
Materials
-
ColourPolar white
-
RAL code9010
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentUntreated
Dimensions
-
Height70 mm
-
Width70 mm
-
Depth51 mm
-
Built-in depth flush-mounted boxes35 mm
Connectivity
-
Mounting typeScrew mounting
Equipment
-
ShieldedNo
-
With dust coverYes
Safety
-
Ingress Protection (IP) classIP55
-
Impact resistance IKIK05
-
Related SystemsW.1
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

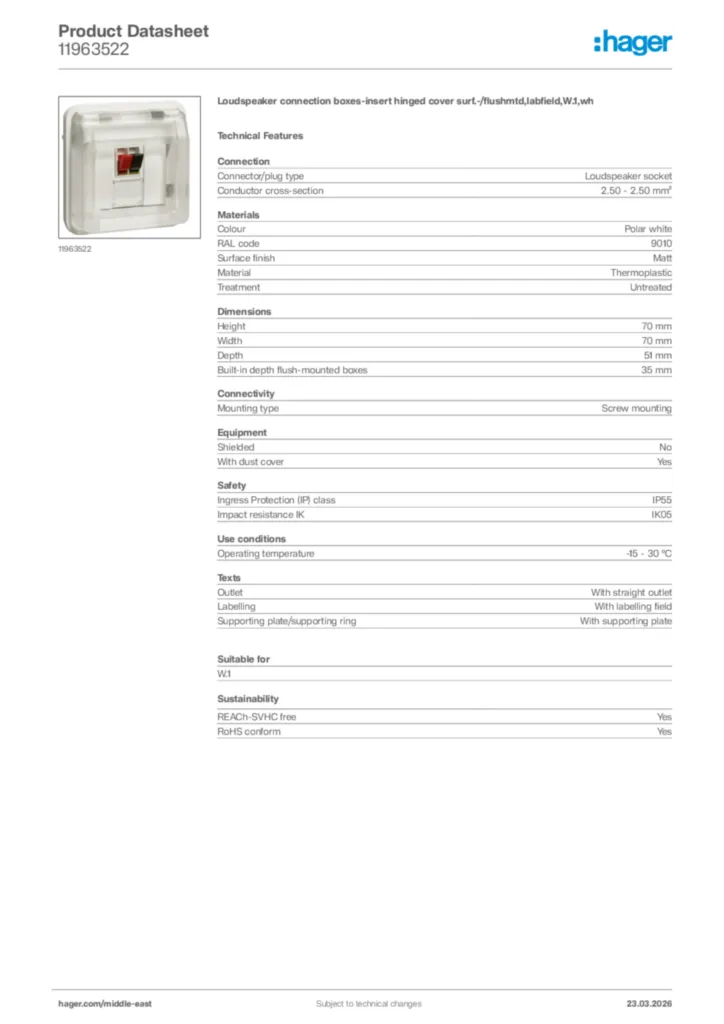

Hager Product data sheet 11963522
Loudspeaker connection boxes-insert hinged cover surf.-/flushmtd,labfield,W.1,wh
PDF -
Technical appendix (single product)
Splash-protected range W.1 - Chemical resistance (EN, 07-2021)
Technical appendix (single product) en-GB 2015-07-13
PDF518,42 kB -
Declaration of conformity
Declaration of conformity International 2021-08-04
PDF79,70 kB
Declaration of conformity International 2022-04-26
PDF164,12 kB
