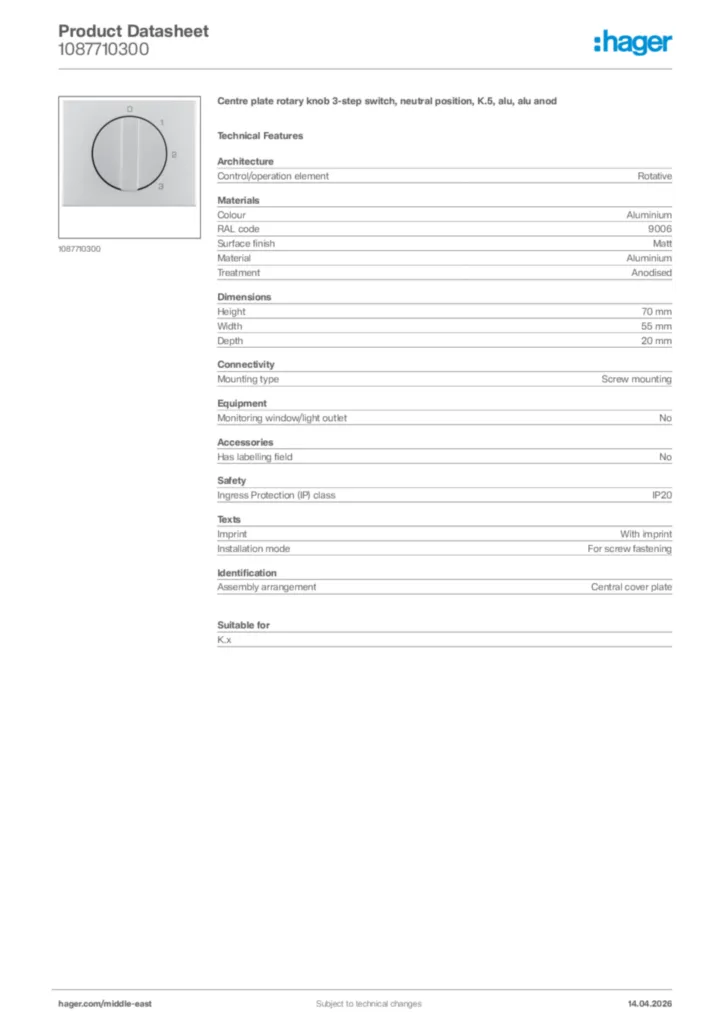

Centre plate rotary knob 3-step switch, neutral position, K.5, alu, alu anod 1087710300
EAN-Nr.
4011334507987
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for domestic switching devices 1 products available
Compatible products
-
Referenced by 37 products available
Referenced by
-
13837004Frame 4gang hor., K.5, stainless steel, metal matt finish
-
13937006Frame 5gang hor., K.1, ant. matt, lacq.
-
13337006Frame 3gang vert., K.1, ant. matt, lacq.
-
13437006Frame 4gang vert., K.1, ant. matt, lacq.
-
13537006Frame 5gang vert., K.1, ant. matt, lacq.
-
13637003Frame 2gang hor., K.5, al., al. anodised
-
13837003Frame 4gang hor., K.5, al., al. anodised
-
13937003Frame 5gang hor., K.5, al., al. anodised
-
13637004Frame 2gang hor., K.5, stainless steel, metal matt finish
-
13737004Frame 3gang hor., K.5, stainless steel, metal matt finish
-
13837006Frame 4gang hor., K.1, ant. matt, lacq.
-
13937004Frame 5gang hor., K.5, stainless steel, metal matt finish
-
13337004Frame 3gang vert., K.5, stainless steel, metal matt finish
-
13437004Frame 4gang vert., K.5, stainless steel, metal matt finish
-
13537004Frame 5gang vert., K.5, stainless steel, metal matt finish
-
3861033-step switch, with neutral-position, HVAC control
-
3861133-step switch, HVAC control
-
13637009Frame 2gang hor., K.1, p. white glossy
-
13137009Frame 1gang, K.1, p. white glossy
-
13237004Frame 2gang vert., K.5, stainless steel, metal matt finish
Technical characteristics
Architecture
-
Control/operation elementRotative
Materials
-
ColourAluminium
-
RAL code9006
-
Surface finishMatt
-
MaterialAluminium
-
TreatmentAnodised
Dimensions
-
Height70 mm
-
Width55 mm
-
Depth20 mm
Connectivity
-
Mounting typeScrew mounting
Equipment
-
Monitoring window/light outletNo
Accessories
-
Has labelling fieldNo
Safety
-
Ingress Protection (IP) classIP20
-
Related SystemsK.x
