    • Home
    • Catalog
    • Distri­bu­tion systems
    • Small distri­bu­tion boards up to 63 A and multi­media boards
    • volta enclos­ures
    • VU36ET
    EAN
    3250616614444
    Packaging
    1 Piece
    • volta enclos­ures

    Encl.,Volta,flush,3x12MOD,IP30,Version Spain,transparent door VU36ET

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Encl.,Volta,flush,3x12MOD,IP30,Version Spain,transparent door

    VU36ET

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

  • See more (15)
    • Cover strip 3 products available
    • Accessor­ies/s­pare parts for terminals 3 products available
    • Lock system 2 products available
    • Compon­ents for arrange­ment/baying system 1 products available
    • Cover­/in­fill panel/iden­ti­fic­a­tion strip 3 products available
    • Cleaning product 1 products available

    Complete your system

    • Cover strip
    • Accessor­ies/s­pare parts for terminals
    • Lock system
    • Compon­ents for arrange­ment/baying system
    • Cover­/in­fill panel/iden­ti­fic­a­tion strip
    • Cleaning product
    • Door/­op­er­ating panel
    • Quick­-re­lease fastener for housing covers
    • P012

      Cover strips, universal, for 12 module
      0.00 €  / *
    • P031F

      Cover strips, universal, for 1/2 module
      0.00 €  / *
    • P032F

      Cover strips, universal, for 1 module
      0.00 €  / *
    • VZ711

      Temrinal base, volta, for distributor size 12M, golf, vector, accessory
      0.00 €  / *
    • VZ523

      PE/N-Terminal support, Volta, with brass Terminals 22 connections
      0.00 €  / *
    • VZ524

      PE/N-Terminal support, Volta, with brass Terminals 25 connections
      0.00 €  / *
    • VZ302N

      Key lock, Volta, standard, for installation in door handle
      0.00 €  / *
    • VZ303

      VOLTA LOOK FOR STANDARD DOOR HANDLE
      0.00 €  / *
    • VZ410N

      Connecting bracket, Volta, for wall boxes
      0.00 €  / *
    • VZ113N

      Elevation frame, Volta, 3rows
      0.00 €  / *
    • VZ717

      Marking system, Volta, 10 pieces
      0.00 €  / *
    • VZ602

      Marking foil/-stripe, Volta, 10 pieces
      0.00 €  / *
    • VZ404

      Cleaning spray, volta, for plastic surfaces
      0.00 €  / *
    • VZ103N

      Door frame, Volta, 3rows, with Door, RAL 9010
      0.00 €  / *
    • VZ225N

      Locking bolt, Volta, for Cover, spare part
      0.00 €  / *

    Technical properties

    Voltage
    • Nominal voltage
      400 - 400 V
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Flush mounting
    Elec­tric current
    • Rated current
      63 A
    Power
    • Maximum power loss per cabinet at ΔT=20K
      22.50 W
    Equip­ment
    • Number of rails
      3
    • Number of rows
      3
    • Number of section in width
      1
    • With lock
      No
    • Has neutral terminal block
      No
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      36
    • Number of half modules terminals per rail
      72
    Func­tions
    • With conduit inlets
      Yes
    Dimen­sions
    • Height
      630.50 mm
    • Width
      348 mm
    • Depth
      94.50 mm
    • Built-in height
      615 mm
    • Built-in width
      335 mm
    • Built-in depth
      90 mm
    • Number of width units
      12
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      0
    • Door/­cover is trans­parent
      Yes
    Connectivity
    • Mounting type
      Screw mounting
    Mater­ials
    • Material
      Plastic
    • RAL code
      9010
    • Colour
      Pure white
    • Ultra­vi­olet-res­istant
      Yes
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Snap on lock, Without lock
    • Glow wire test
      650 °C

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP document en-GB 2024-07-09
    PDF
    346,23 kB
    Hager REACH declaration VU36ET
    PDF
    Hager RoHS report VU36ET
    PDF

    Downloads

    • Image VU36ET | Hager Africa

      Product Image VU36ET

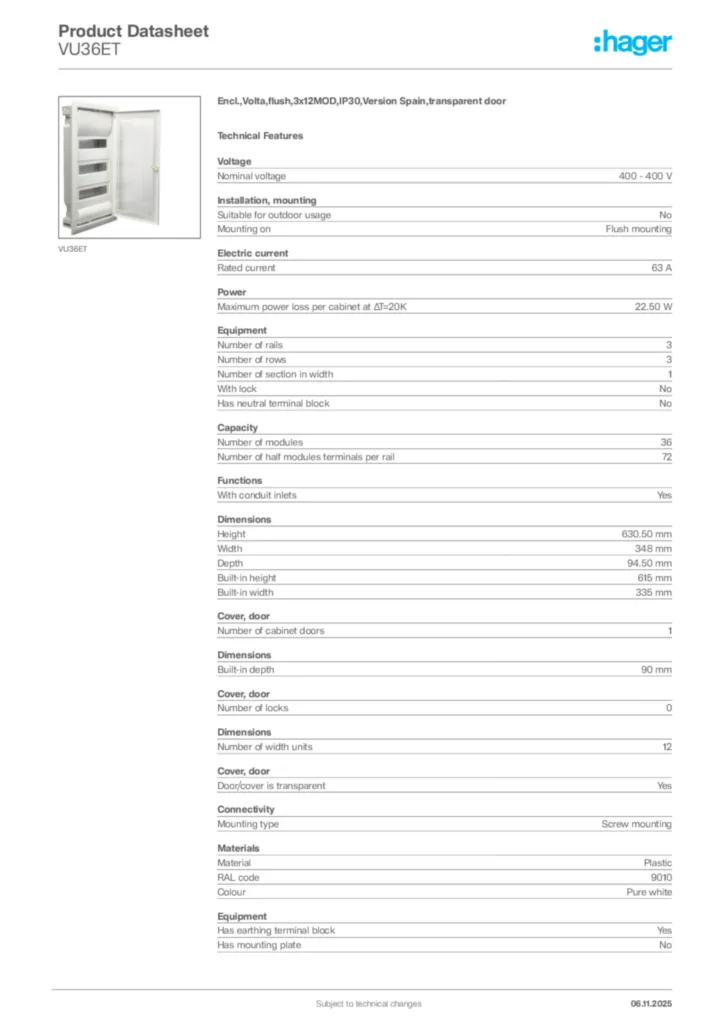

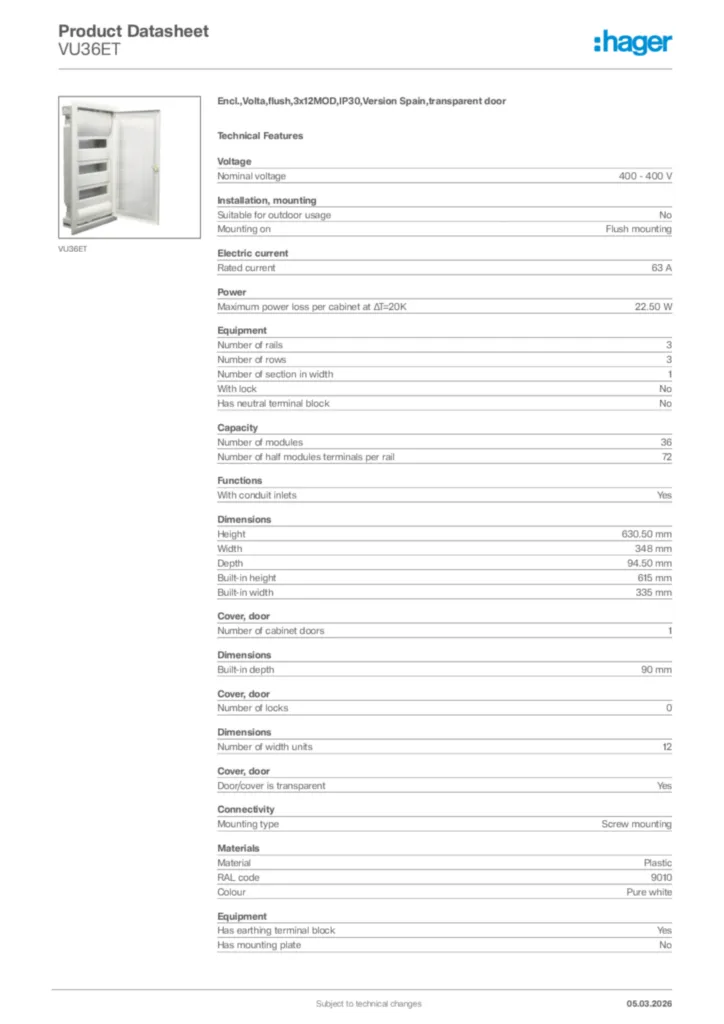

    • Product datasheet

      Image Hager Product data sheet VU36ET | Hager Africa

      Hager Product data sheet VU36ET

      Encl.,Volta,flush,3x12MOD,IP30,Version Spain,transparent door

      PDF

    • Instruction manual

      Image Instruction manual International 2024-11-21 | Hager Africa

      Instruction manual International 2024-11-21

      PDF
      9,98 MB

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2023-08-16

      PDF
      359,72 kB
      Image Declaration of conformity International 2023-08-07 | Hager Africa

      Declaration of conformity International 2023-08-07

      PDF
      366,52 kB
