Encl.,Volta,flush,2x12MOD,IP30,Version NCEE VU24NE

EAN
3250616614390
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Encl.,Volta,flush,2x12MOD,IP30,Version NCEE

VU24NE

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (15)
    • Door/­op­er­ating panel 2 products available
    • Accessor­ies/s­pare parts for terminals 3 products available
    • Lock system 2 products available
    • Compon­ents for arrange­ment/baying system 1 products available
    • Cover­/in­fill panel/iden­ti­fic­a­tion strip 3 products available
    • Cleaning product 1 products available

    Complete your system

    • Door/­op­er­ating panel
    • Accessor­ies/s­pare parts for terminals
    • Lock system
    • Compon­ents for arrange­ment/baying system
    • Cover­/in­fill panel/iden­ti­fic­a­tion strip
    • Cleaning product
    • Cover strip
    • Quick­-re­lease fastener for housing covers
    • VZ132N

      Door, Volta, flush/Hollow wall, transparent, 2rows
      0.00 €  / *
    • VZ102N

      Door frame, Volta, 2rows, with Door, RAL 9010
      0.00 €  / *
    • VZ711

      Temrinal base, volta, for distributor size 12M, golf, vector, accessory
      0.00 €  / *
    • VZ523

      PE/N-Terminal support, Volta, with brass Terminals 22 connections
      0.00 €  / *
    • VZ524

      PE/N-Terminal support, Volta, with brass Terminals 25 connections
      0.00 €  / *
    • VZ302N

      Key lock, Volta, standard, for installation in door handle
      0.00 €  / *
    • VZ303

      VOLTA LOOK FOR STANDARD DOOR HANDLE
      0.00 €  / *
    • VZ410N

      Connecting bracket, Volta, for wall boxes
      0.00 €  / *
    • VZ112N

      Elevation frame, Volta, 2rows
      0.00 €  / *
    • VZ717

      Marking system, Volta, 10 pieces
      0.00 €  / *
    • VZ602

      Marking foil/-stripe, Volta, 10 pieces
      0.00 €  / *
    • VZ404

      Cleaning spray, volta, for plastic surfaces
      0.00 €  / *
    • P031F

      Cover strips, universal, for 1/2 module
      0.00 €  / *
    • P032F

      Cover strips, universal, for 1 module
      0.00 €  / *
    • VZ225N

      Locking bolt, Volta, for Cover, spare part
      0.00 €  / *

    Technical properties

    Voltage
    • Nominal voltage
      400 - 400 V
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Flush mounting
    Elec­tric current
    • Rated current
      63 A
    Power
    • Maximum power loss per cabinet at ΔT=20K
      17.50 W
    Equip­ment
    • Number of rails
      2
    • Number of rows
      2
    • Number of section in width
      1
    • With lock
      No
    • Has neutral terminal block
      No
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      24
    • Number of half modules terminals per rail
      48
    Func­tions
    • With conduit inlets
      Yes
    Dimen­sions
    • Height
      505.50 mm
    • Width
      348 mm
    • Depth
      98 mm
    • Built-in height
      490 mm
    • Built-in width
      314.50 mm
    • Built-in depth
      89 mm
    • Number of width units
      12
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      0
    • Door/­cover is trans­parent
      No
    Connectivity
    • Mounting type
      Screw mounting
    Mater­ials
    • Material
      Plastic
    • RAL code
      9010
    • Colour
      Pure white
    • Ultra­vi­olet-res­istant
      Yes
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Snap on lock, Without lock
    • Glow wire test
      650 °C

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Encl.,gamma,surface m.,26 M,version FR
    PDF
    1,48 MB
    Hager REACH declaration VU24NE
    PDF
    Hager RoHS report VU24NE
    PDF

    Downloads

    • Image VU24NE | Hager Africa

      Product Image VU24NE

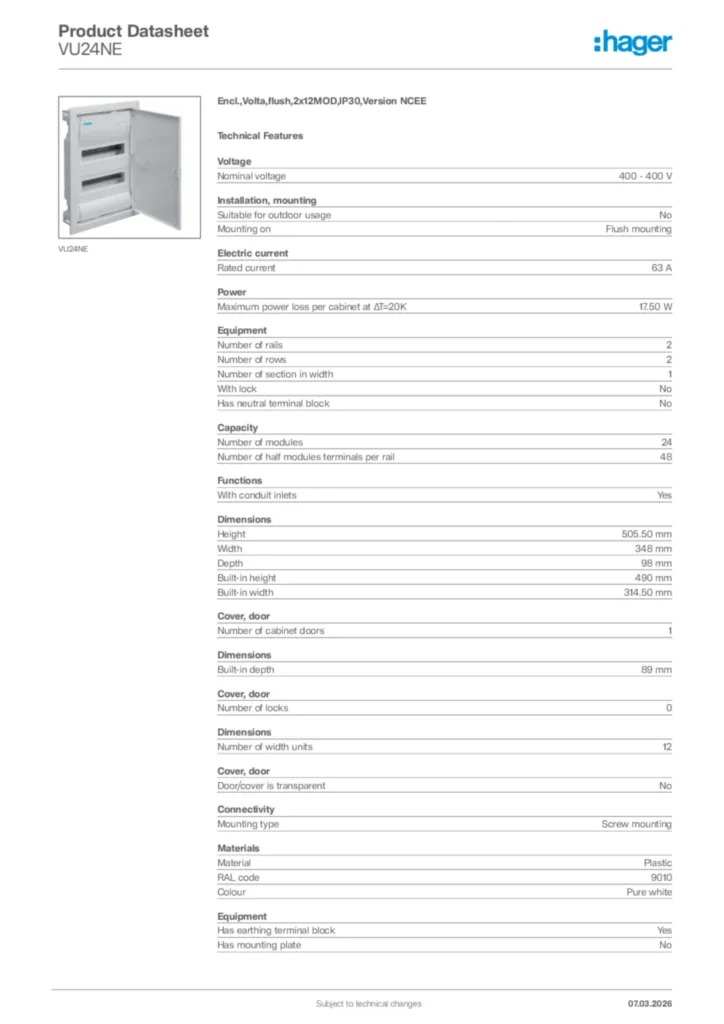

    • Product datasheet

      Image undefined | Hager Africa

      undefined

      PDF

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2023-08-16

      PDF
      359,72 kB
      Image Declaration of conformity International 2023-08-07 | Hager Africa

      Declaration of conformity International 2023-08-07

      PDF
      366,52 kB
