    • Home
    • Catalog
    • Distri­bu­tion systems
    • Small distri­bu­tion boards up to 160 A
    • vega
    • VB418B
    EAN
    3250611019756
    Packaging
    1 Piece
    • vega

    Small distributor,vega,surface,4row,72M,IP40,QC-terminal,PE,white door VB418B

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Small distributor,vega,surface,4row,72M,IP40,QC-terminal,PE,white door

    VB418B

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

  • See more (13)
    • Lock system 1 products available
    • Common Accessories 2 products available
    • Cable guide for enclos­ures/cab­inets 3 products available
    • Cover­/in­fill panel/iden­ti­fic­a­tion strip 1 products available
    • Compon­ents for arrange­ment/baying system 2 products available
    • Cable entry 2 products available

    Complete your system

    • Lock system
    • Common Accessories
    • Cable guide for enclos­ures/cab­inets
    • Cover­/in­fill panel/iden­ti­fic­a­tion strip
    • Compon­ents for arrange­ment/baying system
    • Cable entry
    • Cleaning product
    • Coax connector
    • VZ311PVB

      Key lock, vega, type 405E, 2keys, for white doors, 1-4row
      0.00 €  / *
    • VZ041VB

      IP41 kit, vega, slider with load attachment plate, roof, seal, RAL9010
      0.00 €  / *
    • VZ009VB

      Protection class II plug, vega, kit with easy wall fixation and plugs
      0.00 €  / *
    • VZ014VB

      Trunking Kit, vega, 25x60mm, horizontal, 1 to 4 row
      0.00 €  / *
    • VZ013VB

      Trunking Kit, vega, 25x60mm, 4row, vertical
      0.00 €  / *
    • VZ012VB

      Trunking Kit, vega, 25x60mm, 3row, vertical
      0.00 €  / *
    • VZ011VB

      Labeling Set, vega, 18 Module, 4 labeling strips, 4 protection cover
      0.00 €  / *
    • VZ006VB

      Kit for connection, vega, vertical, internal wiring, for 1-4 row enclosure
      0.00 €  / *
    • VZ005VB

      Kit for connection, vega, horizontal, internal wiring, for 1-4 row enclosure
      0.00 €  / *
    • VZ003VB

      Slider, vega, with flange plate with cable inlet IP40
      0.00 €  / *
    • VZ001VB

      Slider, vega, for trunking inlet, max. section 90x300mm
      0.00 €  / *
    • VZ404

      Cleaning spray, volta, for plastic surfaces
      0.00 €  / *
    • TN010S

      Coax Modul F/F
      0.00 €  / *

    Technical properties

    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      125 A
    Equip­ment
    • Number of rails
      4
    • Number of rows
      4
    • With lock
      No
    • Has neutral terminal block
      No
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      72
    Dimen­sions
    • Height
      775 mm
    • Width
      400 mm
    • Depth
      146 mm
    • Number of width units
      18
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      1
    • Door/­cover is trans­parent
      No
    Mater­ials
    • Material
      Poly­styrene (PS)
    • RAL code
      9010
    • Colour
      White
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP40
    • Locking type
      Snap on lock, Without lock
    • Glow wire test
      650 °C

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - ENCLOSURE SURFACE GAMMA 26 M (english)
    PDF
    25,39 MB
    Hager REACH declaration VB418B
    PDF
    Hager RoHS report VB418B
    PDF

    Downloads

    • Image VB418B | Hager Africa

      Product Image VB418B

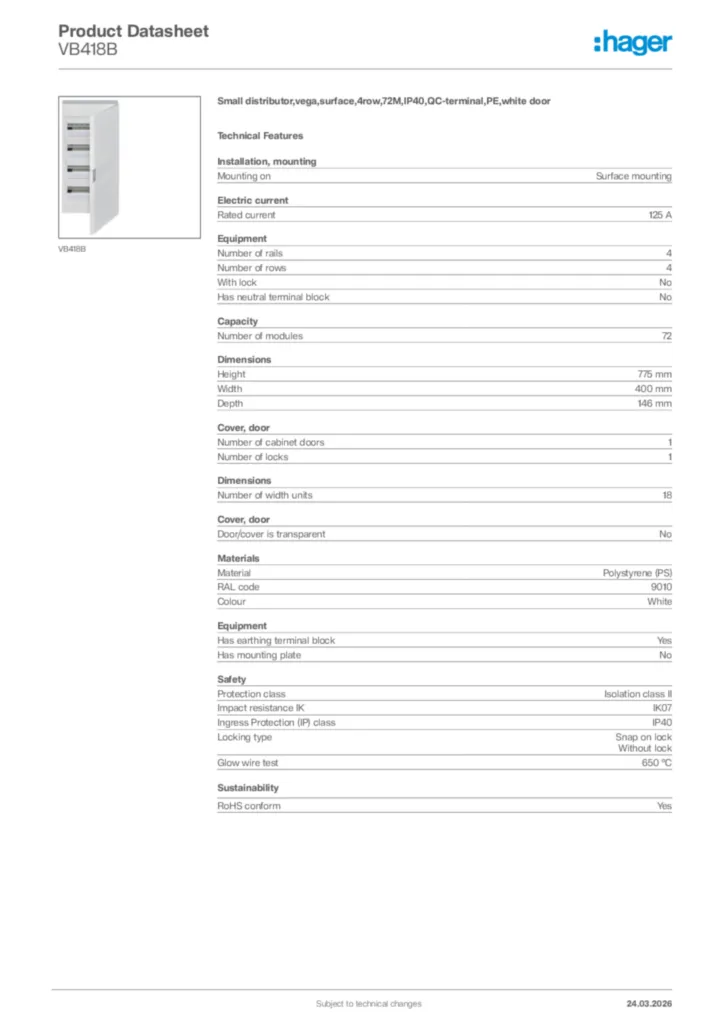

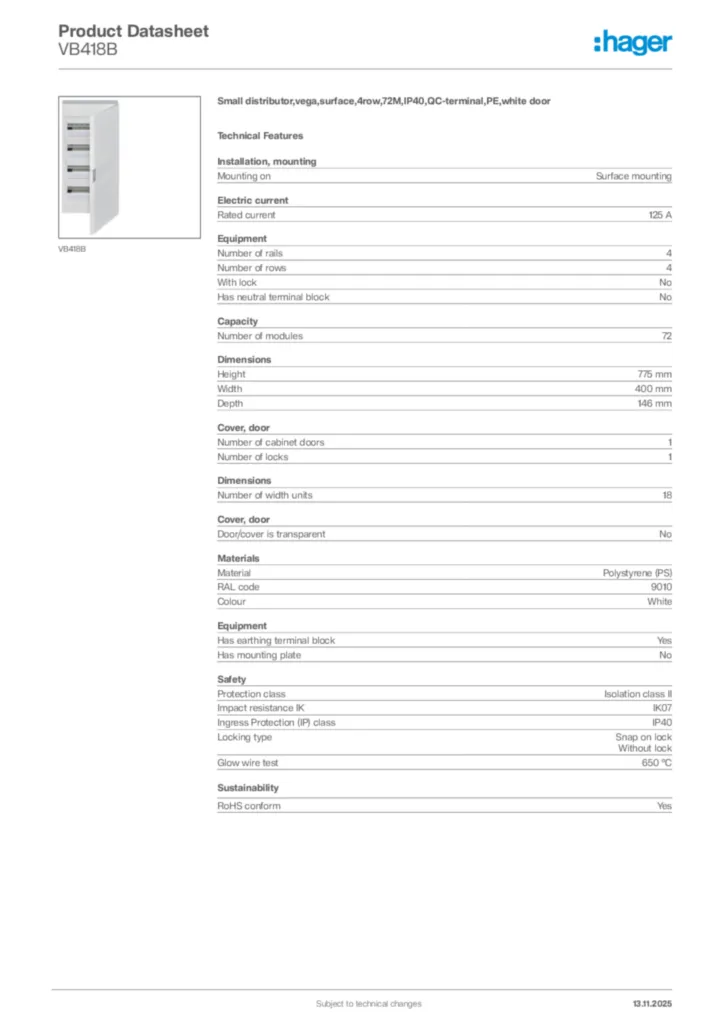

    • Product datasheet

      Image Hager Product data sheet VB418B | Hager Africa

      Hager Product data sheet VB418B

      Small distributor,vega,surface,4row,72M,IP40,QC-terminal,PE,white door

      PDF

    • Installation manual

      Image Installation manual International 2023-06-29 | Hager Africa

      Installation manual International 2023-06-29

      PDF
      14,83 MB

    • Product certificate

      Image Product certificate International 2024-03-19 | Hager Africa

      Product certificate International 2024-03-19

      PDF
      3,01 MB
      Image Product certificate en-GB, fr-FR 2019-01-16 | Hager Africa

      Product certificate en-GB, fr-FR 2019-01-16

      PDF
      925,70 kB
      Image Product certificate en-GB, fr-FR 2019-01-16 | Hager Africa

      Product certificate en-GB, fr-FR 2019-01-16

      PDF
      931,80 kB

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2022-02-22

      PDF
      224,79 kB
      Image Declaration of conformity International 2023-09-13 | Hager Africa

      Declaration of conformity International 2023-09-13

      PDF
      321,32 kB
