Module 1 output 16A flush mounted KNX TRB201
EAN
3250615989314
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Connectivity
-
Radio protocolKNX Radio
-
Receiver category2
-
With bus system KNXNo
-
With bus system KNX radioYes
Settings
-
Supported configuration modeETS, easy, quicklink
Dimensions
-
Height30 mm
-
Built-in depth35 mm
Materials
-
ColourLight grey
Equipment
-
Radio frequency bidirectionalYes
-
With switch for manual switchNo
Electric current
-
Rated current16 A
-
Switching current16 A
Frequency
-
Frequency50 - 60 Hz
-
Radio reception frequency868.30 - 868.30 MHz
Power
-
Output power3680 W
-
230 V incandescent and halogen lamp2300 W
Voltage
-
Operating voltage230 - 230 V
-
Rated operational voltage Ue230 - 230 V
-
System supply voltage230 V AC
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature0 - 45 °C
Connection
-
Cross-section rigid conductor2.5 mm²
-
Cross-section flexible conductor2.5 mm²
Texts
-
FunctionEasy additional functions: +6 scenes, repeater function, Reset function (to factory setting)
-
Installation modeFor installation behind flush-mounted inserts
-
Type of connectionWith screw-in lift terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

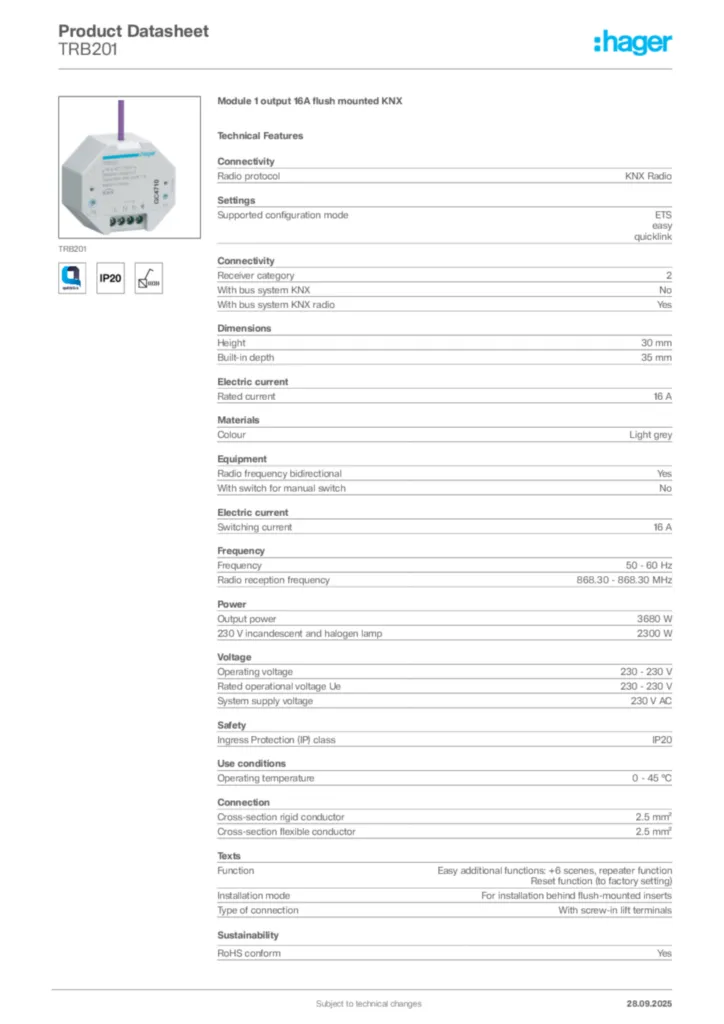

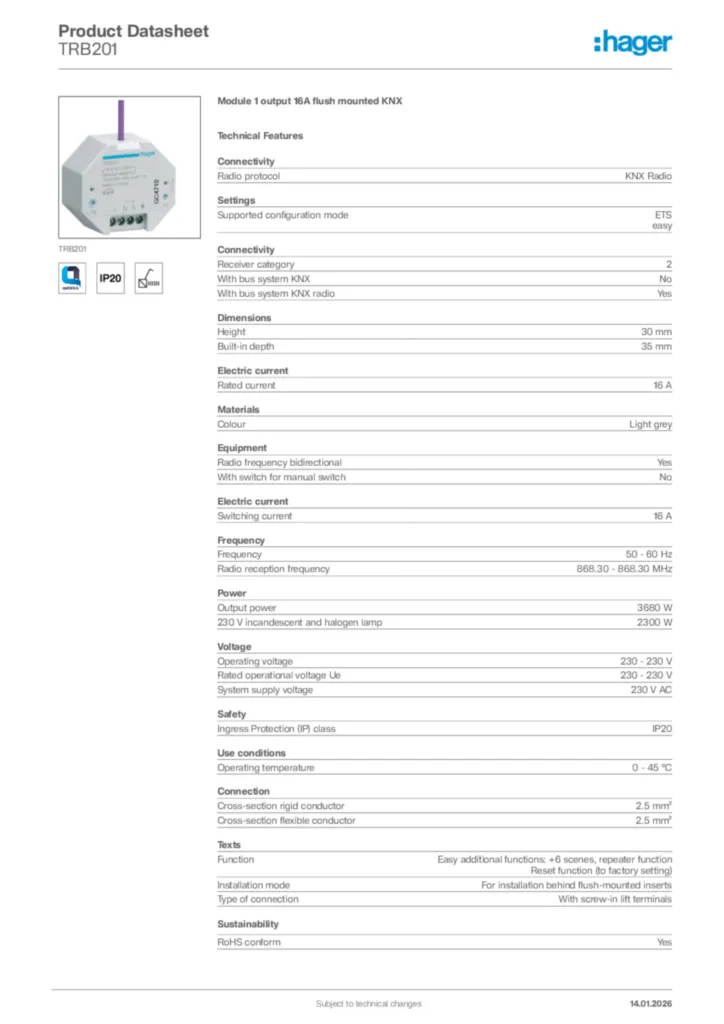

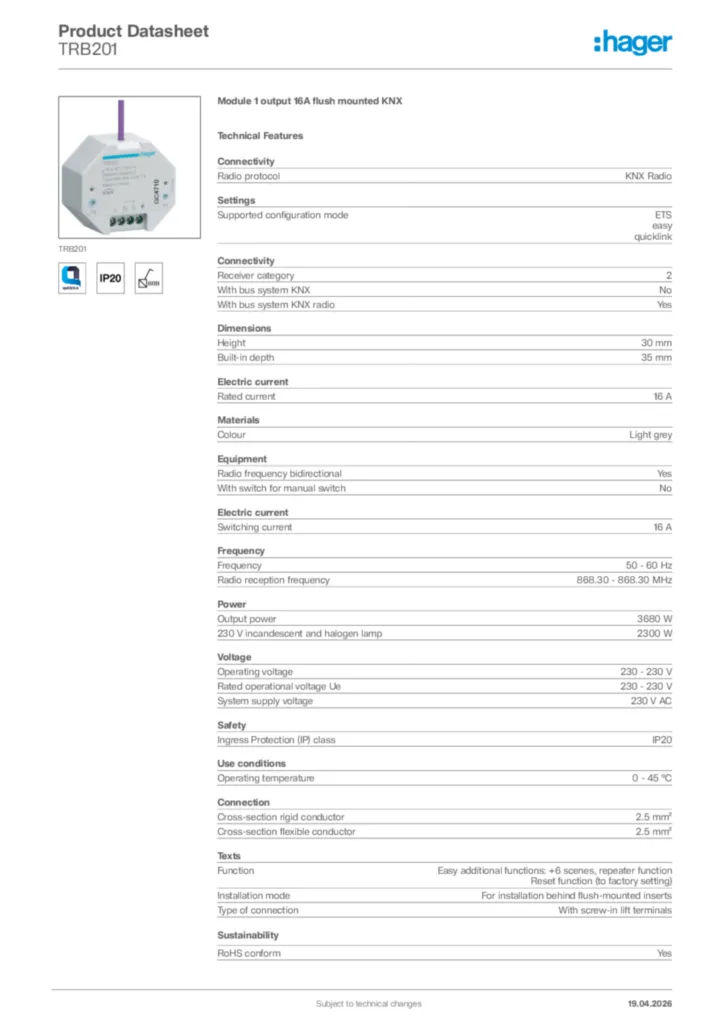

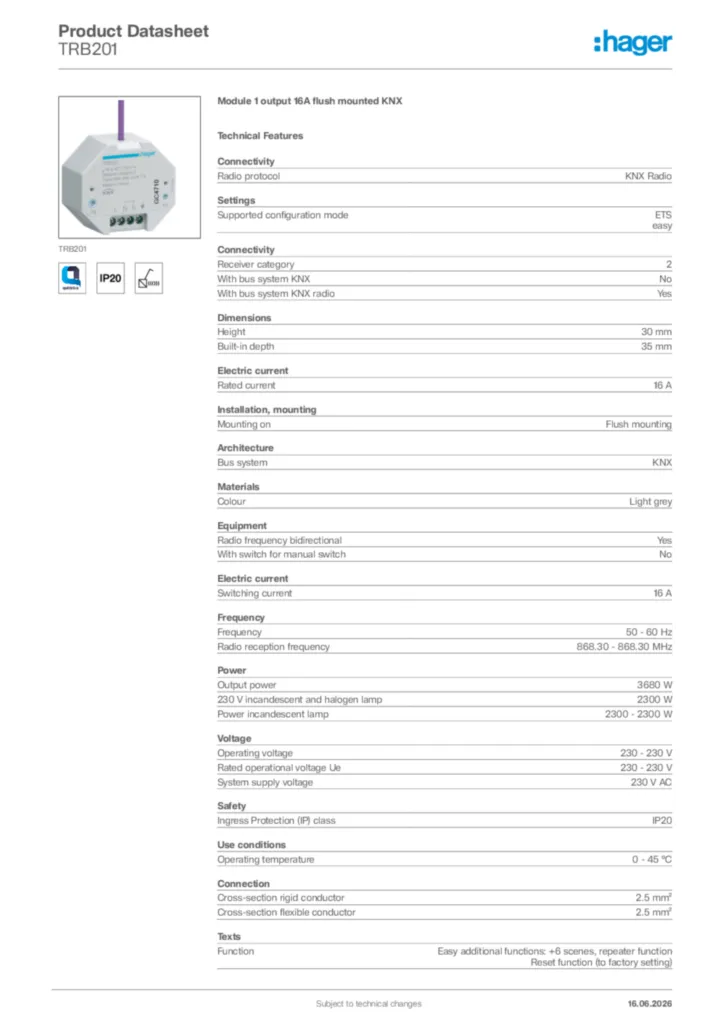

Product datasheet
