SPD T2 2P pluggable 40kA photovoltaic SPV340

Accessories
Technical properties
Environmental value
Documentations
More products

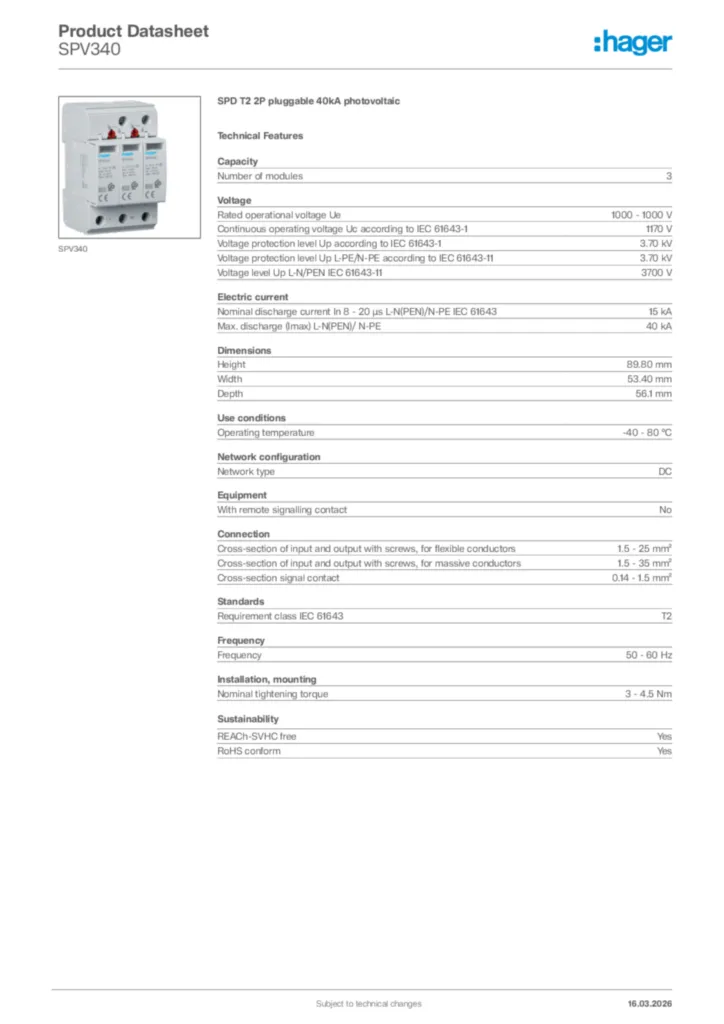

Download the data sheet

Complete your system

Surge protection device for power supply systems 1 products available

Technical properties

Number of modules

3

Rated operational voltage Ue

1000 - 1000 V
Continuous operating voltage Uc according to IEC 61643-1

1170 V
Voltage protection level Up according to IEC 61643-1

3.70 kV
Voltage protection level Up L-PE/N-PE according to IEC 61643-11

3.70 kV
Voltage level Up L-N/PEN IEC 61643-11

3700 V
Type voltage supply

DC

Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 61643

15 kA
Max. discharge (Imax) L-N(PEN)/ N-PE

40 kA

Height

89.80 mm
Width

53.40 mm
Depth

56.1 mm

Operating temperature

-40 - 80 °C

Network type

DC

With remote signalling contact

No

Cross-section of input and output with screws, for flexible conductors

1.5 - 25 mm²
Cross-section of input and output with screws, for massive conductors

1.5 - 35 mm²
Cross-section signal contact

0.14 - 1.5 mm²

Requirement class IEC 61643

T2

Frequency

50 - 60 Hz

Nominal tightening torque

3 - 4.5 Nm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
