The Hager N-PE Type 2 surge protection cartridge safeguards TN and TT installations by clamping transient overvoltages between neutral and earth. Rated Uc 260 V, In 20 kA, Imax 40 kA with Up 1.5 kV for robust protection on 240-415 V, 50-60 Hz networks. Compact 1‑module (17.5 mm) design with screw terminals 1.5-25/35 mm², 3 Nm, and -40…80 °C operation, ideal for residential and commercial panels.

EAN

3250615515353

Packaging

1 Piece

Surge Protection Device (SPD)

Surge protector cartridge L-N 275V In20kA Imax40kA T2 1 Module SPB040N

Technical properties
Environmental value
Documentations
More products

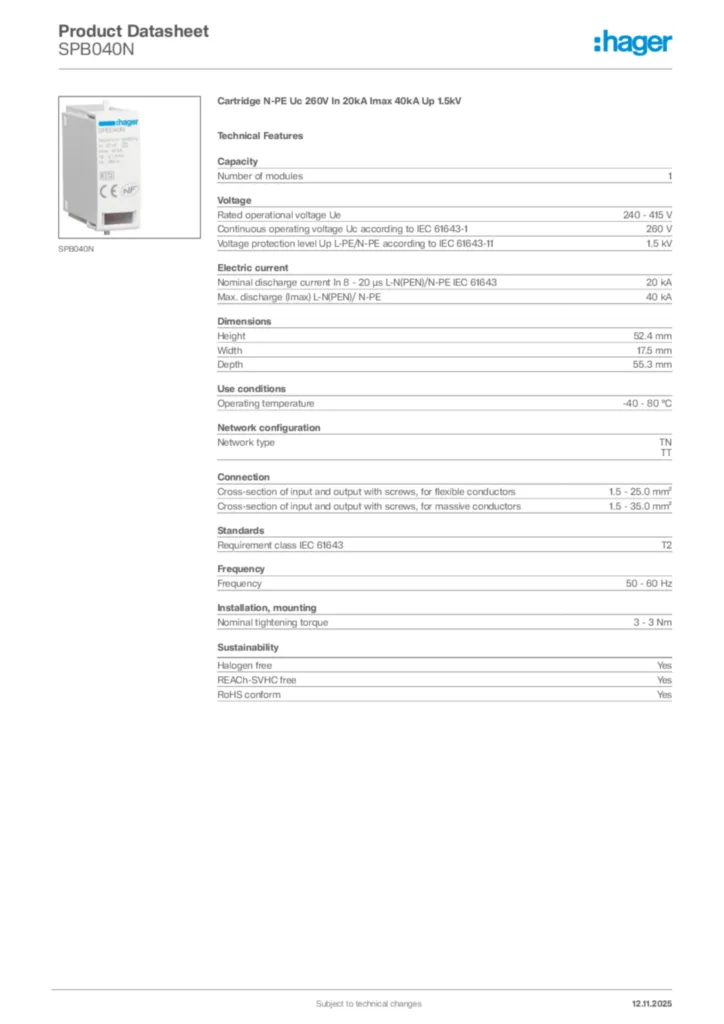

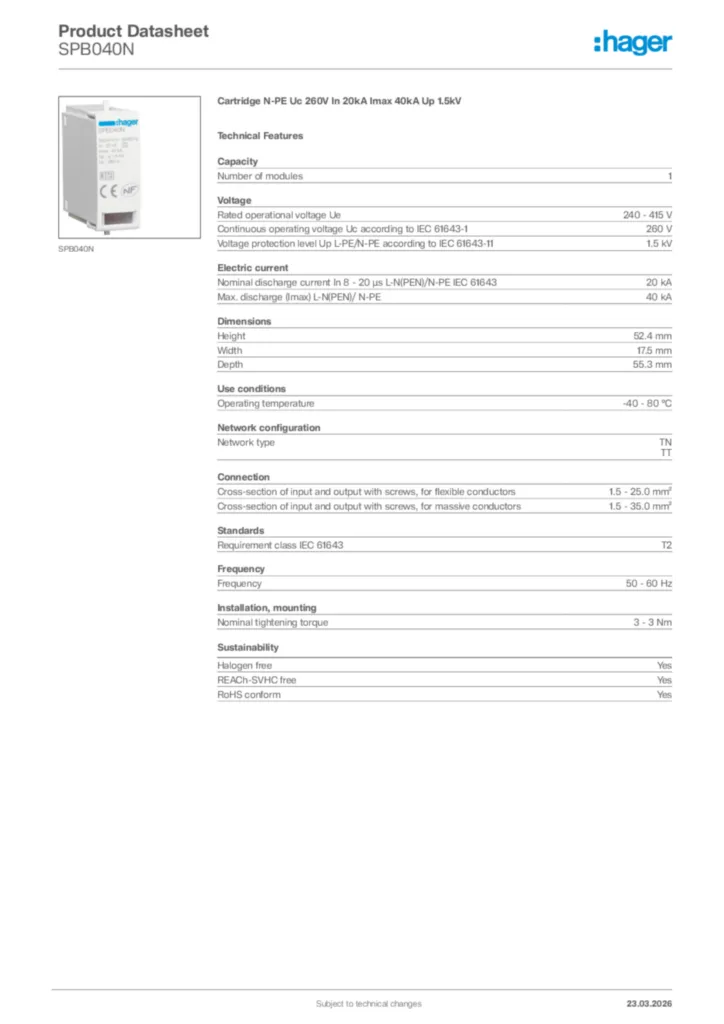

Download the data sheet

Technical properties

Number of modules

1

Rated operational voltage Ue

240 - 415 V
Continuous operating voltage Uc according to IEC 61643-1

260 V
Voltage protection level Up L-PE/N-PE according to IEC 61643-11

1.5 kV

Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 61643

20 kA
Max. discharge (Imax) L-N(PEN)/ N-PE

40 kA

Height

52.4 mm
Width

17.5 mm
Depth

55.3 mm

Operating temperature

-40 - 80 °C

Network type

TN, TT

Cross-section of input and output with screws, for flexible conductors

1.5 - 25.0 mm²
Cross-section of input and output with screws, for massive conductors

1.5 - 35.0 mm²

Requirement class IEC 61643

T2

Frequency

50 - 60 Hz

Nominal tightening torque

3 - 3 Nm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
