The Hager Type 2 L-N surge protection cartridge protects installations from transient overvoltages. For 240-415 V AC, it features Uc 305 V, In 20 kA (8/20 µs) and Imax 65 kA with a low Up of 1.45 kV for effective clamping. Compact 1-module (17.5 mm) DIN-rail design, 3 Nm terminals. Suits TN-C, TN-S and TT networks, 50-60 Hz, -40 to 80°C. Ideal for residential and commercial panels protecting sensitive equipment.

EAN

3250615515377

Packaging

1 Piece

Surge Protection Device (SPD)

Surge protector cartridge N-PE T1+T2 50kA 264V Up 1.7kV 1 module SPB065R

Technical properties
Environmental value
Documentations
More products

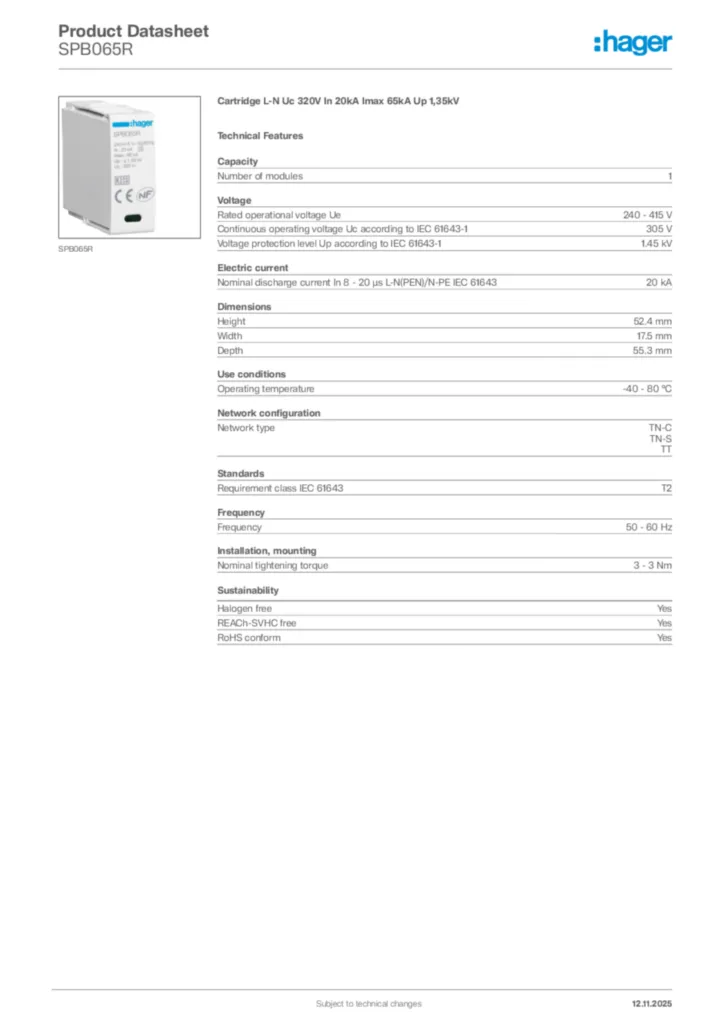

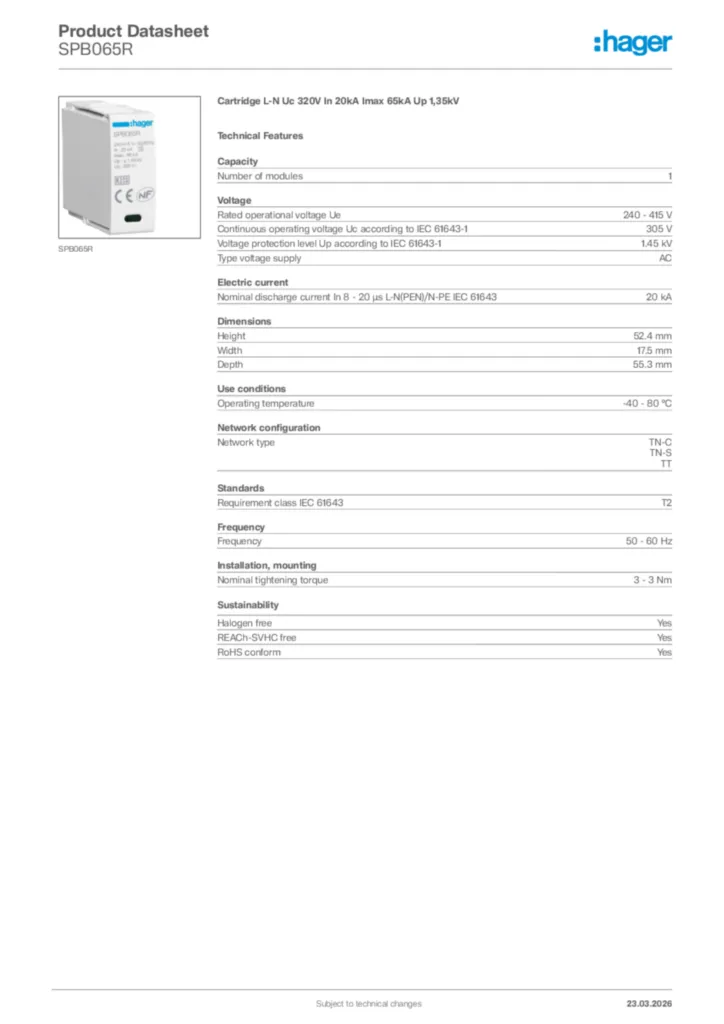

Download the data sheet

Technical properties

Number of modules

1

Rated operational voltage Ue

240 - 415 V
Continuous operating voltage Uc according to IEC 61643-1

305 V
Voltage protection level Up according to IEC 61643-1

1.45 kV
Type voltage supply

AC

Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 61643

20 kA

Height

52.4 mm
Width

17.5 mm
Depth

55.3 mm

Operating temperature

-40 - 80 °C

Network type

TN-C, TN-S, TT

Requirement class IEC 61643

T2

Frequency

50 - 60 Hz

Nominal tightening torque

3 - 3 Nm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
