The Hager 2P Type 2 SPD for TN-S/TT networks protects installations from transient overvoltages. Ue 240-415 V, Uc 320 V, In 20 kA, Imax 65 kA, with low Up 1.45 kV (1.70 kV L/N‑PE) to safeguard sensitive equipment. Compact 2‑module unit for 50-60 Hz, -40 to 80 °C, accepts 1.5-35 mm² conductors. Remote signalling contact for monitoring. Use with up to 160 A backup fuse. Compliant with IEC 61643‑11 T2.

EAN

3250615515490

Packaging

1 Piece

Surge Protection Device (SPD)

SPD T2 Cartridge Imax 40kA Uc 440V IT/TN/TT 1 Module SPB265R

Accessories
Technical properties
Environmental value
Documentations
More products

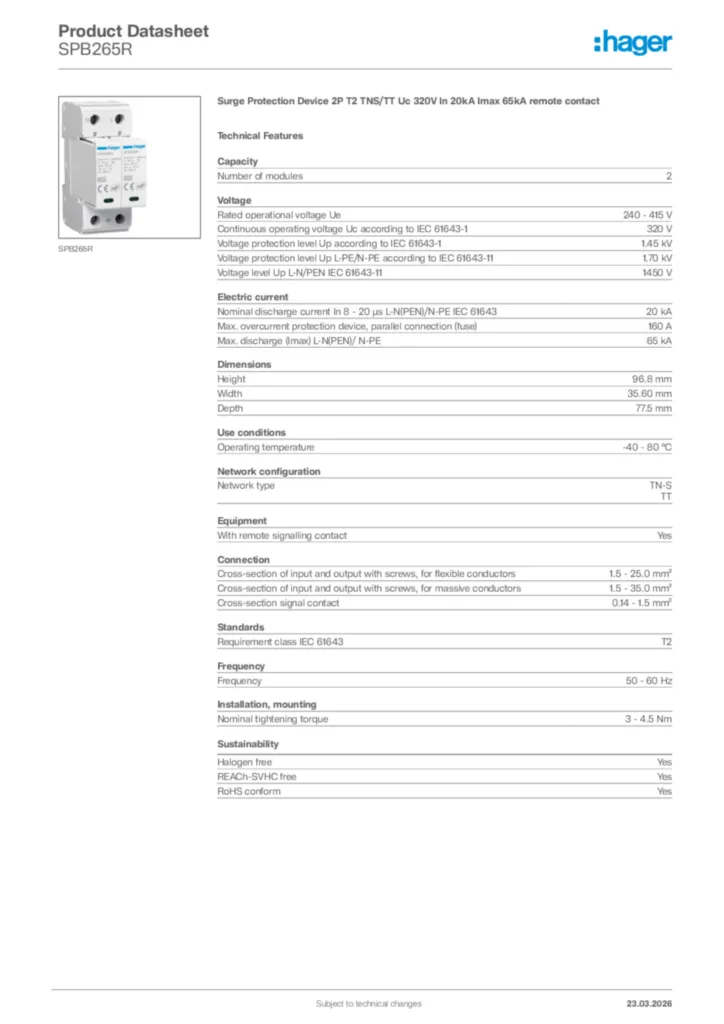

Download the data sheet

Complete your system

Surge protection device for power supply systems 2 products available

Technical properties

Number of modules

2

Rated operational voltage Ue

240 - 415 V
Continuous operating voltage Uc according to IEC 61643-1

320 V
Voltage protection level Up according to IEC 61643-1

1.45 kV
Voltage protection level Up L-PE/N-PE according to IEC 61643-11

1.70 kV
Voltage level Up L-N/PEN IEC 61643-11

1450 V

Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 61643

20 kA
Max. overcurrent protection device, parallel connection (fuse)

160 A
Max. discharge (Imax) L-N(PEN)/ N-PE

65 kA

Height

96.8 mm
Width

35.60 mm
Depth

77.5 mm

Operating temperature

-40 - 80 °C

Network type

TN-S, TT

With remote signalling contact

Yes

Cross-section of input and output with screws, for flexible conductors

1.5 - 25.0 mm²
Cross-section of input and output with screws, for massive conductors

1.5 - 35.0 mm²
Cross-section signal contact

0.14 - 1.5 mm²

Requirement class IEC 61643

T2

Frequency

50 - 60 Hz

Nominal tightening torque

3 - 4.5 Nm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
