The Hager N-PE surge protection cartridge (Class T1/T2) protects TN-S and TT systems by safely diverting lightning and switching surges between neutral and PE. Ue 240-415 V AC, Uc 264 V, In 50 kA, Imax 65 kA, Up ~1.7 kV. Compact 1-module (17.5 mm) for panel space savings, -40 to 80°C operation. Screw terminals accept 1.5-35 mm² conductors for fast, reliable DIN-rail installation. Ideal for residential and commercial use.

EAN

3250615515360

Packaging

1 Piece

Surge Protection Device (SPD)

SPD Cartridge N-PE Type 2 Uc 260V In 20kA Imax 40kA Up 1.5kV 1 Module SPB065N

Technical properties
Environmental value
Documentations
More products

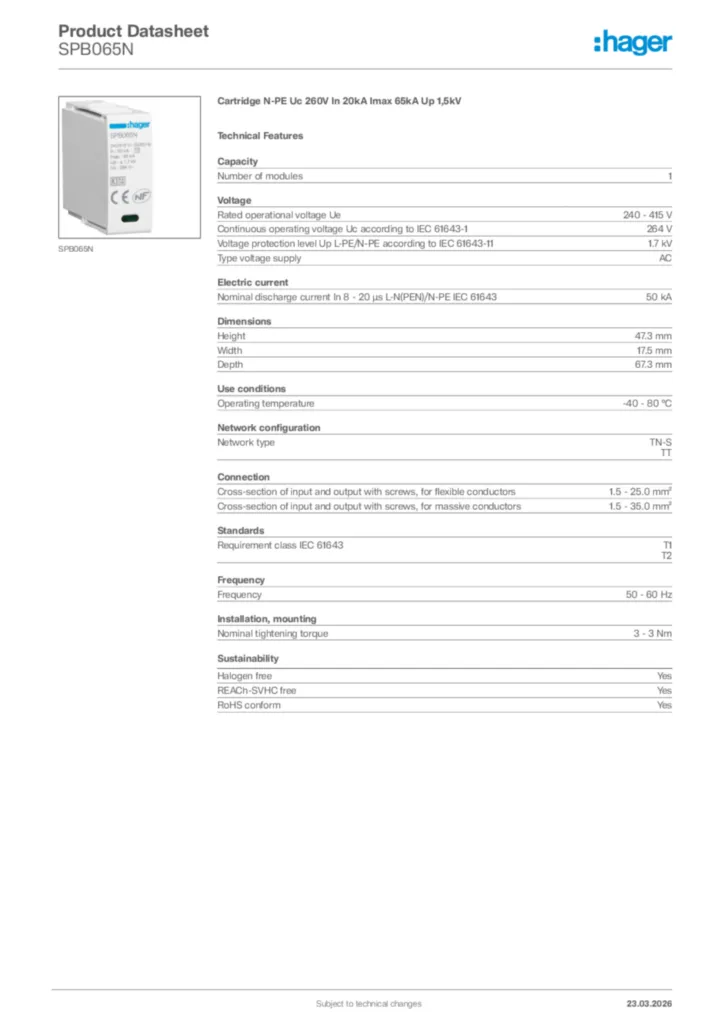

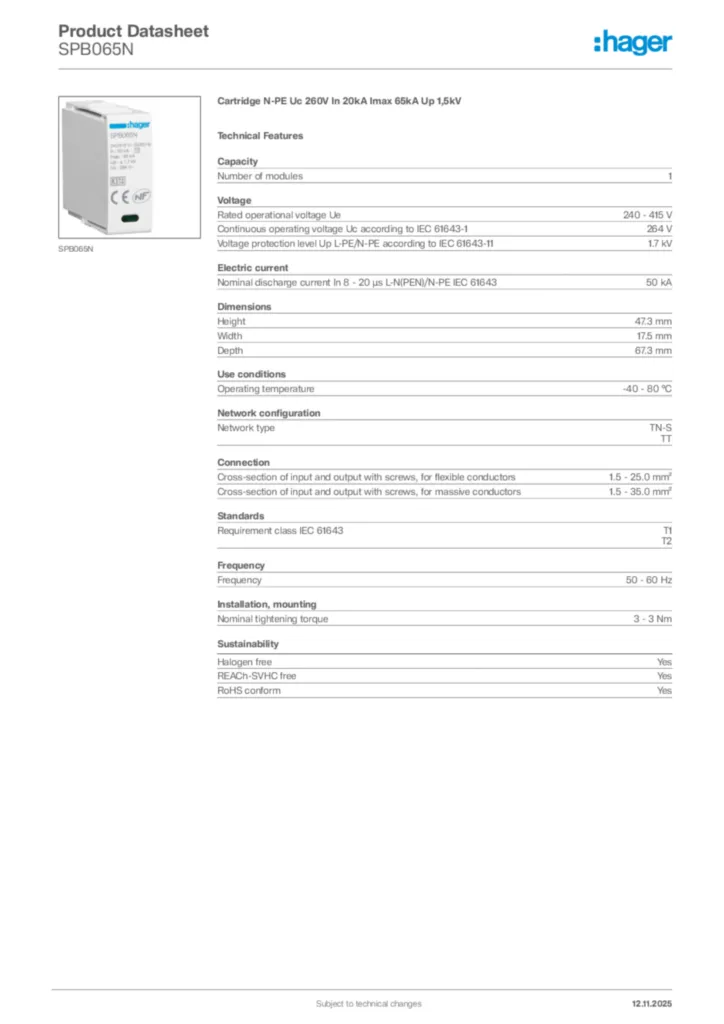

Download the data sheet

Technical properties

Number of modules

1

Rated operational voltage Ue

240 - 415 V
Continuous operating voltage Uc according to IEC 61643-1

264 V
Voltage protection level Up L-PE/N-PE according to IEC 61643-11

1.7 kV
Type voltage supply

AC

Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 61643

50 kA

Height

47.3 mm
Width

17.5 mm
Depth

67.3 mm

Operating temperature

-40 - 80 °C

Network type

TN-S, TT

Cross-section of input and output with screws, for flexible conductors

1.5 - 25.0 mm²
Cross-section of input and output with screws, for massive conductors

1.5 - 35.0 mm²

Requirement class IEC 61643

T2

Frequency

50 - 60 Hz

Nominal tightening torque

3 - 3 Nm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
