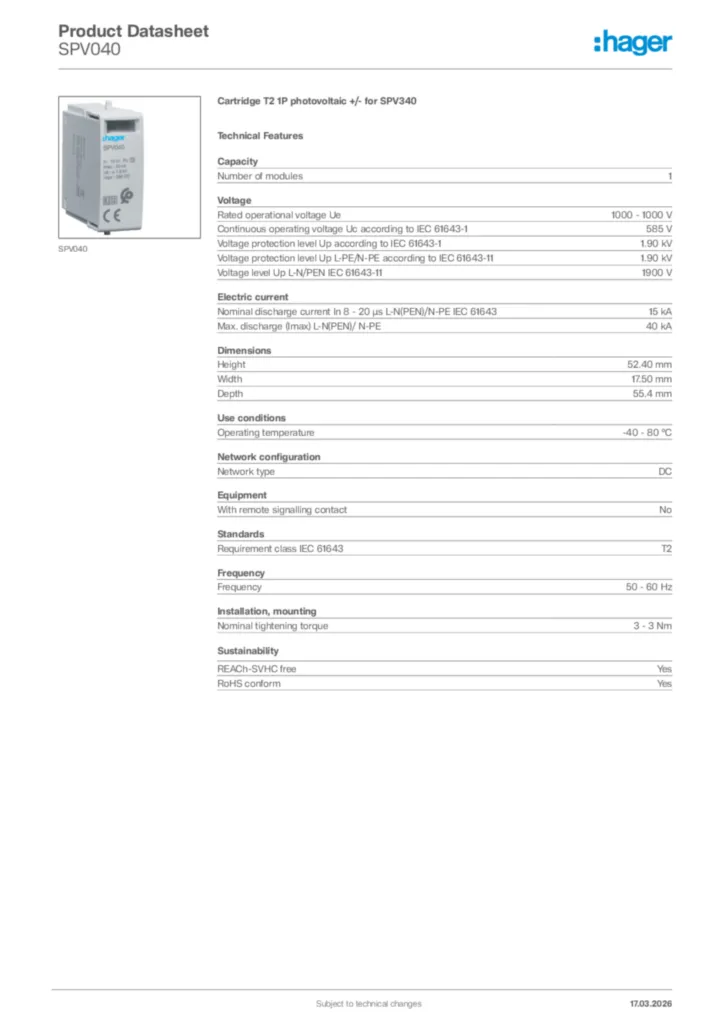

Cartridge T2 1P photovoltaic +/- for SPV340 SPV040
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 1 products available
Technical properties
Capacity
-
Number of modules1
Voltage
-
Rated operational voltage Ue1000 - 1000 V
-
Continuous operating voltage Uc according to IEC 61643-1585 V
-
Voltage protection level Up according to IEC 61643-11.90 kV
-
Voltage protection level Up L-PE/N-PE according to IEC 61643-111.90 kV
-
Voltage level Up L-N/PEN IEC 61643-111900 V
-
Type voltage supplyDC
Electric current
-
Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 6164315 kA
-
Max. discharge (Imax) L-N(PEN)/ N-PE40 kA
Dimensions
-
Height52.40 mm
-
Width17.50 mm
-
Depth55.4 mm
Use conditions
-
Operating temperature-40 - 80 °C
Network configuration
-
Network typeDC
Equipment
-
With remote signalling contactNo
Standards
-
Requirement class IEC 61643T2
Frequency
-
Frequency50 - 60 Hz
Installation, mounting
-
Nominal tightening torque3 - 3 Nm
