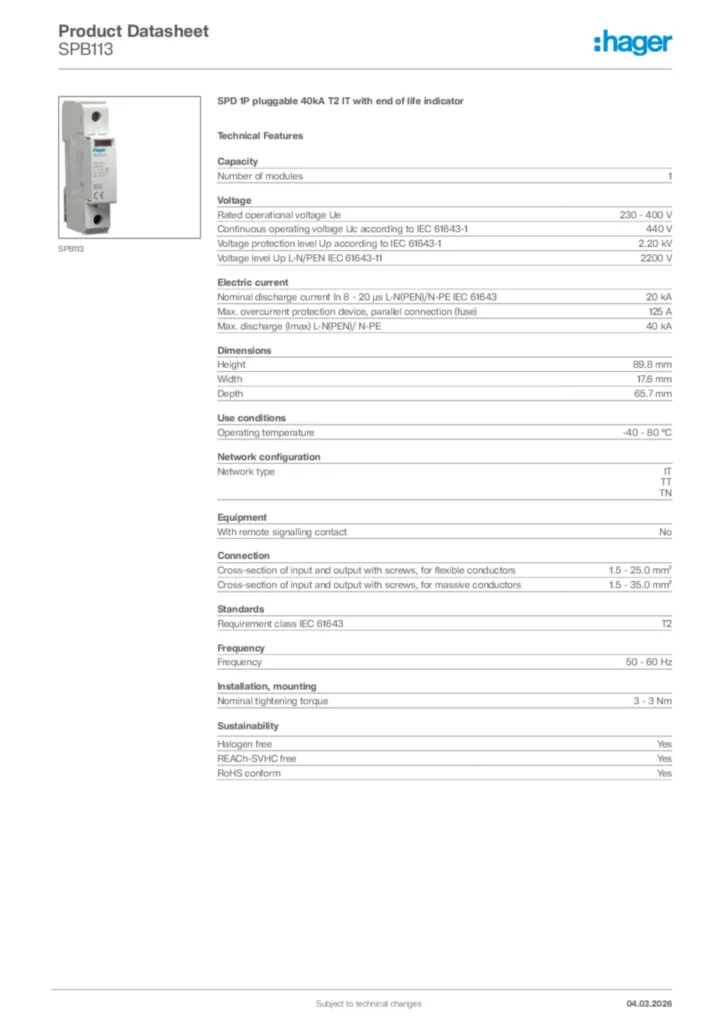

SPD 1P pluggable 40kA T2 IT with end of life indicator SPB113
EAN
3250615515209
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Surge protection device for power supply systems 1 products available
Technical properties
Capacity
-
Number of modules1
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Continuous operating voltage Uc according to IEC 61643-1440 V
-
Voltage protection level Up according to IEC 61643-12.20 kV
-
Voltage level Up L-N/PEN IEC 61643-112200 V
Electric current
-
Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 6164320 kA
-
Max. overcurrent protection device, parallel connection (fuse)125 A
-
Max. discharge (Imax) L-N(PEN)/ N-PE40 kA
Dimensions
-
Height89.8 mm
-
Width17.6 mm
-
Depth65.7 mm
Use conditions
-
Operating temperature-40 - 80 °C
Network configuration
-
Network typeIT, TT, TN
Equipment
-
With remote signalling contactNo
Connection
-
Cross-section of input and output with screws, for flexible conductors1.5 - 25.0 mm²
-
Cross-section of input and output with screws, for massive conductors1.5 - 35.0 mm²
Standards
-
Requirement class IEC 61643T2
Frequency
-
Frequency50 - 60 Hz
Installation, mounting
-
Nominal tightening torque3 - 3 Nm
