Cartridge 40kA 440V for SPD T2 IT SPB013
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 1 products available
Technical properties
Capacity
-
Number of modules1
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Continuous operating voltage Uc according to IEC 61643-1440 V
-
Voltage protection level Up according to IEC 61643-11.35 kV
-
Voltage protection level Up L-PE/N-PE according to IEC 61643-111.50 kV
-
Voltage level Up L-N/PEN IEC 61643-111350 V
-
Type voltage supplyAC
Electric current
-
Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 6164320 kA
-
Max. overcurrent protection device, parallel connection (fuse)125 A
-
Max. discharge (Imax) L-N(PEN)/ N-PE40 kA
Dimensions
-
Height52.4 mm
-
Width17.5 mm
-
Depth55.3 mm
Use conditions
-
Operating temperature-40 - 80 °C
Network configuration
-
Network typeIT, TN, TT
Standards
-
Requirement class IEC 61643T2
Frequency
-
Frequency50 - 60 Hz
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

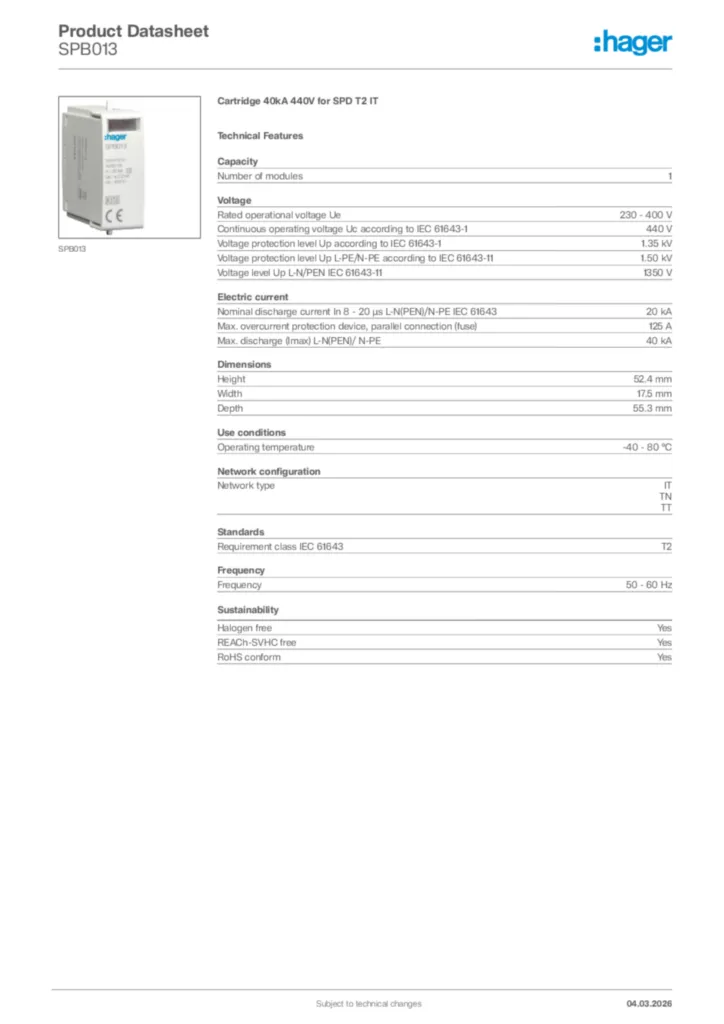

Hager Product data sheet SPB013
Cartridge 40kA 440V for SPD T2 IT
PDF
