Combined SPD T1+T2 3P Uc 350V Iimp 25kA In 25kA Up 1.5kV TCN with remote contact SPA800
EAN
3250615514837
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Modular phase busbar 1 products available
Technical properties
Electric current
-
Max. discharge (Imax) L-N(PEN)/ N-PE50 kA
-
Max. overcurrent protection device, parallel connection (fuse)315 A
-
Lightning impulse current Iimp (10/350 µs) IEC 61643 L-N(PEN)/ N-PE25 kA
Network configuration
-
Network typeTN-C
Connectivity
-
Type of connectionScrew terminal
Equipment
-
With remote signalling contactYes
Capacity
-
Number of modules6
Voltage
-
Voltage protection level Up according to IEC 61643-11.50 kV
-
Continuous operating voltage Uc according to IEC 61643-1350 V
-
Rated operational voltage Ue230 - 400 V
-
Voltage level Up L-N/PEN IEC 61643-111.5 kV
Architecture
-
Number of poles3
Use conditions
-
Operating temperature-40 - 80 °C
Dimensions
-
Height95.20 mm
-
Width106.80 mm
-
Depth67 mm
Controls and indicators
-
With indicator lampYes
Standards
-
Requirement class IEC 61643T1, T2
Installation, mounting
-
Nominal tightening torque4.50 - 4.50 Nm
Connection
-
Cross-section of input and output with screws, for flexible conductors2.5 - 35.0 mm²
-
Cross-section of input and output with screws, for massive conductors2.5 - 35.0 mm²
-
Cross-section signal contact0.14 - 1.5 mm²
Frequency
-
Frequency50 - 60 Hz
Safety
-
Ingress Protection (IP) classIP20
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

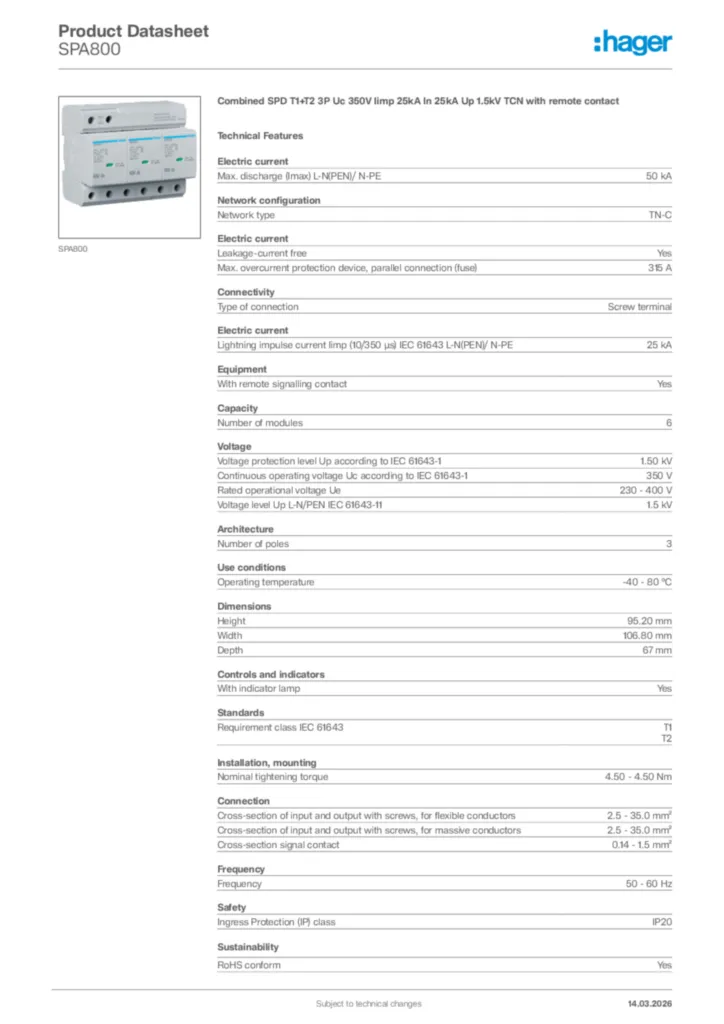

Product datasheet
