SPD T1+T2+T3 2P 12.5kA with remote contact TNS/TT SPA212

Technical properties
Environmental value
Documentations
More products

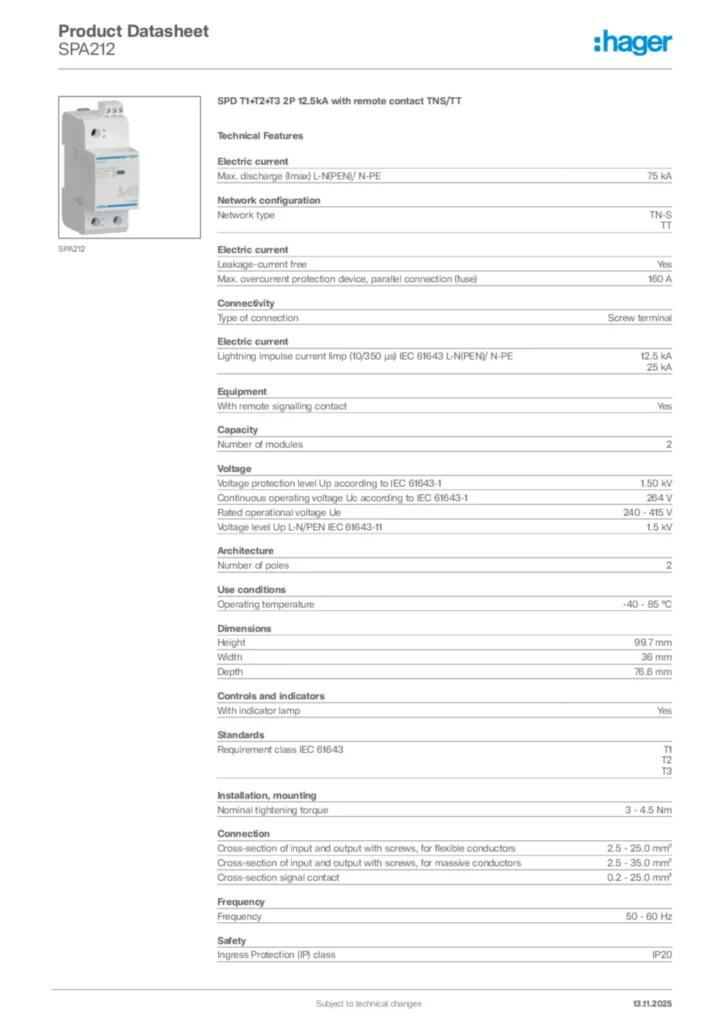

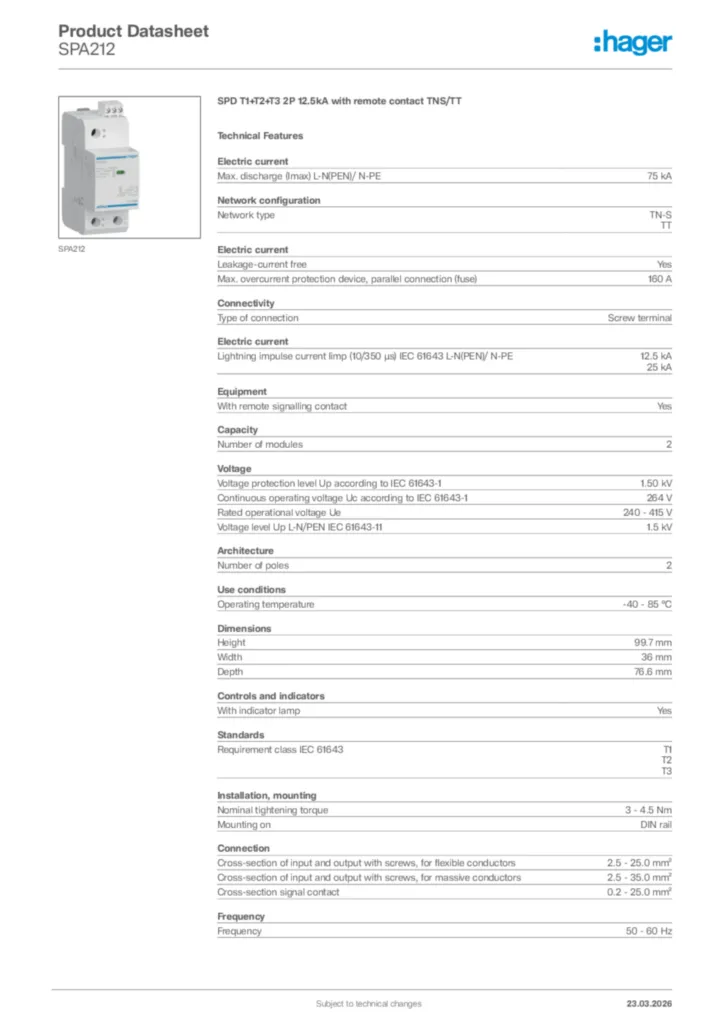

Download the data sheet

Technical properties

Max. discharge (Imax) L-N(PEN)/ N-PE

75 kA
Leakage-current free

Yes
Max. overcurrent protection device, parallel connection (fuse)

160 A
Lightning impulse current Iimp (10/350 µs) IEC 61643 L-N(PEN)/ N-PE

12.5 kA, 25 kA

Network type

TN-S, TT

Type of connection

Screw terminal

With remote signalling contact

Yes

Number of modules

2

Voltage protection level Up according to IEC 61643-1

1.50 kV
Continuous operating voltage Uc according to IEC 61643-1

264 V
Rated operational voltage Ue

240 - 415 V
Voltage level Up L-N/PEN IEC 61643-11

1.5 kV

Number of poles

2

Operating temperature

-40 - 85 °C

Height

99.7 mm
Width

36 mm
Depth

76.6 mm

With indicator lamp

Yes

Requirement class IEC 61643

T1, T2, T3

Nominal tightening torque

3 - 4.5 Nm

Cross-section of input and output with screws, for flexible conductors

2.5 - 25.0 mm²
Cross-section of input and output with screws, for massive conductors

2.5 - 35.0 mm²
Cross-section signal contact

0.2 - 25.0 mm²

Frequency

50 - 60 Hz

Ingress Protection (IP) class

IP20

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
