The Hager MCB 3P D-25A 3M provides robust three-phase circuit protection for loads with high inrush currents (motors, pumps, HVAC). Rated 25A, D-curve, 10kA Icn (IEC 60898-1) and 15kA Icu at 400V AC (IEC 60947-2), it suits demanding commercial/industrial panels. Compact 3 modules, 400V AC, Ui 500V, Uimp 6kV. Screw/biconnect terminals (1-35 mm²), IP20, 50-60 Hz. 360° mounting. 20,000 mechanical/4,000 electrical operations.

EAN

3250614619267

Packaging

Miniature circuit breakers (MCB and MCB Multipolar)

MCB 2P 10A Curve D 10kA Icn / 15kA Icu 2 Modules NDN325A

Accessories
Technical properties
Environmental value
Documentations
More products

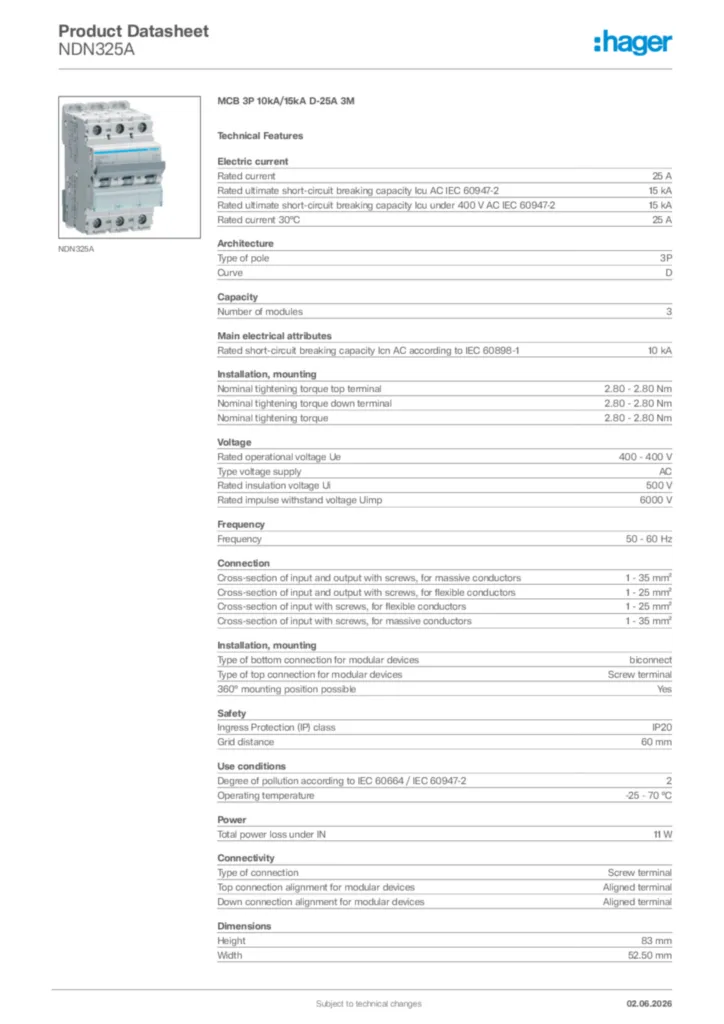

Download the data sheet

Complete your system

Terminal cover 1 products available
AOB type A-HI 1 products available
Modular phase busbar 3 products available
AOB type AC 3 products available
Protective cap/strip for phase busbar 1 products available

Technical properties

Rated current IN

25 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

20 kA
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-2

15 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

15 kA
Rated current 30°C

25 A
Rated service breaking capacity Ics AC according to IEC 60898-1

7.50 kA

Type of pole

3P
Curve

D

Number of modules

3

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

10 kA

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

400 - 400 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²

Ingress Protection (IP) class

IP20
Grid distance

60 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Operating temperature

-25 - 70 °C

Power dissipation at IN

11 W

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

83 mm
Width

52.50 mm
Depth

70 mm
