MCB 1P+N 4.5/6kA C-20A 1M MJT720

Name: MJT720
Brand: Hager
SKU: MJT720

EAN

3250614325830

Packaging

Accessories
Technical properties
Environmental value
Documentations
More products

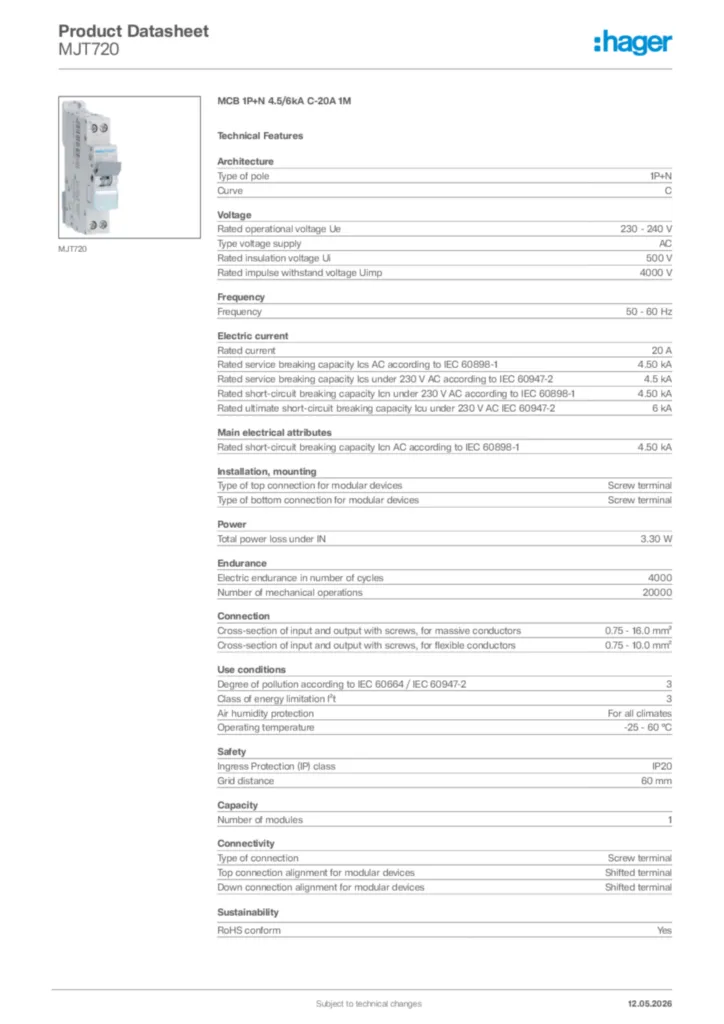

Download the data sheet

Complete your system

AOB type AC 3 products available

Technical properties

Type of pole

1P+N
Curve

C

Rated operational voltage Ue

230 - 240 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V

Frequency

50 - 60 Hz

Rated current

20 A
Rated service breaking capacity Ics AC according to IEC 60898-1

4.50 kA
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

4.50 kA
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2

6 kA

Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

Screw terminal

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

4.50 kA

Total power loss under IN

3.30 W

Electric endurance in number of cycles

4000
Number of mechanical operations

20000

Degree of pollution according to IEC 60664 / IEC 60947-2

3
Class of energy limitation I²t

3
Air humidity protection

For all climates
Operating temperature

-25 - 60 °C

Ingress Protection (IP) class

IP20
Grid distance

60 mm

Number of modules

1

Type of connection

Screw terminal
Top connection alignment for modular devices

Shifted terminal
Down connection alignment for modular devices

Shifted terminal

Cross-section of input and output with screws, for massive conductors

0.75 - 16.0 mm²
Cross-section of input and output with screws, for flexible conductors

0.75 - 10.0 mm²

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
