The Hager halogen‑free endcap for LF/LFF trunking (40/60 x 110 mm) provides a clean, safe termination and cable protection. Made of ABS in stone grey (RAL7030), it offers IK07 impact resistance and operates from -5 to 60°C. Overlapping design ensures neat closure, with quick snap‑on or screw mounting. Compatible with LFF 40x110 and 60x110 runs, it speeds installation and improves finish.

EAN

4012740022958

Packaging

1 Piece

Halogen-free T-piece for LF trunking 60x57mm ABS IK07 RAL9016 Traffic White LFF6011067030

Technical properties
Environmental value
Documentations
More products

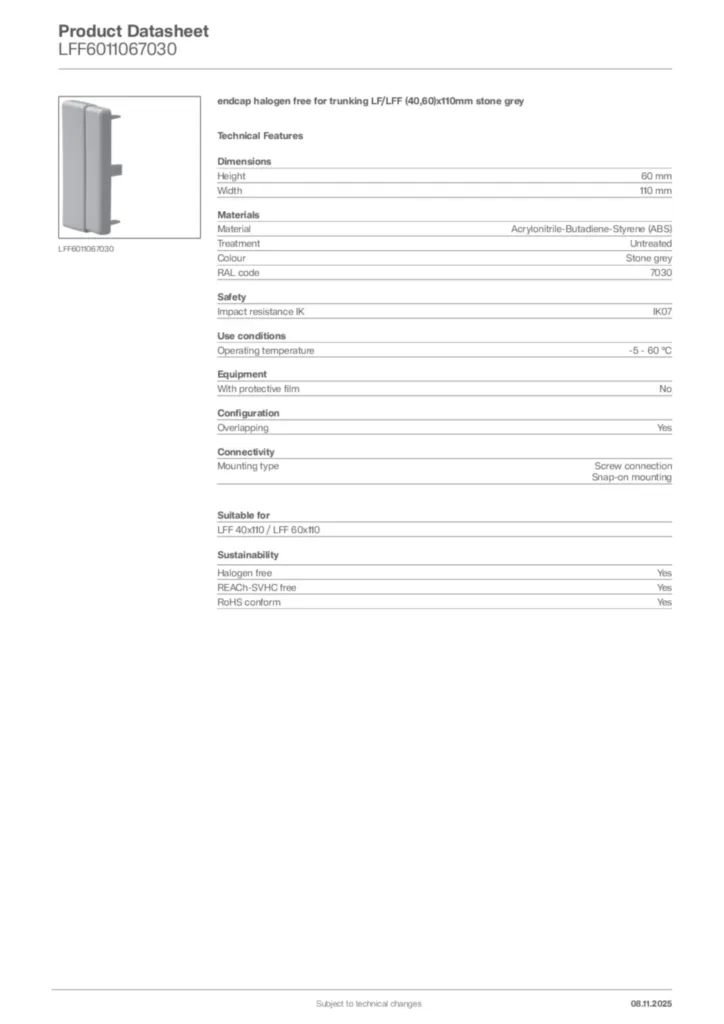

Download the data sheet

Technical properties

Height

60 mm
Width

110 mm

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

Yes
With antibacterial treatment

No

Mounting type

Screw connection, Snap-on mounting

Suitable for functional integrity according to DIN4102-12

No

Related Series

LFF 40x110, LFF 60x110

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
