The Hager flat angle overlapping halogen-free accessory for LF/LFF 60x110mm trunking routes cables cleanly through flat bends. Adjustable 83-97° for precise alignment, it’s moulded ABS (IK07) in stone grey RAL7030 for durable, discreet installs. Size 60x110mm (a=148mm). Operates -5 to 60°C. Ideal for safe, low-smoke cable management in residential and commercial applications.

EAN

4012740022927

Packaging

1 Piece

External corner halogen free 60x57mm for LF/LFF trunking, click mounting LFF6011057030

Technical properties
Environmental value
Documentations
More products

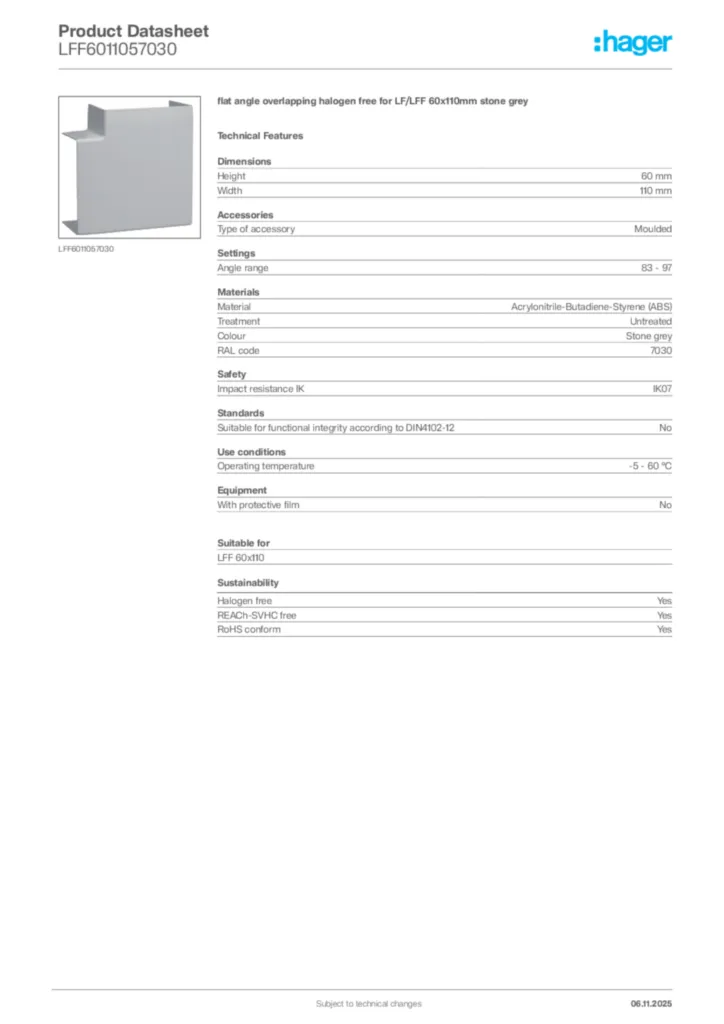

Download the data sheet

Technical properties

Height

60 mm
Width

110 mm
Measurement a

148 mm

Type of accessory

Moulded

Angle range

83 - 97

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

Yes
With antibacterial treatment

No

Symmetrical

Yes

Related Series

LFF 60x110

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
