The Hager flat angle, overlapping, halogen‑free fitting for LF/LFF 60x57 mm trunking creates a neat 90° flat junction while maintaining cable protection. Moulded ABS in traffic white (RAL9016), it offers IK07 impact resistance and operates from -5 to 60°C. The overlapping design hides cuts and tolerances for a clean finish and easy installation, ideal for residential or commercial cable routing.

EAN

4012740013284

Packaging

1 Piece

External corner halogen-free LF/LFF trunking 60x57mm IK07 click mounting LFF6006059016

Technical properties
Environmental value
Documentations
More products

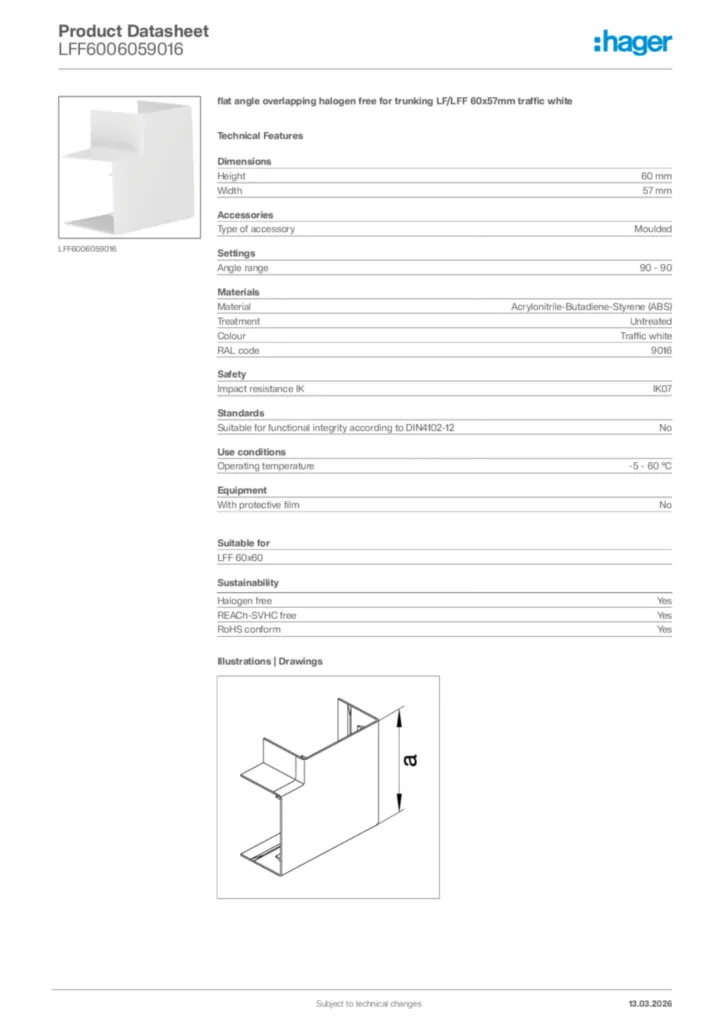

Download the data sheet

Technical properties

Height

60 mm
Width

57 mm
Measurement a

95 mm

Type of accessory

Moulded

Angle range

90 - 90

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Traffic white
RAL code

9016

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

Yes
With antibacterial treatment

No

Symmetrical

Yes

Related Series

LFF 60x60

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
